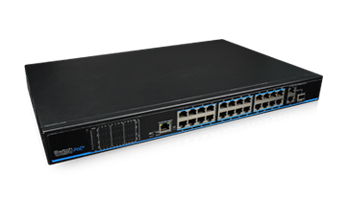

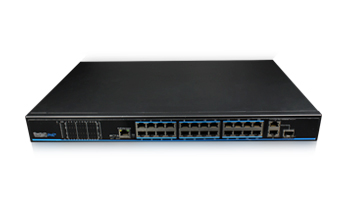

The 24 ports PoE switch is an unmanaged PoE Ethernet switch along with 24 * 10/100Base-TX downlink PoE ports and 2 * 10/100/1000Base-T uplink Ethernet ports featuring 30-watt 802.3at PoE+ as well as 1 additional Gigabit Combo port. The total PoE power budget is up to 390 watts. It supports web-based PoE management and real-time PoE output LED display.The device can be widely used in video security monitoring systems, network projects, etc.
|
Model |
UTP1-SW24-TP420 |
|
Downstream Ports |
24* 10/100Base-TX( PoE) |
|
Uplink Ports |
2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo) |
|
Network Standard |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X |
|
Switching Capacity |
8.8Gbps |
|
Packet Forwarding Rate |
6.55Mpps |
|
Forwarding Modes |
Store and Forward |
|
Packet Buffer |
2.75M |
|
MAC Address Table |
4K |
|
PoE Standard |
802.3af/at(PSE) End-span |
|
One-key CCTV mode |
All the downlink ports can only communicate with uplink ports. Retrain the network storm to 3Mbps. Extend transmission distance of the downlink ports to 250m max. |
|
PoE Line Pair |
1/2(+)，3/6(-) |
|
PoE Output Power |
54V DC , 30 watts max |
|
PoE Budget |
390 watts max |
|
PoE Management |
Via Web( Default IP Address 192.168.1.200) to check, on/off and adjust each port PoE output |
|
Surge Immunity |
6KV Execute: IEC61000-4-5 |
|
ESD Immunity |
6KV Contact discharge |
|
8KV Air discharge |
|
|
Execute: IEC61000-4-2 |
|
|
Input Voltage |
100~240V AC, 50/60Hz |
|
Power Consumption |
＜420W(Including PoE) |
|
Operating Temperature |
-10℃~50℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity(Non-condensing) |
5%-95% |
|
Dimension（L×W×H） |
442mm×207mm×44.5mm |
|
Weight |
2.79kg |
|
Certification |
CE, FCC, ROHS |
|
Designation |
Quantity |
|
UTP1-SW24-TP420 |
1 |
|
AC Power Line |
1 |
|
Mounting brackets |
1 |
|
User Manual |
1 |
