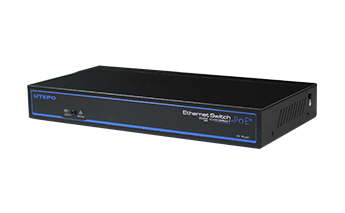

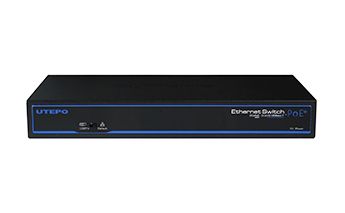

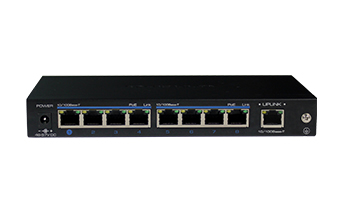

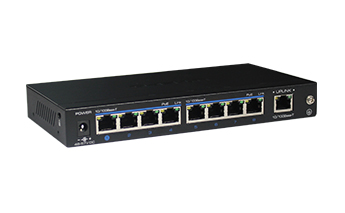

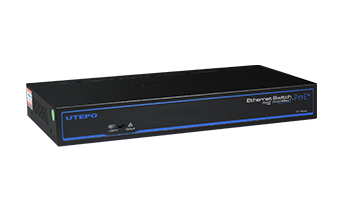

 8 Ports PoE Ethernet Switch

8 Ports PoE Ethernet Switch

UTP3-SW08-TP120
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

8 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet project security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. ESD and surge protection circuit can improve product stability. The product supports one key CCTV model, can achieve VLAN, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.


ADVANTAGES

• Major ports: 1pcs 100Mbps uplink port, 8pcs 100Mbps downlink Ethernet port, every port supports MDI/MDIX.

• Special function: One key CCTV mode; 1~8 downlink ports can only communicate with uplink ports.

• Power input: DC48V~57V.

• Transmission Distance: 0~100m; the furthest transmission distance could reach 250m in CCTV model; Uplink port can reach 100m.

• Standard: Meet IEEE 802.3, IEEE 802.3u, IEEE 802.3 af/at standards.

• PoE use End-Span, the spare cable can be of other use.

• Protection: Excellent anti-thunder, anti-static and anti-interference ability.

• Appearance: Delicate design and easy installation, configure the anti-theft lock hole, guard against theft.

• Operation: Plug and play, no setting required.

Model

UTP3-SW08-TP120

Downstream Ports

8*10/100Base-TX (PoE)

Uplink Ports

1*10/100Base-TX

Network Standard

IEEE802.3,  IEEE802.3u,  IEEE802.3X

Switching Capacity

1.8Gbps

Packet Forwarding Rate

1.34Mpps

Forwarding Modes

Store and Forward

Packet Buffer

768K

MAC Address Table

2K

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+), 3/6(-)

PoE Output Power

54V DC ,  30 watts max

PoE Budget

120 watts max

Surge Immunity

6KV    Execute:  IEC61000-4-5

ESD Immunity

6KV     Contact discharge

8KV       Air discharge

Execute:  IEC61000-4-2

Input Voltage

DC 48V~57V

Power Consumption

5W

Operating Temperature

-10℃~55℃

Storage temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

200mm×101.8mm×27mm

Weight

500g

Certification

CE,  FCC,  ROHS

PoE Ethernet switch
Ethernet switch

Designation

Quantity

UTP3-SW08-TP120

1

Power  Adapter

1

Accessory

1

User Manual

1
