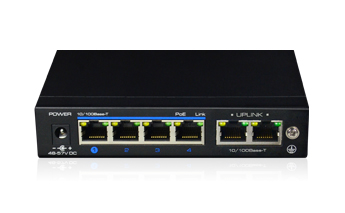

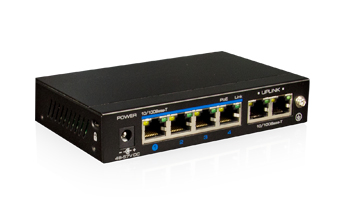

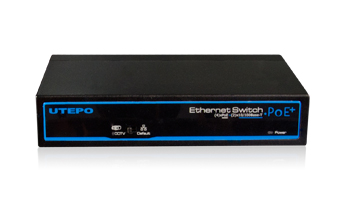

4 Ports PoE Ethernet Switch

4 Ports PoE Ethernet Switch(Off Production)

UTP3-SW04-TP60

Description
Specifications
Dimensions
Applications
Package
Download
Related Video
Related Product

4 ports PoE Ethernet Switch is security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. ESD and surge protection circuit can improve product stability. The product supports one key CCTV model, with VLAN function can restrain the network storm, protect the information security, prevent the viral transmission and cyber attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.

Item		Description
Power	Power Supply	Power Adaptor
	Voltage Range	DC48V~54V
	Consumption	＜5W
Ethernet	Speed	1-4 port: Default:10/100Mbps. CCTV: 10Mbps;UPLINK:100Mbps
	Transmission Distance	1-4 port: Default:0～100m. CCTV: 0~250m;UPLINK:100m
Network Switch	Ethernet Standard	IEEE 802.3/802.3u/802.3af/at
	Switching Capacity	1.0Gbps
	Packet Forwarding Rate	0.74Mpps
	Packet Buffer	768K
	MAC Address Table	2K
Status Indicator	Power Light	1pc(Red)
	Ethernet Port Light	2pcs(Yellow&Green) on RJ45,yellow indicates PoE, green indicates Link/Act
	Surveillance Module Light	1pcs(Green), green indicates CCTV
Protection Level	Pulse Group	Level 3 Standard: IEC61000-4-4
	ESD Immunity	1a Contact Discharge Level 3 1b Air Discharge Level 3Standard: IEC61000-4-2
	Surge Immunity	6KV
		Standard: IEC61000-4-5
Operating Environment	Operating Temperature	-10℃~55℃
	Storage Temperature	-40℃~85℃
	Humidity(Non-condensing)	0~95%
Mechanical	Dimension(LWH)	135mm×85.6mm×27mm
	Out Shell	Galvanized Sheet
	Color	Black
	Weight	315g
Power/Distance 54V	Distance	100m	150m	200m	250m
	Power	26W	24W	23W	21W
