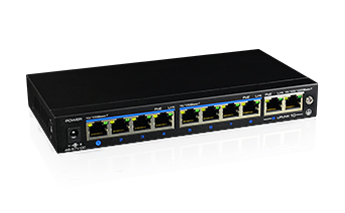

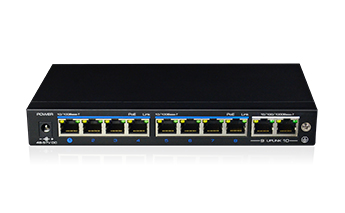

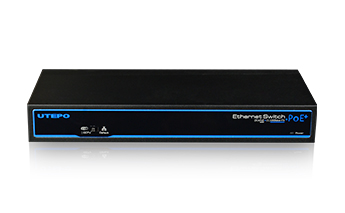

The 8 ports PoE Ethernet Switch with 8 downlink PoE ports and double 1000Mbps uplink ports is a security surveillance Ethernet Switch which is applicated in high definition network surveillance and security system. The product fully combines the characteristics of security surveillance, Besides, the 8 downlink PoE ports support IEEE802.3af/at standard, The ESD, 6KV lightning protection and surge protection circuits improve product stability. Also the device supports one key CCTV mode which realizes VLAN function, restrains the network storm, protects the information security, prevents the virus spread and cyber attack, fully satisfies the Ethernet video security surveillance system and Ethernet projects needs.
|
Model |
UTP3-SW08-TP120-A1 |
|
Downstream Ports |
8*10/100Base-TX (PoE) |
|
Uplink Ports |
2*10/100/1000Base-T |
|
Network Standard |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3X |
|
Switching Capacity |
5.6Gbps |
|
Packet Forwarding Rate |
4.2Mpps |
|
Forwarding Modes |
Store and Forward |
|
Packet Buffer |
1.5M |
|
MAC Address Table |
4K |
|
PoE Standard |
802.3af/at(PSE) |
|
PoE Power Method |
End-span |
|
PoE Line Pair |
1/2(+), 3/6(-) |
|
PoE Output Power |
44~57V DC , 30 watts max |
|
PoE Budget |
120 watts max |
|
Surge Immunity |
6KV Execute: IEC61000-4-5 |
|
ESD Immunity |
6KV Contact discharge |
|
8KV Air discharge |
|
|
Execute: IEC61000-4-2 |
|
|
Input Voltage |
DC 48V~57V |
|
Power Consumption |
＜5W |
|
Operating Temperature |
-10℃~55℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Humidity(Non-condensing) |
5%-95% |
|
Dimension（L×W×H） |
200mm×101.8mm×27mm |
|
Weight |
500g |
|
Certification |
CE, FCC, ROHS |
.jpg "8 ports poe switch")
 2.jpg "UTEPO, poe switch")
|
Designation |
Quantity |
|
UTP3-SW08-TP120-A1 |
1 |
|
Power Adapter |
1 |
|
Accessory |
1 |
|
User Manual |
1 |
