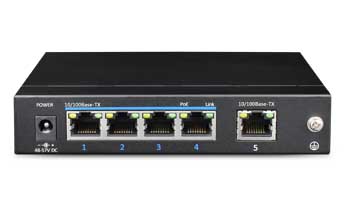

 4 Ports PoE Ethernet Switch ( One Uplink Port)

4 Ports PoE Ethernet Switch ( One Uplink Port)

UTP3-SW0401-TP60
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

4 ports PoE Ethernet Switch is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet project security system. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability. The product supports one key CCTV model, can achieve VLAN, QoS priority after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.


Advantages

Main Ports: 4 x downlink Fast PoE Ethernet ports,1x uplink Fast Ethernet ports.

Unique Feature:one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~4 downlink ports only able to communicate with uplink ports, extend transmission distance up to 250m(10Mbps).

Power Input:DC48V~57V.

Standard:IEEE802.3, IEEE802.3u, IEEE802.3 af, IEEE802.3at.

Protection:Superior lightning protection(6KV), ESD protection and anti-interference ability.

Structure: stable and delicate, easy to install.

Operation:plug and play, no any settings needed.

Model

UTP3-SW0401-TP60

Downstream Ports

4*10/100Base-TX (PoE)

Uplink Ports

1*10/100Base-TX

Standard and Protocols

IEEE802.3, IEEE802.3u, IEEE802.3X

Switching Capacity

1Gbps

Packet Forwarding Rate

0.74Mpps

Forwarding Modes

Store and Forward

MAC Address Table

2K

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+), 3/6(-)

PoE Output Power

54V DC, 30 watts max

PoE Budget

60 watts max

Surge Immunity

6KV  Execute: IEC61000-4-5

ESD Immunity

6KV Contact discharge

8KV Air discharge

Execute: IEC61000-4-2

Input Voltage

DC 48V~57V

Power Consumption

5W

Operating Temperature

-10℃~55℃

Storage temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

135mm×86mm×27mm

Weight

343g

Certification

CE, FCC, ROHS

4 ports poe switch
poe switch

Designation

Quantity

UTP3-SW0401-TP60

1

Power Adapter

1

Accessory

1

User Manual

1
