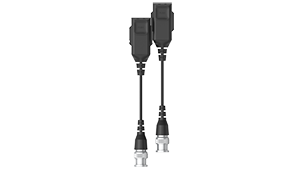

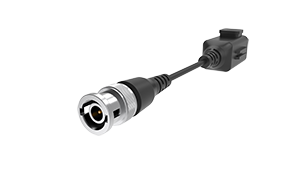

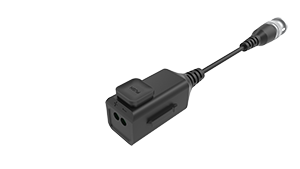

The passive video transceiver allows the transmission of real-time video over UTP wires. Equipped with splicing and push button design in compact size, it ensures the better management and simple installation. Meanwhile, compatible with HDCVI/ HDTVI/ AHD/ Analog, it is very suitable for video surveillance, such as office building, community, school and hospital etc.
ADVANTAGES
• New design, support splicing, push-button.
• Plug-and-play; Real-time and stable HDCVI/HDTVI/AHD/Analog transmission result.
• 500m matches the passive transceiver; 650m matches active transceiver.
• Excellent anti-interference，surge protection, ESD protection.
• ABS (Acrylonitrile-Butadiene-Styrene) shell; built-in extended coaxial cable, convenient for intensive engineering projects.
• Bayonet Nut Connector (BNC); pushing UTP terminal.
.png "VIDEO BALUN")
|
Model |
UTP101P-HD6 |
|
Video Port |
1 channel |
|
Recommend Transmission Distance (with passive product) |
HDCVI-720P:400m;1080P:250m; |
|
4MP:250m;8MP:200m |
|
|
HDTVI-720P:250m;1080P:250m; |
|
|
4MP:200m;8MP:160m |
|
|
AHD-720P: 300m; 1080P:300m |
|
|
4MP: 270m; 8MP:250m |
|
|
Analog Video:500m; |
|
|
Coaxial Video Port |
Male BNC |
|
Twisted-pair Video Port |
2-channel pushing terminal |
|
Video Compatibility |
HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video |
|
Bandwidth |
0～75MHz |
|
Surge Immunity |
2KV Per: IEC61000-4-5 |
|
ESD Immunity |
Level 3,1a Contact Discharge, |
|
Level 3,1b Air Discharge |
|
|
Operating Temperature |
-10～55℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Humidity（Non-condensing） |
0～95% |
|
Out Shell |
ABS |
|
Weight |
20g |
|
Designation |
Quantity |
|
UTP101P-HD6 |
2 |
