ADVANTAGES
• Passive, no power required
• Plug-and-play
• Real-time and stable
• HDCVI/HDTVI/AHD/Analog transmission result
• 500m matches the passive transceiver, 650m matches active transceiver
|
Model |

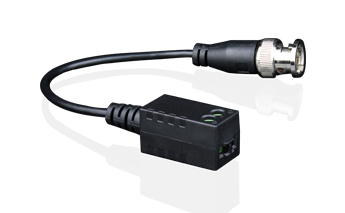

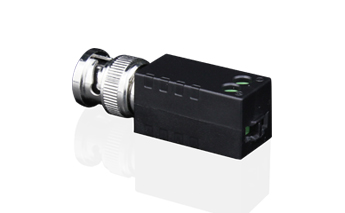

UTP101P-HD3 |
|
Video Port |
1 channel |
|
Maximum Transmission Distance (with passive product) |
HDCVI-720P:400m;1080P:350m; |
|
400W(4MP):250m;800W(8MP):200m |
|
|
HDTVI-1080P:300m;4MP:200m; |
|
|
8MP:150m |
|
|
AHD-720P: 400m; 1080P:400m |
|
|
400W(4MP): 270m; 500W(5MP): 150m; |
|
|
8MP: 200m |
|
|
Analog Video: 500m; |
|
|
Coaxial Video Port |
Male BNC Port |
|
Twisted-pair Video Port |
2-channel screw push terminal |
|
Video Compatibility |
HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video |
|
Bandwidth |
0～75MHz |
|
Anti-interference |
>60dB |
|
Coaxial Port Protection |
2KV Per: IEC61000-4-5 |
|
Twisted-pair Port Protection |
2KV Per: IEC61000-4-5 |
|
Working Temperature |
-10～55℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Humidity（Non-condensing） |
0～95% |
|
Out Shell |
ABS |
|
Weight |
18g |
.jpg)
|
Designation |
Quantity |
|
UTP101P-HD3 |
2 |
|
User Manual |
1 |
