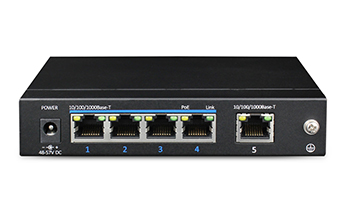

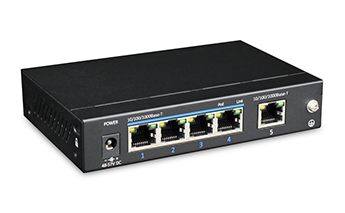

The 5 Ports Full Gigabit PoE Switch is specially designed for the application of high definition network security surveillance system. The PoE switch provides 4 Gigabit downlink PoE ports support 802.3at and 1 Port Gigabit uplink ports.the total PoE power output is up to 60 watts. It's widely used in survelliance monitor and Ethernet network solution.
ADVANTAGES
• Main Ports: 4x downlink gigabit PoE Ethernet ports, 1xuplink gigabit Ethernet ports
• Unique Feature: one-key CCTV mode,which can restrain network storm,realize VLAN function and 1~4 downlink ports only able to communicate with uplink ports
• Power Input: DC48V~57V
• Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3 af, IEEE 802.3at
• Protection: superior lightning protection(6KV), ESD protection and anti-interference ability
• Structure: stable and delicate, easy to install
• Operation: plug and play, no any settings needed
|
Model |
UTP3-GSW0401-TP60 |
|
Downlink Ports |
4x10/100/1000Base-T(PoE) |
|
Uplink Ports |
1x 10/100/1000Base-T |
|
Network Standard |
IEEE 802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3x |
|
Switching Capacity |
10Gbps |
|
Packet Forwarding Rate |
7.44Mpps |
|
Forwarding Modes |
Storage & Forwarding |
|
MAC Address Table |
2K |
|
PoE Standard |
802.3af/at(PSE) |
|
PoE Power Method |
End-span |
|
PoE Line Pair |
1/2(+)，3/6(-) |
|
PoE Output Power |
Single PoE Output≤30W(54V DC), Whole machine PoE output≤60W |
|
CCTV Mode |
Downlink ports only communicate with uplink ports |
|
Surge Immunity |
6KV ： IEC61000-4-5 |
|
ESD Immunity |
Contact discharge 6K, Air discharge 8KV, Per: IEC61000-4-2 |
|
Input Voltage |
DC 48V~57V |
|
Power Consumption |
5W |
|
Operating Temperature |
-10℃~+55℃ |
|
Storage Temperature |
-40℃~+85℃ |
|
Operation Humidity |
5%-95%(Non-condensing) |
|
Dimension（L×W×H） |
135mm×85.6mm×27mm |
|
Material |
Metal |
|
Weight |
315g |
|
Designation |
Quantity |
|
UTP3-GSW04-TP60 |
1 |
|
Power Adapter |
1 |
|
Accessory |
1 |
|
User manual |
1 |
