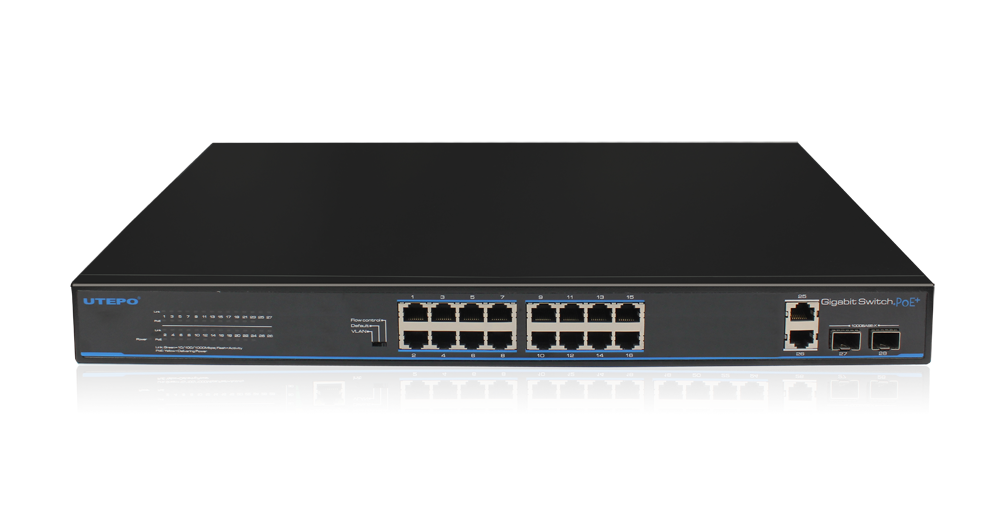

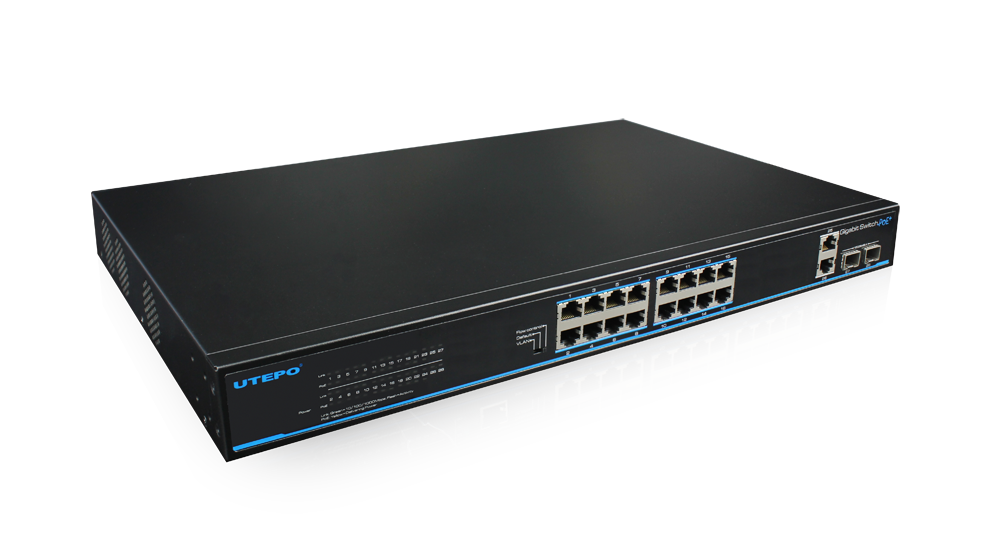

This series product is 16-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch. This series switches provide 16 Gigabit Ethernet RJ-45 downlink ports, 2 Gigabit Ethernet RJ-45 uplink ports and 2 Gigabit SFP uplink ports. All RJ-45 downlink ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port. The switches support working in three modes: default, VLAN, and flow control. It can be widely used in video security monitoring systems, network projects, etc
FEATURES AND HIGHLIGHTS
Abundant Interfaces
• UTP3-GSW1604TS-P200: 16*10/100/1000Base-T PoE RJ-45 ports
• 2*10/100/1000 Base-T RJ-45 Ports
• 2*1000 Base-X SFP ports
High Peformance Design
• 6kV surge immunity
• 6kV contact discharge, 8kV air discharge ESD protection
• Metal shell design
• Rack mounted / desktop / wall mounted installation
Support 3 Working Modes
• Default: all ports are free to communicate.
• VLAN: downlink ports are isolated from each other, but can communicate with uplink ports.
|
Items |
UTP3-GSW1604TS-P200 |
UTP3-GSW2404TS-P420 |
|
Ethernet Ports |
||
|
Downlink Ports |
16*10/100/1000 Base-T PoE RJ-45 (Auto-MDI/MDI-X) |
24*10/100/1000 Base-T PoE RJ-45(Auto-MDI/MDI-X) |
|
Uplink Ports |
2*10/100/1000 Base-T RJ-45 |
|
|
PoE |
||
|
PoE Standard |
IEEE 802.3af/at (PSE) |
IEEE 802.3af/at (PSE) |
|
PoE Power Supply Type |
End-span |
End-span |
|
PoE Pin Assignment |
1/2(+)，3/6(-) |
1/2(+)，3/6(-) |
|
PoE Power Output |
53.5V DC |
54.5V DC |
|
PoE Power |
30W max for each port, 175W max |
30W max for each port, 390W max |
|
Switch Property |
||
|
Standards |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X |
|
|
Forwarding Modes |
Store and Forward |
|
|
Packet Buffer |
4Mbyte |
|
|
MAC Table |
8k, support auto learning |
|
|
Switching Capacity |
40Gbps / non-blocking |
56Gbps / non-blocking |
|
Packet Forwarding Rate |
29.8Mpps |
41.7Mpps |
|
Power Supply |
||
|
Input Voltage |
100~240VAC 50/60Hz |
100~240VAC 50/60Hz |
|
Power Consumption |
200W (Including PoE) |
420W (Including PoE) |
|
Reliability |
||
|
Surge Immunity |
6kV, Standard: IEC6000-4-5 |
|
|
ESD Protection |
6kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2 |
|
|
Operating Temperature |
-10℃~50℃ |
|
|
Storage Temperature |
-40℃~85℃ |
|
|
Operating Humidity |
5%~95% (Non-condensation) |
|
|
Physical Parameter |
||
|
Led Indicators |
1*PWR Indicator |
1*PWR Indicator |
|
16*Downlink Port Link Indicators |
24*Downlink Port Link Indicator |
|
|
16*Downlink Port PoE Indicators |
24*Downlink Port PoE Indicator |
|
|
4*Uplink Port Link Indicator |
4*Uplink Port Link Indicator |
|
|
DIP Switch |
Default: all ports are free to communicate. |
|
|
VLAN: downlink ports are isolated from each other, but can communicate with uplink ports. |
||
|
Flow control: enable flow control function, this mode is suitable for video surveillance transmission. |
||
|
Dimensions (W*D*H) |
442mm*285mm*44mm |
|
|
Gross Weight |
5000g±60g |
5350g±60g |
|
Net Weight |
3800g±40g |
4150g±50g |
|
Material |
Metal shell |
|
|
Installation |
Rack mounted/desktop/wall mounted |
|
|
Certifications |
||
|
Certifications |
CE, FCC |
|
.jpg "16 ports poe switch")
|
Items |
Quantity |
|
Switch |
1 set |
|
AC Power Cable |
1 pc |
|
Mounting Accessory |
1 set |
|
Quick Installation Guide |
1 pc |
