OVERVIEW

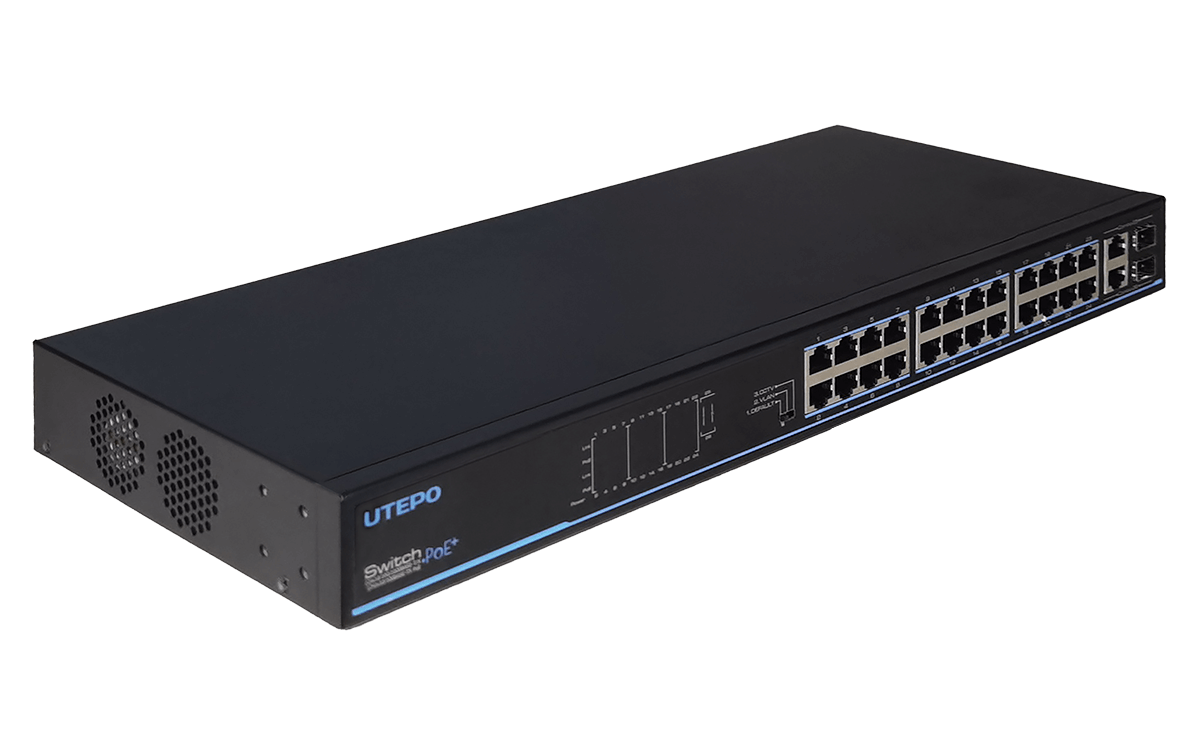

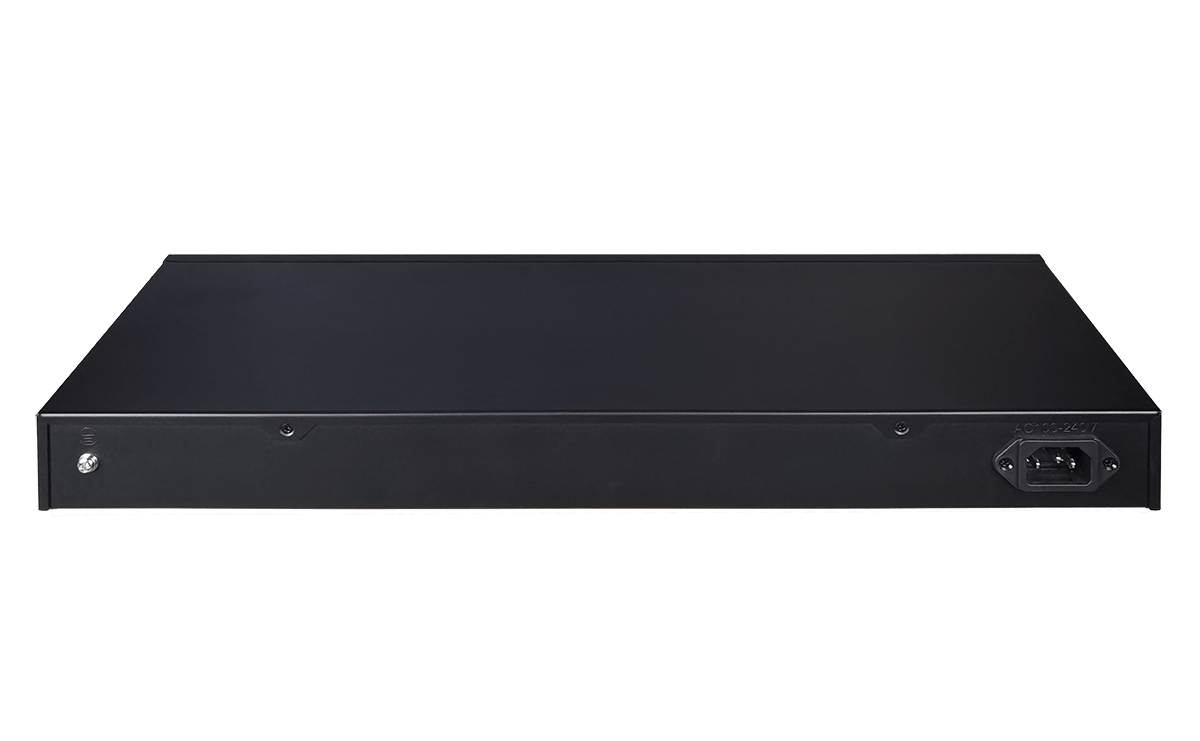

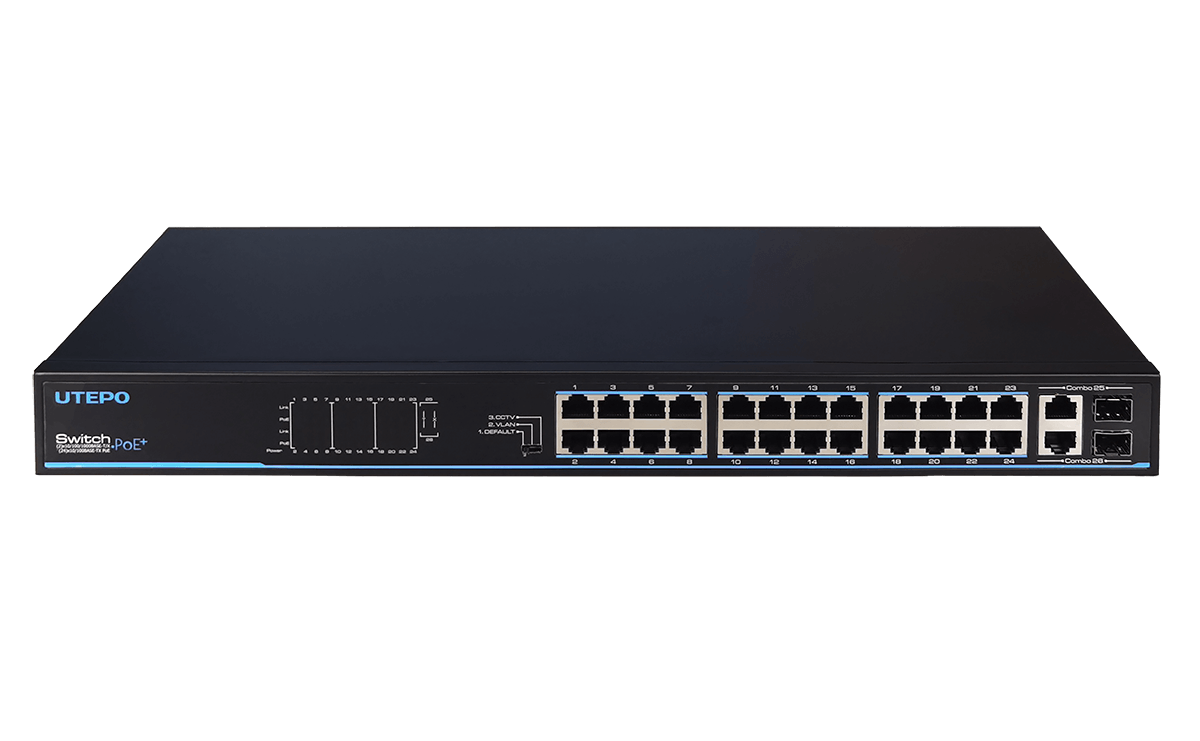

The product is 24-Port FE PoE+ 2-Port Gigabit Combo (RJ-45/SFP) Unmanaged Ethernet Switch.
The switch provides 24*10/100Mbps RJ-45 Ethernet ports, 2*1000Mbps combo (RJ-45/SFP) ports. All downlink RJ-45 ports support Power-over-Ethernet (PoE), and deliver up to 30W power per port. It meets IEEE 802.3af/at standard.
The switch supports 3 working modes through DIP switch: Default, VLAN and CCTV. Under VLAN and CCTV mode, it supports PoE watchdog features, which can detect and restart the camera automatically if it stops working. It can be widely used in video security monitoring systems, network projects, etc.
FEATURES AND HIGHTLIGHTS
Abundant Interfaces
● 24*10/100BASE-T PoE+ RJ-45(Auto MDI/MDIX)
● 2*1000M RJ-45/SFP Combo
Power-over-Ethernet
● IEEE 802.3af/at
● 30W max for each port, 225W max for whole switch
One-key Smart Mode
● Default: All ports are free to communicate, transmission distance: 0~100m.
● VLAN: Downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog.
● CCTV: The transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.
UTP3226TS-PSB225 offers 24 10/100Mbps Ethernet RJ-45 ports featuring 30-watt 802.3at PoE+ and 2 1000Mbps RJ-45/SFP combo ports. The switch can be set to operate in 3 different working modes (Default, VLAN, and CCTV) through the DIP switch. When set to VLAN and CCTV modes, the switch supports PoE watchdog, allowing it to continuously detect PoE devices and reboot PoE devices automatically when a link failure or device malfunction is detected. This Ethernet switch is suitable for video security monitoring systems, network projects, etc.
PoE Provides Centralized Power Management
The switch provides 24 PoE ports and aligns with the standard of IEEE 802.3af/at, of which the total PoE budget is up to 225W. All the power would be sent from the back end (PoE switch).
Flexible Extension with SFP Slot
The switch provides two 1000M RJ-45/SFP Combo ports, which can be uplinked to the backbone switch and monitoring center over a long distance. The distance can be extended over 550 meters or more (according to the performance of the SFP module). It is well-suited for applications within enterprise data centers and distributions.
Support Three Working Modes
The switch provides three working modes (Default, VLAN, CCTV) through the built-in DIP switch. With the excellent troubleshooting function (PoE watchdog), it can monitor the network at any time.
>> Default
All ports are free to communicate, transmission distance: 0~100m.
>> VLAN
Downlink ports are isolated from each other but can communicate with Uplink ports. Transmission distance: 0~100m. The switch supports PoE watchdog under this mode.
>> CCTV
The transmission distance is extended up to 250 meters, but the rate is limited to 10Mbps. The switch supports PoE watchdog under this mode.
PoE Watchdog
When set to VLAN and CCTV modes, the switch supports PoE watchdog, allowing it to continuously detect PoE devices and reboot PoE devices automatically when a link failure or device malfunction is detected.
Robust Protection
The switches provide 6kV contact discharge and 8kV air discharge ESD protection. They also support 6kV surge immunity to improve product stability and protect users’ networks from devastating ESD attacks, which ensures the flow of operation does not fluctuate.
24*FE PoE+ + 2*GE Combo (RJ-45/SFP)
IEEE 802.3af/at
PoE budget: 225W
PoE watchdog
3 working modes (Default, CCTV, VLAN)
|
Item |
UTP3226TS-PSB225 |
|
Hardware Specifications |
|
|
Downlink Ports |
24*10/100BASE-T PoE+ RJ-45(Auto-MDI/MDI-X) |
|
Uplink Ports |
2*1000M RJ-45/SFP Combo |
|
LED Indicators |
1*PWR, power indicator |
|
28*Link, port indicators |
|
|
24*PoE, PoE indicators |
|
|
DIP Switch |
Default: all ports are free to communicate, transmission distance: 0~100m. |
|
VLAN: downlink ports are isolated from each other, but can communicate with uplink ports. This mode supports PoE watchdog. |
|
|
CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog. |
|
|
Input Voltage |
100~240V AC |
|
Power Consumption |
≤237W (Full load including PoE) |
|
Dimensions (W*D*H) |
441*180*44mm |
|
Net Weight |
2.31kg |
|
Installation |
Rack/Desktop/Wall mounted |
|
Material |
Metal shell |
|
Color |
Black |
|
Switch Property |
|
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
|
Forwarding Modes |
Store and Forward |
|
MAC Table |
8k |
|
Switching Capacity |
8.8Gbps/non-blocking |
|
Packet Forwarding Rate |
6.5472Mpps |
|
Buffer |
4Mb |
|
Power Supply |
|
|
PoE Standard |
IEEE 802.3af/at |
|
PoE Power Supply Type |
End-span |
|
PoE Pin Assignment |
1/2 (+), 3/6 (-) |
|
PoE Budget |
30W max for each port, 225W max for whole switch |
|
Reliability |
|
|
ESD |
IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV |
|
Surge |
IEC61000-4-5, line to earth: 6kV |
|
Operating |
-10°C~50°C, 5%~95% (Non-condensation) |
|
Storage |
-40°C~75°C, 5%~95% (Non-condensation) |
|
Item |
Quantity |
|
Switch |
1 pc |
|
Power Cable |
1 pc |
|
Mounting Accessory |
1 set |
|
Quick Installation Guide |
1 pc |
