OVERVIEW

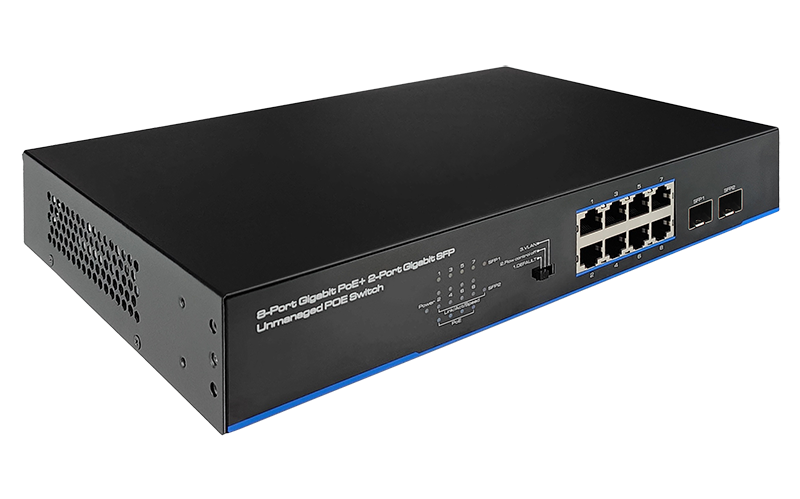

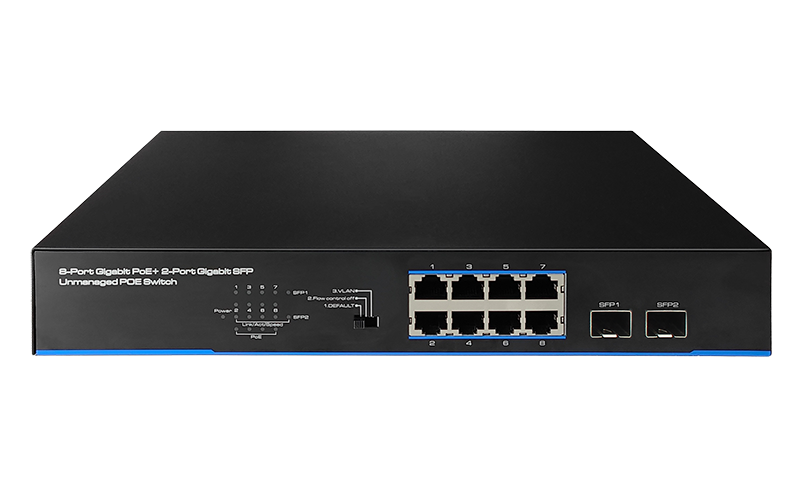

UTP3310S-PSB, 8-Port Gigabit PoE+ and 2-Port Gigabit SFP Ethernet Switch, offers 8*10/100/1000Mbps Adaptive Ethernet ports and 2*1000Mbps SFP uplink ports. This switch is designed for high integration, portability, and ease of use, making it perfect for small to medium offices and home networks. It provides a simple, cost-effective, and high-performance network solution, ideal for boosting departmental and workgroup productivity. The front panel features easy-to-understand LED indicator lights for quick diagnostics of network issues.
The PoE ports automatically detect and supply power to IEEE 802.3at compliant Powered Devices (PD), allowing for the transmission of data and power through a single cable. This feature is perfect for expanding networks in locations without power lines, enabling you to connect devices such as APs, IP Cameras, and IP Phones.
|
Item |
UTP3310S-PSB |
|
Hardware Specifications |
|
|
Downlink Ports |
8*10/100/1000Mbps Adaptive Ethernet ports |
|
Uplink Ports |
2*1000Mbps SFP ports |
|
LED Indicators |
1*PWR, Power Status indicator |
|
8*Link/ACT/Speed, Ethernet port indicators |
|
|
2* SFP, SFP port indicators |
|
|
8*PoE, PoE status indicators |
|
|
Working Mode |
Default mode: Switch all ports can communicate with each other. |
|
Flow Control off mode: Turn off all ports flow control function, all ports can communicate with each other |
|
|
VLAN mode: 1 to 8 cannot communicate with each other, but can communicate with SFP1-SFP2. |
|
|

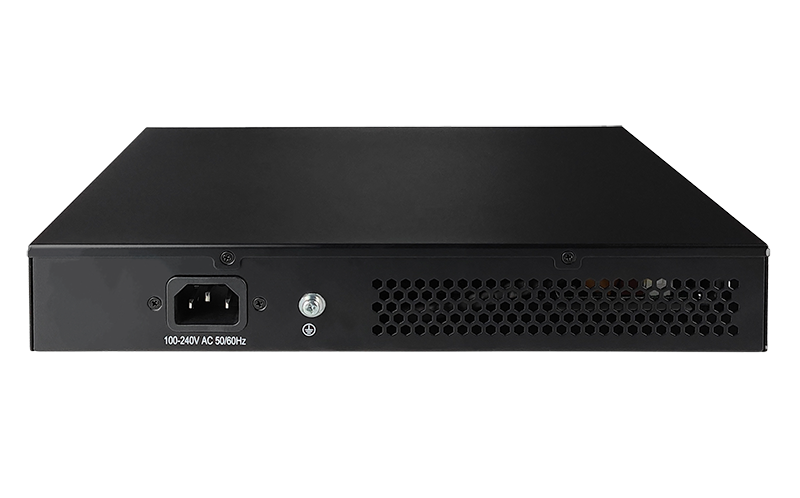

Input Voltage |
100~240V AC, 50~60Hz, 2.5A |
|
Power Consumption |
142W(Maximum，PoE on) |
|
Dimensions (W*D*H) |
280*180*44.3mm |
|
Net Weight |
1463g |
|
Installation |
Desktop/Rack mounted |
|
Material |
Metal shell |
|
Color |
Black |
|
Switch Property |
|
|
Standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at, IEEE 802.3af |
|
Forwarding Modes |
Store and Forward |
|
Switching Capacity |
20Gbps/non-blocking |
|
Packet Forwarding Rate |
14.88Mpps |
|
MAC Table |
4k |
|
Buffer |
1.5Mbits |
|
Jumbo Frame |
9KBytes |
|
Power Supply |
|
|
PoE Standard |
IEEE 802.3af/at |
|
PoE Power Supply |
53.5V |
|
PoE Pin Assignment |
1/2(+),3/6(-) |
|
PoE Budget |
30W max for each port, 120W max for whole switch |
|
Reliability |
|
|
EMI |
GB9254-2008 Class A |
|
Surge |
IEC61000-4-5, line to earth: 4kV |
|
Operating |
0°C~45°C, 10%~90% (Non-condensation) |
|
Storage |
-40°C~70°C, 5%~90% (Non-condensation) |
|
Items |
Quantity |
|
Switch |
1 pc |
|
AC Power Cable |
1 pc |
|
Mounting Accessory |
1 set |
|
- Mounting Ear |
2 pcs |
|
- Screw |
8 pcs |
|
- Dust plug |
2 pcs |
|
- Foot pad |
4 pcs |
|
Quick Installation Guide |
1 pc |
