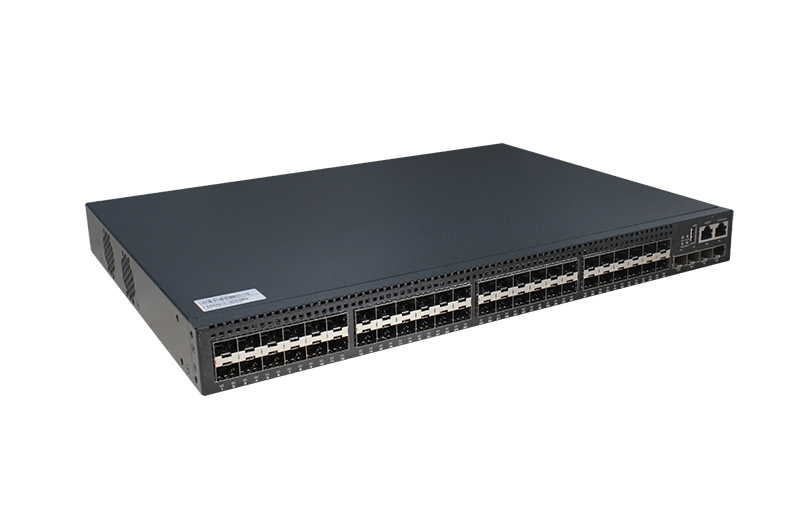

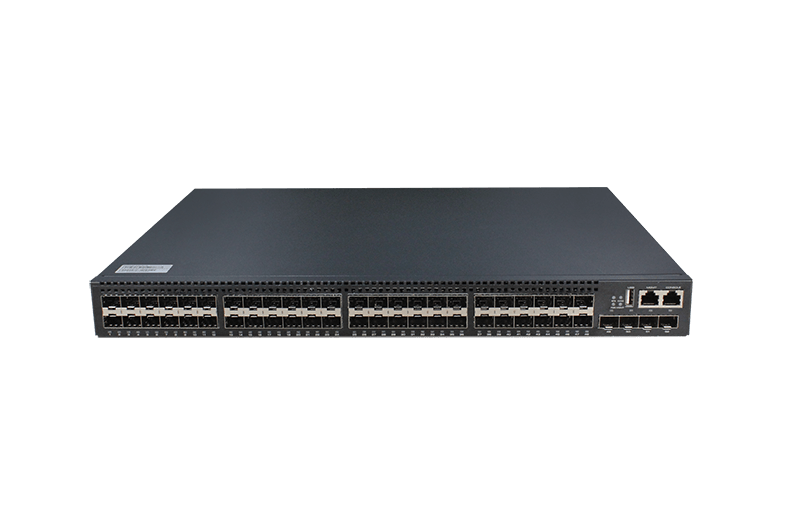

 48-Port Gigabit SFP+ 4-Port 10G SFP+ L3 Managed Ethernet Switch

48-Port Gigabit SFP+ 4-Port 10G SFP+ L3 Managed Ethernet Switch

UTP5650GS-L3
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

OVERVIEW

The switch is 48-Port Gigabit SFP+ 4-Port 10G SFP+ L3 Managed Ethernet Switch. It is full fiber stackable routing switch with fixed, built-in 10GbE uplink ports. The fully managed switch provides high availability, scalability, security, energy efficiency, and easy operation with rich L3 features. It is ideal for aggregation or access layer for campus, enterprise, government and service provider networks, deployed as Access switch with 10G uplink in FTTH network.


FEATURES AND HIGHLIGHTS

Performance and Scalability

• With high switching capacity, it supports wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols.

• The 10 Gigabit Ethernet connectivity of the switch is accomplished via a hot-pluggable 10 Gigabit SFP+ transceiver which supports distance up to 300 meters over multimode fiber and 10 to 40km over single-mode fiber (The distance depends on the optical module chosen).


VSF (Virtual Switch Framework)

• Virtual Switch Framework can virtualize multiple switches into one logical device, achieving the sharing of information and data tables between different switches. The performance and ports density of the virtualized device is greatly enlarged by times under VSF. VSF also simplifies management work for the network administrator and provides more reliability.


Rich L3 Features

• The switch delivers high-performance, hardware-based IP routing. RIP, OSPF, and BGP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. With the switch, customers could easily achieve Policy-based Route (PBR), which is important when they need a multi exit application.


Strong Multicast

• Supports abundant multicast features. In Layer 2, such as IGMP v1/v2/v3 snooping and fast leave. L3 multicast protocols such as IGMP v1/v2/v3. With Multicast VLAN Register (MVR), multicast re-ceiver/sender control and illegal multicast source detect functions. It provides a great application experience for the customer.


High-reliability Network

• MRPP is a Multi-layer Ring Protection Protocol, which is UETPO’s private fast Ethernet ring protocol. Comparing to spanning tree protocol, it has the advantages of fast convergence, simple protocol calculation, fewer system resources cost, and so on, which can improve the reliability of Ethernet network operation.


Comprehensive QoS

• With 8 queues per port, the switch enable differentiated management of up to 8 traffic types. The traffic is prioritized according to IEEE 802.1p, DSCP, IP precedence, and TCP/UDP port number, giving optimal performance to real-time applications such as voice and video.

• It also supports Bidirectional rate limiting, per port or traffic class preserves network bandwidth, and allows full control of network resources.


Abundant IPv6 Support

• Supports IPv6 switching and routing based on hardware for maximum performance. With increased network devices growing the need for larger addressing and higher security become critical, It will be the right product to meet this requirement.


UTEPO fiber switch


UTP5650GS-L3 is a 48-Port Gigabit SFP+ 4-Port 10G SFP+ L3 Managed Ethernet Switch. It is a full fiber stackable routing switch with fixed, built-in 10GbE uplink ports. The fully managed switch provides high availability, scalability, security, energy efficiency, and easy operation with rich L3 features. It is ideal for aggregation or access layer for campus, enterprise, government and service provider networks, deployed as access switch with 10G uplink in FTTH network.


Key Features

● Suitable for All Long-Reach Networks

Providing 48-Port Gigabit SFP + 4-Port 10G SFP+ ports for different long reach networks. It also provide 1*Console port + 1*RJ-45 Ethernet management port + 1*USB 2.0 Interface for convenient management.

fiber switch


● Abundant L3 Management Function

Support static routing, RIP, OSPF, IPv6, QoS, SNMP, VLAN, multicast, etc.

l3 switch


<< << RIP and OSPF

With dynamic routing function of RIP (Routing Information Protocol) and OSPF (Open Shortest Path First), the switch solves the routing problem of large and medium complex networks after subnet subdivision and simplify network configuration.


<< << PBR

With the switch, customers could easily achieve Policy-based Route (PBR), which is important when they need a multi exit application and provides a great application experience for the customer.

layer 3, RIP, OSPF


<< << Abundant IPv6/IPv4

Support IPv6/IPv4 switching and routing based on hardware for maximum performance. With increased network devices growing the need for larger addressing and higher security become critical, It will be the right product to meet this requirement.

IPv6, IPv4


● VSF Stackable Design (Virtual Switch Framework)

UTP5650GS-L3 supports VSF stacking technology which virtualizes multiple switches into a single large switch, achieving the sharing of information and data tables between different switches. The performance and ports density of the virtualized device is greatly enlarged by times under VSF. VSF also simplifies management work for the network administrator and provides more reliability.

VSF, stackable


● Excellent Heat Dissipation

Equipped with automatic-speed fans, and air vents in front to ensure excellent heat dissipation.

heat dissipation


Application

fiber switch


Specification


fiber switch


Items

UTP5650GS-L3

Physical Ports

Downlink Ports

48*100/1000 Base-X SFP

Uplink Ports

4*10GbE SFP+

Management Ports

1*Console port
1*RJ-45 Ethernet management port
1*USB 2.0 Interface

Switch Property

Switching Capacity

176Gbps

Packet Forwarding Rate

131Mpps

Jumbo Frame

10kB

MAC Table

16k

ARP Table

4k

Routing Table

1k

ACL Table

1k

Physical Parameter

Input Voltage

AC: 100~240V AC, 50~60Hz + 12V DC RPS

Power Consumption

≤60W

Operating Temperature

0℃~50℃

Storage Temperature

-40℃~70℃

Operating Humidity

5%~95% (Non-condensation)

Fan

Support automatic speed adjustment

Dimensions (W*D*H)

440mm*320mm*44mm

Net Weight

6kg

Software Specifications

L1, L2 Features

IEEE 802.3 (10 Base-T), IEEE 802.3u (100 Base-TX), IEEE 802.3z (1000 BASE-X),
IEEE 802.3ab (1000 Base-T), IEEE 802.3ae (10G Base), IEEE 802.3x,
IEEE 802.3ak (10G BASE-CX4)

Port loopback detection
LLDP and LLDP-MED
UDLD
IEEE 802.3ad LACP, max 128 group trunks with max 8 ports for each trunk
LACP load balance
ERPS (G.8032)

N:1 Port Mirroring
RSPAN

IEEEE 802.1d (STP)
IEEEE 802.1w (RSTP)
IEEEE 802.1s (MSTP)
Root Guard
BPDU Guard
BPDU Tunnel

802.1Q, 4K VLAN
MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN
QinQ, Flexible QinQ
GVRP
N:1 VLAN Translation
Broadcast / Multicast / Unicast Storm Control

IGMP v1/v2/v3 Snooping and L2 Query
ND Snooping
MLDv1/v2 Snooping

Port Security

Flow Control: HOL, IEEE 802.3x
Bandwidth Control

L3 Features

Static Routing, RIP v1/v2, OSPF v2, BGP4
OSPF v3, BGP4+
OSPF multiple processes
LPM Routing
Policy-based routing (PBR) for IPv4 and IPv6
VRRP
URPF
ECMP
BFD

IGMP v1/v2/v3, IGMP Proxy,
Static Multicast Route
Multicast Receive Control
Illegal Multicast Source Detect

ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit
Anti ARP Cheat, Anti ARP Scan

DNS Client, DNS Relay

GRE Tunnel

IPv6

6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel
ICMP v6, ND, DNS v6
IPv6 LPM Routing, IPv6 Policy-based Routing (PBR)
IPv6 VRRP v3, IPv6 URPF, IPv6 RA
RIPng, OSPF v3, BGP4+
MLD Snooping, IPv6 Multicast VLAN
MLDv1/v2, IPv6 Anycast RP, IPv6 ACL, IPv6 QoS

QoS

8 Queues
SWRR, SP, WRR, WDRR, SWDRR
Traffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port number
Traffic Policing
PRI Mark/Remark

ACL

IP ACL, MAC ACL, IP-MAC ACL
Standard and Expanded ACL based on source/destination IP or MAC, IP Protocol,
TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS
Redirect and statistics
Rules can be configured to port, VLAN, VLAN routing interfaces
Time Ranged ACL

Security

802.1x AAA
Port, MAC-based authentication
Accounting based on time length and traffic
Guest VLAN and auto VLAN

RADIUS for IPv4 and Ipv6

TACACS+ for IPv4 and Ipv6

MAB

DHCP v4/v6 Traffic Monitor

DHCP Server/Client for IPv4/IPv6
DHCP Relay/Option 82
DHCP Snooping/Option 82

Traffic Monitor

sFlow Traffic Analysis

Security Network Management

CLI, WEB, Telnet, SNMP v1/v2c/v3 through IPv4 and IPv6
Syslog and external Syslog Server
HTTP SSL
SNMP MIB, SNMP TRAP
FTP/TFTP
SNTP/NTP
RMOM 1,2,3,9
Authentication by Radius/TACACS
SSH v1/v2
Dual firmware images/ Configuration files
802.3ah OAM, 802.1ag OAM

Data Center Features

VSF (Virtual Switch Framework)
