 Industrial 24 Ports Gigabit Layer 3 Switch

Industrial 24 Ports Gigabit Layer 3 Switch

  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

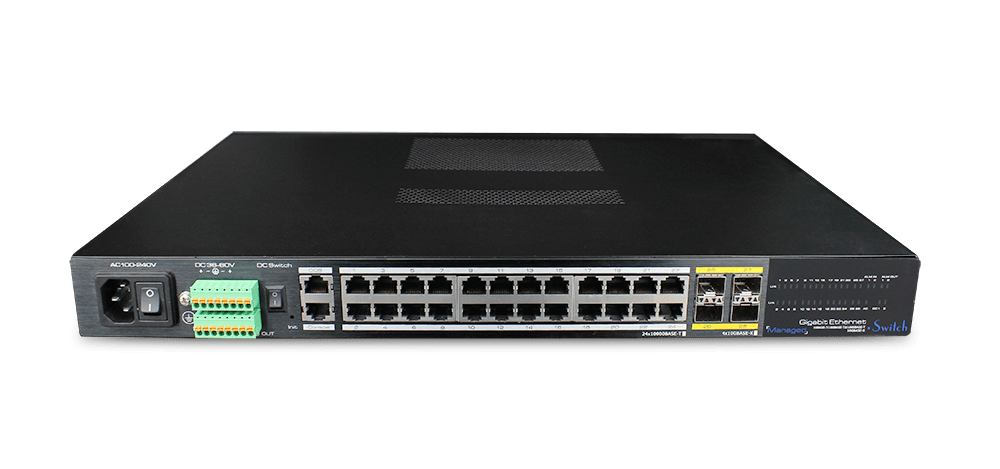

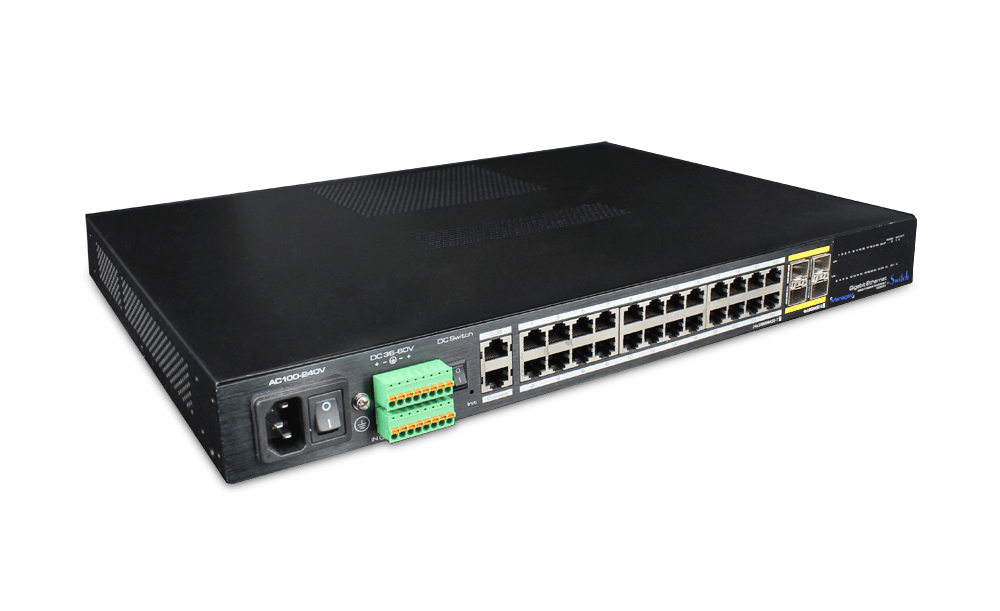

UTP7624GE-IE is a industrial layer-3 managed Switch,feature 24 10/100/1000base-T ports and 4 1000/10Gbase-X SFP ports,support static layer-3 routing in a 1U case.With a total switch fabric of 128Gbps,the switch can handle large amount of data in a secure topology linking to high capacity servers.The switch can work in the temperature range from -40℃-75℃ without any packets loss and it have not any fan to cooling.


AC and DC redundant power supply

• The switch has a 100~240V AC power supply and dual DC 36~60V power supply utilized as redundant power supply.

Digital input and digital output for alarm system

• Digital output has 2 groups,it can be seted  for the alarm of the switch: power failure,cable link down&PoE link off.

• Digital input has 2 groups, it is used to detect external alarm such as infrared detector.

• The digital input and output can be operation on web management.

Excellent protection and adaptive capacity for various environment

• Working temperature : -40℃-75℃

• Surge protection : level-4 (6KV)  IEC61000-4-5

• ESD protection : level-4(8KV contact/15KV air) IEC61000-4-2

UTEPO, 24 ports industrial switch



Copper Ports

24*10/100/1000 Base-T RJ45

10G SFP+ Slots

4*1000/10G Base-X SFP+

Console Port

1*RJ45-R232 serial port(115200,8,N,1)  only to CLI management

OOB Port

1*10/100Base-TX RJ45(only to web management)

Default IP: name:admin password:admin

Init Key

Short press restart

>5s press recovery to default

Power Supply-AC

1* AC 100240V 50/60Hz

Power Supply-DC

2*DC DC3660V

Power Consumption


Digital Input and Output

2* digital input for external alarm

2*digital output for the switch power failure,cable link down&PoE link off;

signal type: normal-open or normal-closed from relay

Standard and Protocols

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X,  IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad ,  IEEE 802.1D, IEEE 802.1X

Switching Capacity

128Gbps / non-blocking

Packet Forwarding Rate

95.2Mpps@64 bytes

Forwarding Modes


Packet Buffer


MAC Address Table


Jumbo Frame

9K bytes


FCC part 15,CISPR(EN55022) classA


Surge level-4  execute : IEC61000-4-5

ESD level-4  execute : IEC61000-4-2

RS level-4  execute : IEC61000-4-3

EFT level-4 execute : IEC61000-4-4

CS  level-3  execute : IEC61000-4-6

M/S  level-5  execute : IEC61000-4-8

Operating Temperature


Storage Temperature










Software Parameter

Ports Management

Support port enabling and disabling

Support port speed settings

Support port full-duplex mode

Support IEEE802.3x flow control

Support Jumbo Frame

Support port name modification


Support of 4K VLAN

Support 802.1Q VLAN protocol

Support QINQ

Support GVRP active VLAN register

Support VLAN based on port\protocol\MAC


Digital input an digital output can be set in web management


Support COS classification base on 802.1p

support QoS base on DSCP

Support 8 priority queues

Queue scheduling: SP, WRR, SP+WRR

Support 802.1p CoS/DSCP priority


Support SNMPV1 / V2 / V3 protocols

Support IGMP Snooping

support MLD-snooping


Supports IP, MAC, port, VLAN binding combinations

Support MAC address auto-learning, aging and filtration

Support port isolation, port speed limit

Support STP \ RSTP \MSTPFast-Ring

Support 5 groups of link aggregation

Support LLDP, Smart-Link, DLDP

Support 802.1X


Support base on source-MAC, target-MAC, protocal-classify, source-IP, target-IP, L4 ports-number

Support time-range management

System Management

Web-based GUI and CLI management

Support FTP / TFTP / HTTP load upgrade

Support traffic statistics

Support MAC address table query

Support IP address, DNS server modifications

Support user name and password modification

Support for history, log management

Support System Configuration Backup

Support to recover the default factory settings on reboot

L3 Function

Support IPV4 static route setup

Support RIP V1/2 on IPV4

Support OSPF V1/V2

Support static ARP Add,delete,burn-in time sutup/check

Support static NDAdd,delete,burn-in time sutup/check

Support VRRP V1/2/3 virtual redundant route protocol

Support group-broadcasting PIM,IGMP V1/V2/V3,MLD(IPV4)

Support DHCP client,server

Support relay repeater,DHCP snooping

Support duplex transfer check mechanism

24 ports industrial switch




1 pc


1 pair

AC Power Cable

1 pc

User Manual

1 pc
