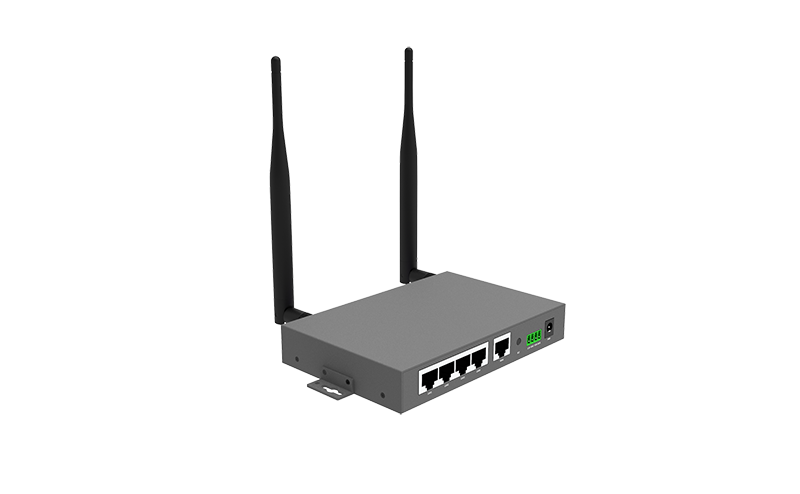

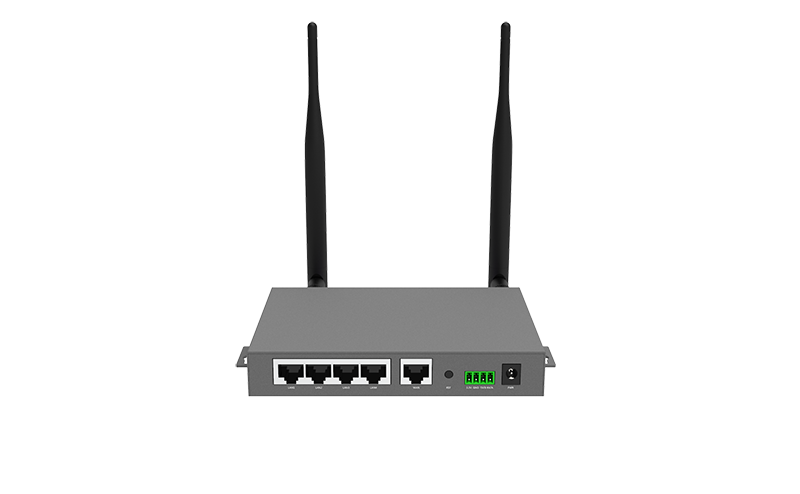

 Industrial 5-port 4G Router

Industrial 5-port 4G Router

URT6105
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

OVERVIEW

This series of product is highly-reliable and secure cellular router for industrial networking. This series of product includes the following two models:

URT6102 Industrial 2-port 4G Router

• URT6105 Industrial 5-port 4G Router

This series of product uses built-in industrial-grade 4G wireless module and WiFi module, with rich interfaces and strong scalability. With high-performance 32-bit professional network communication processors and embedded real-time operating systems, this series of product provides users with a safe, high-speed, stable and reliable 3G/4G wireless routing network. This series of product supports international FDD-LTE, TDD-LTE, WCDMA (HSPA+), CDMA2000 (EVDO), TD-SCDMA 3G/4G mobile multiband network standards. With rich functions and wide applications, they can provide users with convenient and high-speed network transmission function.


FEATURES AND HIGHLIGHTS

Abundant Interfaces

URT6102:

1*10/100Base-TX RJ-45 LAN port, 1*10/100Base-TX RJ-45 WAN port

1*4G LTE antenna, 1*WiFi antenna

1*SIM/USIM card slot

1*RS232 communication serial port

• URT6105:

4*10/100Base-TX RJ-45 LAN port, 1*10/100Base-TX RJ-45 WAN port

1*4G LTE antenna, 1*WiFi antenna

1*SIM/USIM card slot

1*RS232 communication serial port


Cellular Features

• Supports multi-band connectivity with FDD-LTE/TDD-LTE/WCDMA(HSPA+)/ CDMA2000(EVDO)/ TD-SCDMA

• Supports detachable antenna

• LED indicators for data transmission status


Industrial Design

• Working temperature: -30℃~70℃

• Input voltage range: 7.5~32V DC

• Metal shell design

• Wall-mounted installation


Management Features

• Supports demilitarized zone (DMZ)

• Supports VPN management, including: GRE, PPTP, L2TP, IPSec, openVPN, N2N

• Wired network, mobile network and wireless network management

• Supports firewall management

• Supports hardware and software watchdog

Items

URT6102

URT6105

Hardware Specifications

Copper Ports

1*10/100Base-TX RJ-45 LAN port (Auto MDI/MDIX)
1*10/100Base-TX RJ-45 WAN port (Auto MDI/MDIX,
can be set as LAN port via web)

4*10/100Base-TX RJ-45 LAN ports(Auto MDI/MDIX)
1*10/100Base-TX RJ-45 WAN port (Auto MDI/MDIX,
can be set as LAN port via web)

Serial Interface

1*RS232 serial interface (4-pin terminal, support DTU function)

SIM Interface

1*SIM/USIM card slot (1.8/3V)

Cellular Antenna

1*4G LTE antenna
1*WiFi antenna

1*4G LTE antenna
1*WiFi antenna

Connector

Removable 4-pin terminal block for serial interface

Forwarding Modes

Store and Forward

Reset Button

Long press >10s to initialise the system

Led Indicators

1* power indicator, 1* WAN port indicator
1* LAN port indicator, 1* 4G network indicator

1* power indicator, 1* WAN port indicator
4* LAN port indicator, 1*WiFi indicator, 3* 4G network indicator

Dimensions (W*D*H)

95mm*70mm*25mm

152mm*104mm*25mm

Net Weight

0.2kg

0.4kg

Installation

Wall-mounted

Material

Metal shell

Input Voltage

7.5V~32V DC

Rated Voltage

12V/1A DC

Power Consumption

≤2.3W

Multi Band Supports

Europe

FDD:B1/3/5/7/8/20
TDD:B40
WCDMA:B1/5/8
GSM:900/1800

North America

FDD:B2/4/5/12/13/17/B18/B25/26
TDD:B41
WCDMA:B2/4/5
EVDO:BC0/1
GSM:850/1900

South America

FDD:B2/4/5/7/8/28
TDD:B40
WCDMA:B2/5/8
GSM:850/900/1800/1900

Japan/Korea

FDD:B1/3/8/18/19/26
TDD:41
WCDMA:B1/6/8/19

Africa

FDD:B1/3/5/7/8/20
TDD:B40
WCDMA:B1/5/8
GSM:900/1800

Australia

FDD:B1/3/5/7/8/28
TDD:B40
WCDMA:B1/5/8
GSM:850/900/1800/1900

Environments

Operating

Temperature: -30℃~70℃
Relative Humidity: <95% (Non-condensation)

Storage

Temperature: -40℃~85℃
Relative Humidity: <95% (Non-condensation)

Software Architecture

System Status

Overview

System, 4G WAN status, network, memory, DHCP leases, wireless, associated stations overview

Routes

Active routes information, including ARP, IPv4 routes, IPv6 routes and IPv6 neighbours

System Log

System log records

Kernel Log

Kernel log records

Realtime Graphs

Real time graphs of load, traffic, wireless and connections

Basic Network

Switch

Enable/disable VLAN
VLAN configuration
Enable/disable mirroring function

Hostnames

Host entris list

Static Routes

Static IPv4 Routes, Static IPv6 Routes

Wired Network

WAN interfaces, LAN interfaces and Management interfaces configuration

Mobile Network

Mobile network configuration

Wireless Network

Wireless network configuration

Static Address

Static leases configuration

Advanced Network

QoS

WAN Interface and classification rules configuration

DMZ

DMZ host configuration

Firewall

Zone, traffic rules, domain filter, keyword filter and custom rules configuration

Repeater

TCP/UDP package forward configuration

Port Forward

Port forward configuration

Static NAT

Static NAT configuration

Smartlink

Mode, connection and serial configuration, data collection and advanced configuration

Network Monitor

Network monitor configuration

VPN Configuration

GRE

GRE VPN configuration

PPTP

PPTP VPN configuration

L2TP

L2TP VPN configuration

IPSec

IPSec VPN configuration

EOIP

EOIP VPN configuration

N2N VPN

N2N VPN configuration

Open VPN

Open VPN configuration

System Management

System

System properties configuration

Administration

Router password, web access and SSH access configuration

Backup/Flash Firmware

Download and restore backup, firmware upgrade

Network Diagnostics

PING, TRACEROUTE and Nslookup

Device Reboot

Reboot and reboot timer configuration

industrial router

Items

Quantity

Router

1 pc

Power Adapter

1 pc

4G Antenna

1 pc

WiFi Antenna

1 pc

Cable

1 pc

Mounting Accessories

1 set

Quick Installation Guide

1 pc
