OVERVIEW
This series of product is highly-reliable and secure cellular router for industrial networking. This series of product includes the following two models:

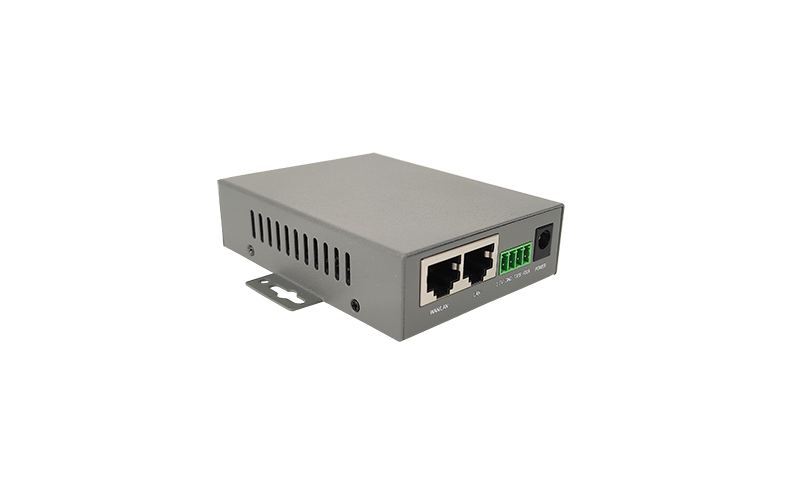

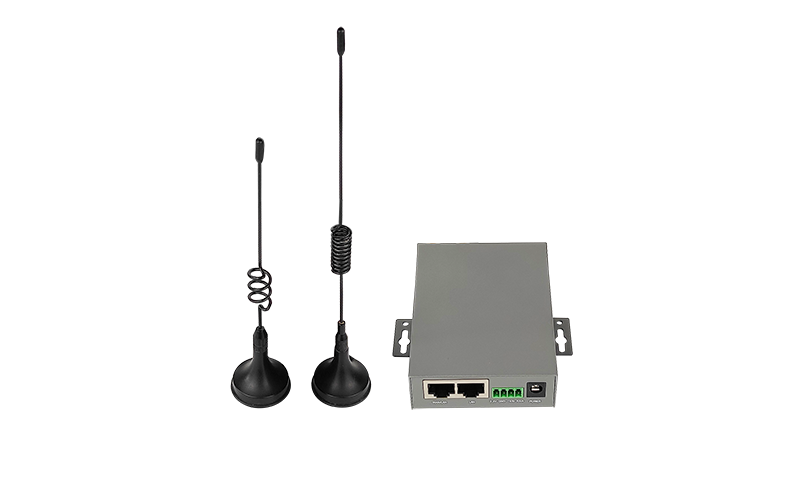

• URT6102 Industrial 2-port 4G Router
• URT6105 Industrial 5-port 4G Router
This series of product uses built-in industrial-grade 4G wireless module and WiFi module, with rich interfaces and strong scalability. With high-performance 32-bit professional network communication processors and embedded real-time operating systems, this series of product provides users with a safe, high-speed, stable and reliable 3G/4G wireless routing network. This series of product supports international FDD-LTE, TDD-LTE, WCDMA (HSPA+), CDMA2000 (EVDO), TD-SCDMA 3G/4G mobile multiband network standards. With rich functions and wide applications, they can provide users with convenient and high-speed network transmission function.
FEATURES AND HIGHLIGHTS
Abundant Interfaces
• URT6102:
1*10/100Base-TX RJ-45 LAN port, 1*10/100Base-TX RJ-45 WAN port
1*4G LTE antenna, 1*WiFi antenna
1*SIM/USIM card slot
1*RS232 communication serial port
• URT6105:
4*10/100Base-TX RJ-45 LAN port, 1*10/100Base-TX RJ-45 WAN port
1*4G LTE antenna, 1*WiFi antenna
1*SIM/USIM card slot
1*RS232 communication serial port
Cellular Features
• Supports multi-band connectivity with FDD-LTE/TDD-LTE/WCDMA(HSPA+)/ CDMA2000(EVDO)/ TD-SCDMA
• Supports detachable antenna
• LED indicators for data transmission status
Industrial Design
• Working temperature: -30℃~70℃
• Input voltage range: 7.5~32V DC
• Metal shell design
• Wall-mounted installation
Management Features
• Supports demilitarized zone (DMZ)
• Supports VPN management, including: GRE, PPTP, L2TP, IPSec, openVPN, N2N
• Wired network, mobile network and wireless network management
• Supports firewall management
• Supports hardware and software watchdog
UTEPO 4G Industrial Cellular Routers use built-in industrial-grade 4G and WiFi modules with rich interfaces and scalability. With high-performance 32-bit professional network communication processors and embedded real-time operating systems, the routers provide users with a safe, high-speed, stable, and reliable 3G/4G wireless routing network.
The products are also compatible with international FDD-LTE, TDD-LTE, WCDMA (HSPA+), CDMA2000 (EVDO), TD-SCDMA 3G/4G mobile multiband network standards, and provide convenient and high-speed network transmission with rich functions and wide applications.
|
Key Features |
● Abundant Interfaces Design
UTEPO 4G Industrial Cellular Routers support 4/1*10/100Base-TX RJ-45 LAN port + 1*10/100Base-TX RJ-45 WAN port + 1*RS232 communication serial port to provide more flexible accesses.
|
● Reliable Wireless Transmission UTEPO routers support two detachable antennas (4G/WiFi) and a SIM/USIM card slot, which provides a more flexible and easier way for users to create an instant network sharing service via wireless whenever in public places like transportation, outdoor event, etc. |
|
● Cost-effective VPN Solution
UTEPO 4G Industrial Cellular Routers provide complete data security and privacy feature for access and exchange of sensitive data. The full VPN capability of the routers including built-in PPTP, L2TP, OpenVPN, GRE, EOIP, and IPSec VPN functions with encryption and authentication makes the shared connection more secure and flexible. The IPSec VPN also makes the private tunnel over the Internet more secure for enterprises doing business transactions.
|
● Super Management Functions |
● Compact Size & Industrial Design |
|
UTEPO 4G Industrial Cellular Routers support management for VPN, firewall, wired network, mobile network, and wireless network, and provide functions as DMZ, QoS, hardware and software watchdog, etc. |
With compact size, it is convenient for deployment in limited spaces. Wide working temperature range design (-30℃~70℃) keeps the routers 7*24 stable operation in harsh environment. |
|
|
|
|
Application |
|
Related Models |
● 1*10/100Base-TX RJ-45 LAN port
● 1*10/100Base-TX RJ-45 WAN port
● 1*4G LTE antenna
● 1*WiFi antenna
● 1*SIM/USIM card slot
● 1*RS232
● Working temperature: -30℃~70℃
● 4*10/100Base-TX RJ-45 LAN port
● 1*10/100Base-TX RJ-45 WAN port
● 1*4G LTE antenna
● 1*WiFi antenna
● 1*SIM/USIM card slot
● 1*RS232
● Working temperature: -30℃~70℃
|
Items |
URT6102 |
URT6105 |
|
Hardware Specifications |
||
|
Copper Ports |
1*10/100Base-TX RJ-45 LAN port (Auto MDI/MDIX) |
4*10/100Base-TX RJ-45 LAN ports(Auto MDI/MDIX) |
|
Serial Interface |
1*RS232 serial interface (4-pin terminal, support DTU function) |
|
|
SIM Interface |
1*SIM/USIM card slot (1.8/3V) |
|
|
Cellular Antenna |
1*4G LTE antenna |
1*4G LTE antenna |
|
Connector |
Removable 4-pin terminal block for serial interface |
|
|
Forwarding Modes |
Store and Forward |
|
|
Reset Button |
Long press ＞10s to initialise the system |
|
|
Led Indicators |
1* power indicator, 1* WAN port indicator |
1* power indicator, 1* WAN port indicator |
|
Dimensions (W*D*H) |
95mm*70mm*25mm |
152mm*104mm*25mm |
|
Net Weight |
0.2kg |
0.4kg |
|
Installation |
Wall-mounted |
|
|
Material |
Metal shell |
|
|
Input Voltage |
7.5V~32V DC |
|
|
Rated Voltage |
12V/1A DC |
|
|
Power Consumption |
≤2.3W |
|
|
Multi Band Supports |
||
|
Europe |
FDD:B1/3/5/7/8/20 |
|
|
North America |
FDD:B2/4/5/12/13/17/B18/B25/26 |
|
|
South America |
FDD:B2/4/5/7/8/28 |
|
|
Japan/Korea |
FDD:B1/3/8/18/19/26 |
|
|
Africa |
FDD:B1/3/5/7/8/20 |
|
|
Australia |
FDD:B1/3/5/7/8/28 |
|
|
Environments |
||
|
Operating |
Temperature: -30℃~70℃ |
|
|
Storage |
Temperature: -40℃~85℃ |
|
|
Software Architecture |
||
|
System Status |
||
|
Overview |
System, 4G WAN status, network, memory, DHCP leases, wireless, associated stations overview |
|
|
Routes |
Active routes information, including ARP, IPv4 routes, IPv6 routes and IPv6 neighbours |
|
|
System Log |
System log records |
|
|
Kernel Log |
Kernel log records |
|
|
Realtime Graphs |
Real time graphs of load, traffic, wireless and connections |
|
|
Basic Network |
||
|
Switch |
Enable/disable VLAN |
|
|
Hostnames |
Host entris list |
|
|
Static Routes |
Static IPv4 Routes, Static IPv6 Routes |
|
|
Wired Network |
WAN interfaces, LAN interfaces and Management interfaces configuration |
|
|
Mobile Network |
Mobile network configuration |
|
|
Wireless Network |
Wireless network configuration |
|
|
Static Address |
Static leases configuration |
|
|
Advanced Network |
||
|
QoS |
WAN Interface and classification rules configuration |
|
|
DMZ |
DMZ host configuration |
|
|
Firewall |
Zone, traffic rules, domain filter, keyword filter and custom rules configuration |
|
|
Repeater |
TCP/UDP package forward configuration |
|
|
Port Forward |
Port forward configuration |
|
|
Static NAT |
Static NAT configuration |
|
|
Smartlink |
Mode, connection and serial configuration, data collection and advanced configuration |
|
|
Network Monitor |
Network monitor configuration |
|
|
VPN Configuration |
||
|
GRE |
GRE VPN configuration |
|
|
PPTP |
PPTP VPN configuration |
|
|
L2TP |
L2TP VPN configuration |
|
|
IPSec |
IPSec VPN configuration |
|
|
EOIP |
EOIP VPN configuration |
|
|
N2N VPN |
N2N VPN configuration |
|
|
Open VPN |
Open VPN configuration |
|
|
System Management |
||
|
System |
System properties configuration |
|
|
Administration |
Router password, web access and SSH access configuration |
|
|
Backup/Flash Firmware |
Download and restore backup, firmware upgrade |
|
|
Network Diagnostics |
PING, TRACEROUTE and Nslookup |
|
|
Device Reboot |
Reboot and reboot timer configuration |
|
|
Items |
Quantity |
|
Router |
1 pc |
|
Power Adapter |
1 pc |
|
4G Antenna |
1 pc |
|
WiFi Antenna |
1 pc |
|
Cable |
1 pc |
|
Mounting Accessories |
1 set |
|
Quick Installation Guide |
1 pc |
