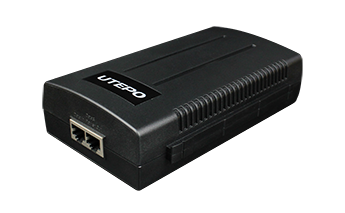

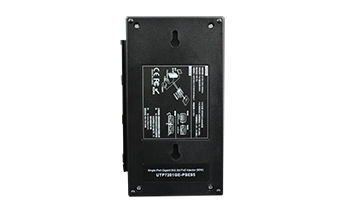

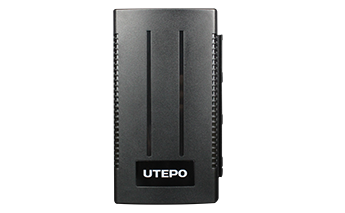

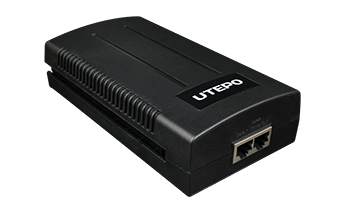

 Gigabit PoE Injector (95W)

Gigabit PoE Injector (95W)

UTP7201GE-PSE95
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

This is a single-port PoE injector with one Ethernet port, one PoE output port, and one AC power input port. It is compatible with mid-span and end-span PoE power method, the output power consumption can be up to 95W. It features:10/100/1000Mbps network port,100m transmission distance, 4kV lightning protection. it's an excellent choice for power supply and network transmission on PTZ speed dome, 11ac wireless AP, digital display system.


ADVANTAGES

√ PoE++ power supply standard, Output power consumption can be up to 95W.

√ IEEE 802.3af/at/bt, IEEE 802.3 10Base-T/100Base-TX/IEEE802.3ab 1000Base-T.

√ Working Temperature: -10℃~40℃.

√ 4kV lightning protection, 8kV ESD protection.

√ No fan, no noise, dust-proof.


PoE injectors connect non-PoE switches to PoE-powered devices via a network cable to provide power and data transmission. By eliminating the need to install additional power supplies for powered devices, PoE injectors effectively enhance network flexibility and scalability at a lower cost and allow equipment installation regardless of positions and existing network architectures.


To meet the power demand of more and more high-power devices, except 30W standard PoE injectors, UTEPO has also developed 60W, 90W, 95W PoE injectors to provide power supply and data transmission for smart dome cameras, PTZ cameras, 11ac wireless APs, LED lights, digital signage, etc.



Application




Key Features

IEEE 802.3af/at/bt
UTEPO bt PoE injectors are compatible with IEEE 802.3af/at/bt and support powering increasing-demand 15W, 30W, 60W, 90W PoE-powered devices.
pic
Flexible Networking, Easy to Expand
It can provide power and data transmission for powered devices at the same time. Great cost savings by effectively using the original equipment and retaining the original network architecture.
pic
Splicing Design
There are slot and bulgy junction set on opposite sides of the PoE injector, which enables you to combine them and made a neat line to the convenient management in case more injectors are installed.
pic
Excellent Performance of Protection and Anti-interference
Support 6kV surge protection and 8kV ESD protection, ensuring the stable operation.
pic

Recommended Models

Item

Description

Interface

Input Voltage

AC100V~240V

Data Input

1xRJ45

PoE Output

1xRJ45

PoE

PoE Power Method

Mid-span & End-span

PoE Power Output

DC 56V 95 watts

Output Ripple

<5%

PoE Pin Assignment

1/2/7/8(-), 3/6/4/5(+)

Ethernet Port

Communication Port

1xRJ45 Input

Transmission Rate

10/100/1000Mbps

Transmission Medium

Cat5e/6 Cable

Distance

100m (Max.)

Protection

Surge

2KV (Differential Mode), 4KV (Common Mode)

ESD

Direct discharge: 6KV, Air discharge: 10KV

Environment

Operating Temperature

-10℃~40℃

Storage Temperature

-30℃~70℃

Humidity (Non-condensing)

5~85%

Mechanics

Dimension (LxWxH)

169mm x 96.5mm x 42.5mm

Material

ABS Plastics

Color

Black

Weight

769g

95W poe injector

Designation

Quantity

PoE Injector

1

AC Power Cable

1

User Manual

1
