UTP5328S-PSD2000 is 24-Port Gigabit PoE++ 4-Port SFP L3 Managed Ethernet Switch.

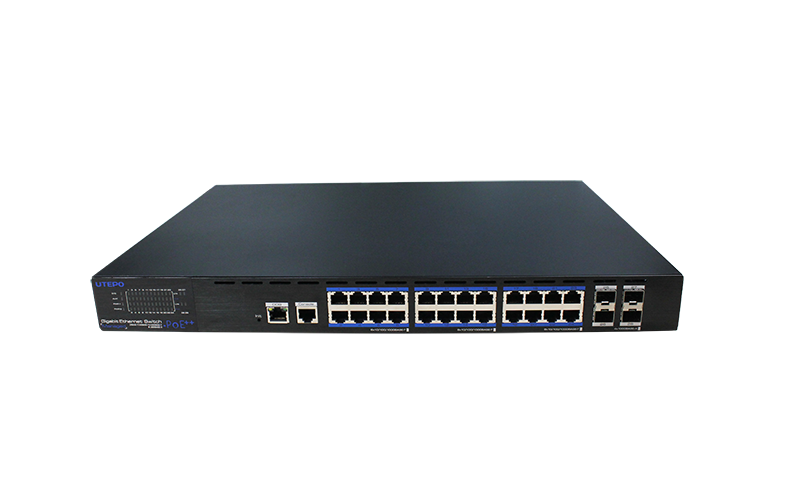

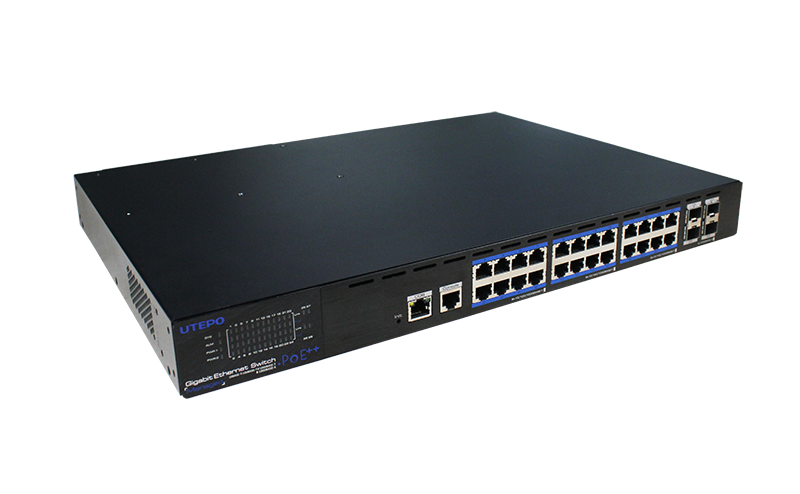

The switch provides 24 Gigabit downlink RJ-45 Ethernet ports and 4 Gigabit uplink SFP ports. It meets IEEE802.3af/at/bt standard. All downlink RJ-45 Ethernet ports support Power-over-Ethernet (PoE++) and deliver up to 90W power per port. The total PoE power budget is up to 1900W. The function can be configured via software. It has extensive L3 management functions and can be easily managed via a WEB GUI (HTTP/HTTPS), CLI (telnet/ssh/console), or SNMP.


Abundant Interfaces

• 24*10/100/1000Base-T RJ-45 ports

• 4*1000Base-X SFP ports

• 1*RJ-45 console port

• 1*OOB port (RJ-45)

Intelligent 802.3bt PoE Features

• 90W PoE per port

• 1900W PoE for whole switch

• Support Perpetual PoE

Uninterrupted PoE supply to the powered device during the restart of the switch.

• Support Quick PoE

When the switch is powered on, it supplies PoE to the powered device in seconds.

• Support PoE watchdog

Fast and Convenient Configuration by One-Key Smart

• CCTV: 1~24 ports are isolated while communication; optimize, flow control to make the video more fluent.

• Online: 24-hour online monitoring device. If a crash fault occurs, it will reboot automatically (PoE watchdog).

• Lock: Lock the authentication port device to prevent illegal access to the equipment and make the system more secure.

• Ring: Start Fast Ring group 1 (Fast Ring group: X1 and X2 uplink ports).

L3 Management Function



• Static Routing

• 802.1Q VLAN

• 802.1p QoS


• IPv6

• Fast Ring, self-healing

High Performance Design

• Redundant power supply

• 6kV surge immunity

• 6kV contact discharge, 8kV air discharge ESD protection

• Metal shell design

• Rack mounted / desktop / wall mounted

2000w poe switch

UTP5328S-PSD2000 provides 24 Gigabit downlink RJ-45 Ethernet ports and 4 Gigabit uplink SFP ports. All downlink RJ45 Ethernet ports support PoE++ and deliver up to 90W power per port, complying with IEEE 802.3bt, with a total PoE power budget up to 1900W. UTP5328S-PSD2000, with dual modular power supply slots expandability, supports AC and DC power module redundancy. Also, it has extensive L2+ management functions with routing features such as RIP, OSPF, etc., and can be easily managed via a WEB GUI (HTTP/HTTPS), CLI (telnet/ssh/console), or SNMP.

With great performance, this switch can be widely used in PoE lighting of smart buildings, enterprises, hotels, shopping malls, etc., or provide quick, safe, and cost-effective 90W PoE++ power sources to the devices such as thin clients, POS systems, PTZ cameras, digital signage.

What Can You Get?

90w poe switch

---  Smart Experience Enabled by Intelligent PoE  ---

IEEE 802.3af/at/bt, High Compatibility

Provide 24*10/100/1000Base-T PoE++ RJ-45 ports, with max 90W PoE power output per port and 1900W total PoE power budget. The switch has passed the professional PSE test to guarantee great compatibility on powered device.

ieee 802.3af/at/bt

Quick PoE

Provide power to connected powered device within short duration before even the switch forwarding starts up.

Perpetual PoE

Provide uninterrupted PoE supply to the powered device during the restart or update of the switch.

---  Better Management Provided by Advanced Functions  ---

Multi-functional Alarm

Support alarm for power supply, PoE, network, fan, and temperature to ensure the high reliability of the whole system.

alarm function

Abundant L3 Management

Except for basic L2 management functions (802.1Q VLAN, 802.1p QoS, SNMP, IPv6, self-healing, etc.), the UTP5328S-PSD2000 also supports RIP, OSPF, and Static Routing.

One-key Smart Technologies

Support one-key smart technologies (CCTV, Ring, Lock, Online/PoE Watchdog)

---  Reliable Operation Ensured by Unique Design  ---

AC and DC Redundant Power Supplies

The UTP5328S-PSD2000 comes with an AC power supply module. And it also could support combination of 1*AC + 1*DC, or 2*AC to increase flexibility.

redundant power supplies

Excellent Heat Dissipation

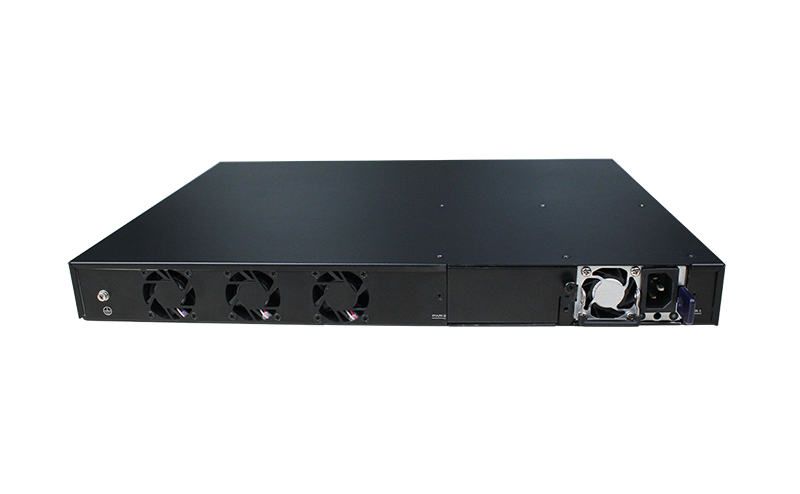

Equipped with two temperature-controlled fans in the rear, and air vents in front to ensure excellent heat dissipation.

Strong Protection Performance

Support 6kV surge protection and 8kV ESD protection to ensure normal working in thunder weather.



Hardware Specifications

Downlink Ports

24*10/100/1000Base-T PoE++ RJ-45 (Auto-MDI/MDI-X)

Uplink Ports

4*1000Base-X SFP

Console Port

1*RJ-45 console port

OOB Port

1*100Base-TX RJ-45 port

Init Button

Short press to restart the switch, long press >5s to initialize the system

Led Indicators

2*Power Indicators, 1*System Indicator, 1*Alarm Indicator
24*Downlink Port Link Indicators, 24*Downlink Port PoE Indicators, 4*Uplink Port Link Indicators


Cat5e or better

Dimensions (W*D*H)


Net Weight

Standard with 1 AC power module: 5kg, AC module: 1 kg, DC module: 0.3kg

Input Voltage

Option 1

AC+AC Redundant power supply, both pluggable
1 AC power module comes standard, another one needs to be purchased separately
AC1: 100~127V 50~60Hz 13A max, Rated output power: 1000W max
200~240V 50~60Hz 10A max, Rated output power: 2000W max
AC2: 100~127V 50~60Hz 13A max, Rated output power: 1000W max
200~240V 50~60Hz 10A max, Rated output power: 2000W max

Option 2

AC+DC Redundant power supply, both pluggable
AC power module comes standard, DC power module needs to be purchased separately
AC: 100~127V 50~60Hz 13A max, Rated output power: 1000W max
200~240V 50~60Hz 10A max, Rated output power: 2000W max
DC: Rated power: 54V;Power range: 53.5V ~57V, 40A, Rated output power: 2000W max

Power Consumption

≤30W(not include PoE)


Rack mounted/desktop/wall mounted


Metal shell

Switch Property

Forwarding Modes

Store and Forward

Switching Capacity

56Gbps / non-blocking

Packet Forwarding Rate


MAC Table

16k, supported auto learning

Packet Buffer


Jumbo Frame



PoE device

Endpoint PSE (Power Sourcing Equipment)

PoE Standard

IEEE 802.3af/at /bt

PoE Pin Assignment

1/2(-), 3/6(+), 4/5 (+), 7/8 (-)

PoE Power Output

54V DC

PoE Budget

90W max for each port, 1900W for whole switch

Standard Conformance

Standards Compliance

IEEE 802.1p Priority Queuing

IEEE 802.1Q VLAN tagging

IEEE 802.1D Spanning Tree Algorithm

IEEE 802.1w Rapid Spanning Tree

IEEE 802.1x Authentication

IEEE 802.3ad Link Aggregation

IEEE 802.3x Flow Control

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3z Gigabit Ethernet

IEEE 802.3af Power Over Ethernet

IEEE 802.3at Power Over Ethernet

IEEE 802.3bt Power Over Ethernet



FCC 47 CFR Part 15 Class A

EN55032 Class A

IEC61000-4-2,Level 3: Contact Discharge: ±6kV,Air Discharge: ±8kV

IEC61000-4-3,Level 2: 3V/m

IEC61000-4-4,Level 2: 1kV

IEC61000-4-5,line to earth: 6kV

IEC61000-4-6,Level 2 (0.15MHz~80MHz)



EN 62368-1:2014

EN 62328-A11:2017



Temperature: -5~45℃

Relative Humidity: 5%~95% (Non-condensation)


Temperature: -40℃~85℃

Relative Humidity: 5%~95% (Non-condensation)




System State

System Status

• Device Name, MAC Address,Firmware Version and Hardware Version

• System Time and Update Time

• Memory, Temperature, CPU and Power Information

• SFP Information

Traffic Statistics

• Sent Frame and Received Frame Statistics

MAC Address Table

• MAC Address Table and Sort Type

Port Configuration

Port Setting

• Port State, Port Speed, Duplex Mode, Traffic Control and Port Range

Rate Limit

• Enable/disable

• Port Range, Input Speed and Output Speed Limit

Storm Control

• Port Range, Broadcast Storm, Multicast Storm and Unknown Unicast Storm

Port Isolation

• Port Isolation or Normal mode

• Port Range

LLDP Configuration

• Enable/disable

• Hold Time and Interval Time

• LLDP Port Configuration

LLDP Neighbors

• Total Entries Displayed

PoE Setting

• Power Setting

• Power Status

• Port Status and Control

Ethernet Switch

Link Aggregation

• Aggregated Load Pattern Setting, Trunk Name,Aggregation Pattern Setting and Port Range

802.1Q VLAN

• Port Range, Link Type,PVID, VLAN-allowed and VLAN-untagged

802.1p QoS

• Enable/disable QoS Setting

• QoS Priority

• Enable/disable 802.1p QoS Setting

• 802.1p Mark Range and Priority


• WRR Bandwidth Weights Settings (8 Queues)

Voice VLAN

• Enable/disable

• Mode Setting, Aging Time, Port, MAC, MASK and Description Setting

IP Service

Interface IP

• Network Interface(VID)

• Static IP/DHCP Selection

• IPv4 andIPv6 Address

DHCP Server

• Enable/disable

• DHCP Server Global Setting

• Pool Name, Network Interface(VID),Gateway/ Subnet, Start IP Address and Max Client Number

DHCP Snooping

• Enable/disable

• Port Configuration

IP Routing


• Enable/disable

• Protocol Type and Network Interface


• Enable/disable

• OSPF Host ID, Region ID, Region Type and Network Interface

Routing Table

• Target Network, Next Hop Address, Path Consumption

IP Multicast

IGMP Snooping

• IGMP Configuration

• Static Multicast Table Configuration

Security Configuration

802.1x Authentication

• Enable/disable

• Timing Update Authentication, Radius Server, Radius Server Setting and Server Port Setting

• Port Setting

Local Radius Setting

• Radius User Settings


• Local/radius Selection

Static Address Lock

• Enable /disable

• MAC Address, Vlan ID and Port Setting

MAC Dynamic Aging

• Aging Time Setting


• MAC ACL Configuration

IP Stand ACL

• IP ACL Configuration

IP Extend ACL

• IP Extend ACL Configuration


Rapid Spanning Tree

• Enable/disable

• STP Version, Device Priority,Message Sending Period, Message Maximum Lifetime and Port State Transition Delay

• This Bridge Update Message

• Port Configuration

Fast Ring Protect

• Enable/disable

• Fast Ring Network Group 1

• Fast Ring Network Group 2

Loopback Protect

• Enable/disable

• Protect Automatic Recovery, Disable Loop Port Time and Port Range


• MD Name, MA Name, Maint Domain Level, MEP ID, RMEP ID, Port and CCM Interval


• Ring Number, East Interface and West Interface

ERPS Instance

• Enable/disable

• Name, ID,Ring Number, Level,RAPs Vlan Owner Interface, Subring Block and Associated Instance

VRRP Setting

• Virtual Route VRRP Setting

Network Diagnosis


• ICMPv4 Checking


• ICMPv6 Checking


• Traceroute

Alarm Management

Alarm Host

• Temperature, Power Supply, Fan, Port Network and Port PoE Alarm Setting

System Management

Port Mirroring

• Enable/disable

• Monitor Port, Mirror Port Range and Collect Data Setting


• Enable/disable

• SNMP Gateway, SNMP Version, Read-only Group Name and Read and Write Group Name Setting

• SNMP V3 Setting: User Name, Read and Write Mode Identity Authentication, Verify Password, Encryption Protocol, Encryption Password


• Enable/disable

HTTP Setting

• Http/https Selection


• Local Time Setting

• Using NTP Setting


• Enable/disable

• Show Type and Information Processing


• Restore Factory Value, System Reboot,

• Download Configuration File

• Upload Configuration File

• System Upgrade

User Setting

• Access Privilege

• User Account Setting

Timing Restart

• Timing Restart by Day/ Week/ Month

One Key Smart

• CCTV, Device Lock, Fast Ring, Device Online




1 set

AC Power Module and Cable

1 set

DC Power Module and Cable (Optional)

1 set

Mounting Accessory

1 set

Quick Installation Guide

1 pc
