 1CH HD Video & Power UTP Transceiver_HD5(Off Production)

1CH HD Video & Power UTP Transceiver_HD5(Off Production)

UTP101PV-HD5
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

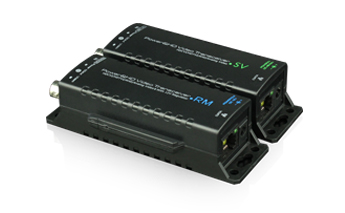

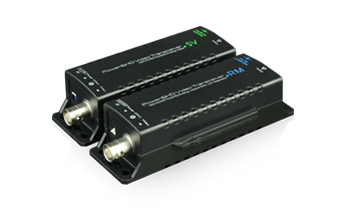

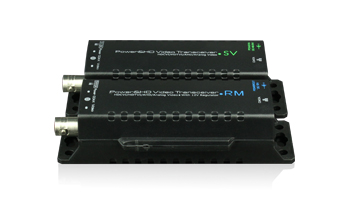

The 1ch HD analog video & power transceiver transfers real-time analog video signal, supplies stable 12V/0.8A DC power for the remote cameras through Cat5/5e/6 cable, and passes back video signal up to 500m. It is compatible with analog video signals of CVBS, HDCVI, HDTVI, and AHD. The transceiver consists of SV unit connecting with DVRs and RM unit with cameras. It features protection of short-circuit & over-current & over-temperature, over-current LED, and independent power protection. The transceiver with small volume and joinable design fits easily in many locations. (e.g., villa, super market, office, hotel)

Advantage

Transfer video and power signal in real-time via single cable, active video transmission solution, max. 500m transmission distance

HDCVI, HDTVI, AHD, CVBS signals 4in1 full compatible design

Output steadying voltage 12V/0.8A at RM side

Short-circuit, over-current, over-temperature protection and over-current abnormity LED indication

Superior surge immunity, ESD protection

Combined connection available, optional MIT rack, which satisfy multi channels centralized application

Item

Parameter

RM Unit

SV Unit

Function

Transfer Signal Number

1x Group(Video+DC Power)

1x Group(Video+DC Power)

Transmission Distance (Max.)

500m

Power Supply

Voltage Input

DC15-54V

DC48-54V

Voltage Output

12VDC

DC48-54V

Power Consumption(Max.)

10W

Optional

Video Performance & Connector

Video Connector

1×BNC(Male)

Ethernet Port

1×RJ45

Compatible Video Type

HDCVI,HDTVI, AHD, CVBS Signal

Transfer Bandwidth

0-75MHz

RJ45 Indicator

Green Light Solid on: Working Normal; Off: Not Work or Fault

Yellow Light Solid on: Over-current, Short-circuit; Off: Working Normal

Anti-interference

60dB

Protection Level

Surge Protection of Power Port

500V Differential-mode   Per:IEC61000-4-5

Surge Protection of Coaxial Port

2KVDifferential-mode Per:IEC61000-4-5

Surge Protection of Ethernet Port

Signal Line-pair: 2KV Differential-mode Power Line-pair : 500V Differential-mode

Per:IEC61000-4-5

ESD Protection

1a Contact Discharge 6KV 1b Air Discharge 8KV

Per:IEC61000-4-2

Operation Environment

Operation Temperature

-10℃-55℃

Storage Temperature

-45℃-75℃

Humidity

0-95%(Non-condensing)

Mechanics

Dimension

113mm×45.5mm×29mm

Material

Refractory ABS Plastics

Color

Black

Weight

65g

Video Transceiver

Video Transceiver

Designation

Quantity

RM Unit

1

SV  Unit

1

DC Jump Wire

1

User Manual

1
