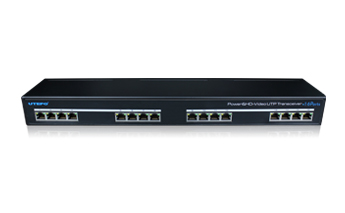

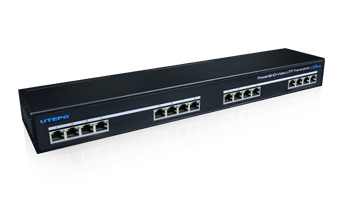

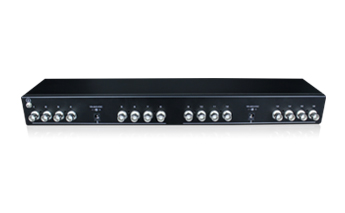

16 ports power & HD video UTP transceiver can transfer HD video and power in up to 300m through Cat5/5e/6 cable; it provides power(steady DC12V) for remote camera, meantime return video signal. It supports HDCVI, HDTVI, AHD and analog video; each power channel has over-current, Short circuit, over-temperature protection and over-current abnormal LED indication; Small and delicate appearance is suitable for home, office, supermarket, hotel etc.
ADVANTAGES
• Transfer video and power signal in real-time via single cable, passive video transmission solution, max. 300m transmission distance.
• HDCVI, HDTVI, AHD, CVBS signals 4in1 full compatible design.
• Output steadying power 12W at camera side.
• Short-circuit, over-current, over-temperature protection and over-current abnormity LED indication.
• Superior surge immunity, ESD protection.
|
Model |
UTP116PV-HD2 |
|
|
Power |
Power Supply |
Power adapter |
|
Input Voltage |
DC 15-24V |
|
|
Consumption |
192W |
|
|
Port Parameter |
Video Format |
CVBS(PAL,NTSC,SECAM ) HDCVI/AHD/HDTVI |
|
Transmission Distance |
HDCVI 720P:400m HDCVI1080P:200m |
|
|
HDTVI 720P/1080P/300W:320m |
||
|
AHD 720P/960P/1080P:300m |
||
|
Analog Video:500m |
||
|
Cable |
PV:Cat5/5e/6 |
|
|
Video:Coax (above 75-4) |
||
|
Status Indicator |
UTP116PV-HDS2 |
On RJ45:Green LED indicates power output |
|
Yellow LED indicates power overload |
||
|
UTP101PV-HDTS |
On RJ45: Green and yellow LED indicates power input |
|
|
Protection |
ESD |
Contact discharge:6KV |
|
Air discharge:8KV |
||
|
Standard: IEC61000-4-2 |
||
|
Surge |
2KV Standard:IEC6100-4-5 |
|
|
Operation Environment |
Operating Temperature |
-10℃～45℃ |
|
Storage Temperature |
-40℃～75℃ |
|
|
Humidity(Non-condensing) |
0～95% |
|
|
Mechanical |
Dimension(LxWxH) |
430mm×83mm×44.5mm |
|
Weight |
6kg |
|
|
Certification |
CE, FCC, ROHS |
|
.jpg "transceiver")
.jpg "UTEPO, transceiver")
|
Designation |
Quantity |
|
UTP116V- HDS2(DVR side) |
1 |
|
UTP101PV-HDTS(camera side) |
16 |
|
Power Adapter(DC24V4A) |
2 |
|
User Manual |
1 |
