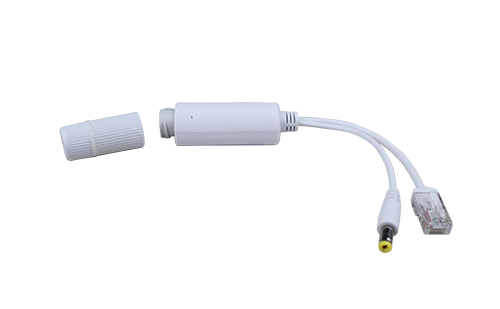

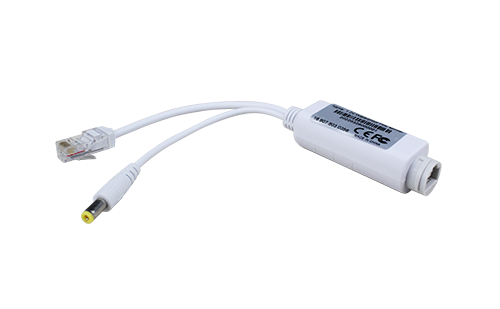

PoE Splitters are compliant with IEEE802.3af standard, which can split data and power from PoE signal. It can split Ethernet and power from ethernet cable for these devices which can not support PoE. It can work with standard PoE Switch or PSE device, compatible with mid-span and end-span. It is widely used in security urveillance and network project.
FEATURES
● IEEE 802.3af Power over Ethernet Standard Compliance
● Compatible with mode A (End-Span) and mode B(Mid-Span)
● IP66 waterproof and dustproof
● Excellent circuit isolation protection
● Support the short circuit,overvoltage protection
● 1500V high voltage isolation
UTEPO new-launching PoE splitters split the PoE signal to RJ-45 port & DC power port, RJ-45 port & USB Type-C power port, RJ-45 port & Micro USB power port, which are born for application to different-interface terminals, such as Raspberry Pi series, mobile phone, tablet, Dropcam, IP camera, Echo Dot, and more. While making PoE more widely available and the rest free PoE ports are full of used, it also makes your project wiring a breeze.
|
Key Features |
● Compatible with IEEE 802.3af PoE devices
The splitters work with IEEE 802.3af PoE Switch or PSE device, compatible with mid-span and end-span, and can split secure PoE (IEEE 802.3af) to 10/100Mbps data and power of 12V/1A(DC), 5V/3A (Type-C), 5V/2.4A (Micro USB).
● Run your DC/USB-C/Micro USB devices more stable and safer
With secure PoE power input + design of short circuit & over voltage protection + 1500V high-voltage isolation, the splitters could run your devices more stable and safer.
● IP66 (waterproof and dustproof), only for model UPD1101-PDA-P
UPD1101-PDA-P comes with a waterproof and dustproof joint with a design of IP66 level. Use this PoE splitter anywhere without worrying about rain and dust.
● Easy installation, Plug and play
Simply connect the ethernet and power cables and set it up in seconds without any extra configuration.
|
Application |
|
UTEPO PoE Splitters |
|
Item |
PoE Splitter |
|
|
PoE |
Protocol |
IEEE803.2af |
|
Mode |
Support Mode A (End-Span) and Mode B (Mid-Span) |
|
|
Input |
PoE 37~57V |
|
|
Output |
12V/1A |
|
|
TRNF |
1/2(+),3/6(-) or 4/5(+),7/8(-) |
|
|
Ethernet |
Interface |
1× input RJ45,1× output RJ45,1× DC output |
|
Transmission Speed |
10/100Mbps |
|
|
Transmission Medium |
Cat5/5e/6 Standard Network Cable |
|
|
LED Indicator |
Status |
Yellow: PoE |
|
Environmental |
Working Environment |
-20℃~50℃, 10~95% Non-condensing |
|
Storage Environment |
-30℃~60℃, 5~95% Non-condensing |
|
|
Mechanical |
Dimension (L×W×H) |
66×24×22mm |
|
Material |
Plastic |
|
|
Color |
White |
|
|
Items |
Quantity |
|
PoE Splitter |
1 pc |
|
User Manual |
1 pc |
