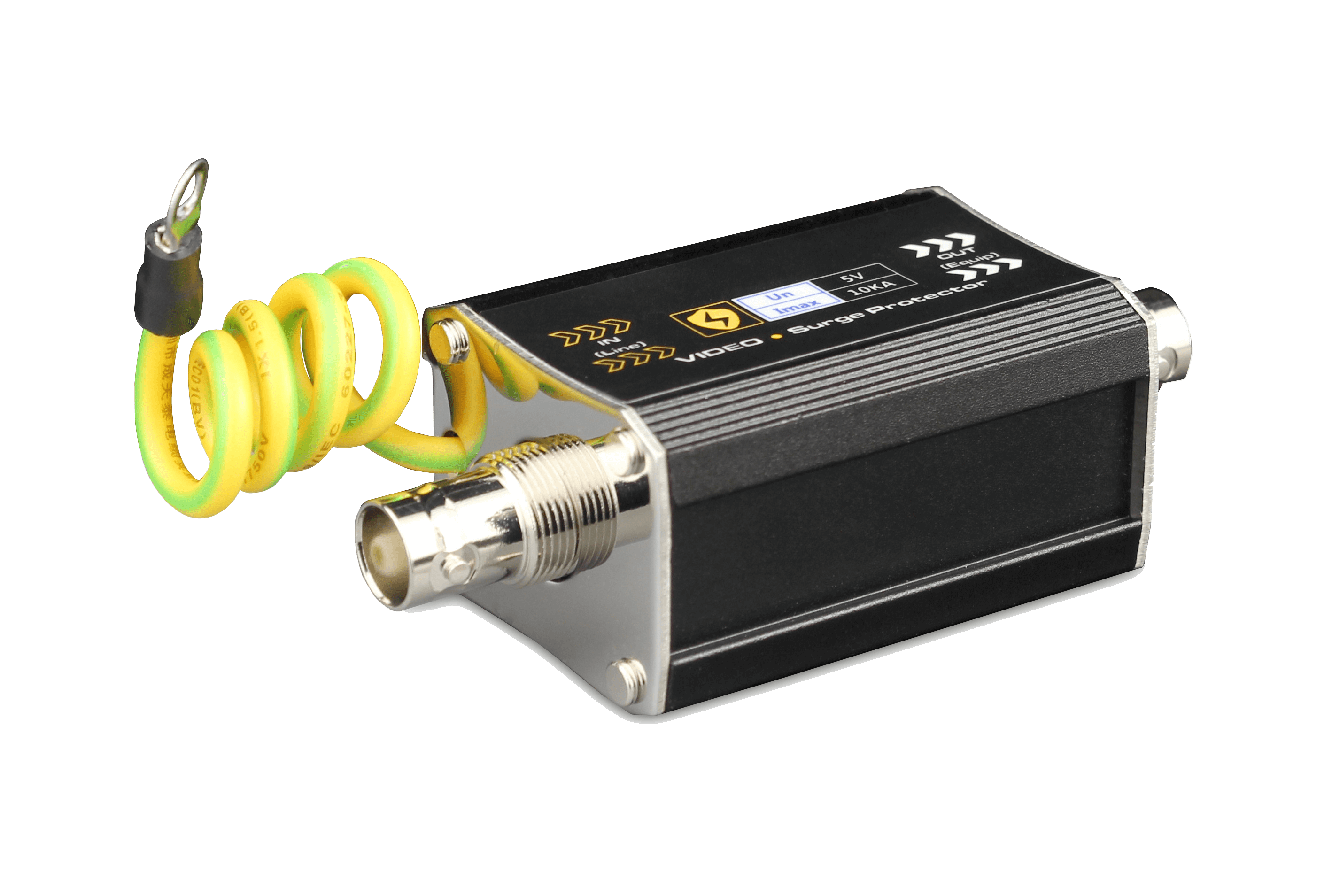

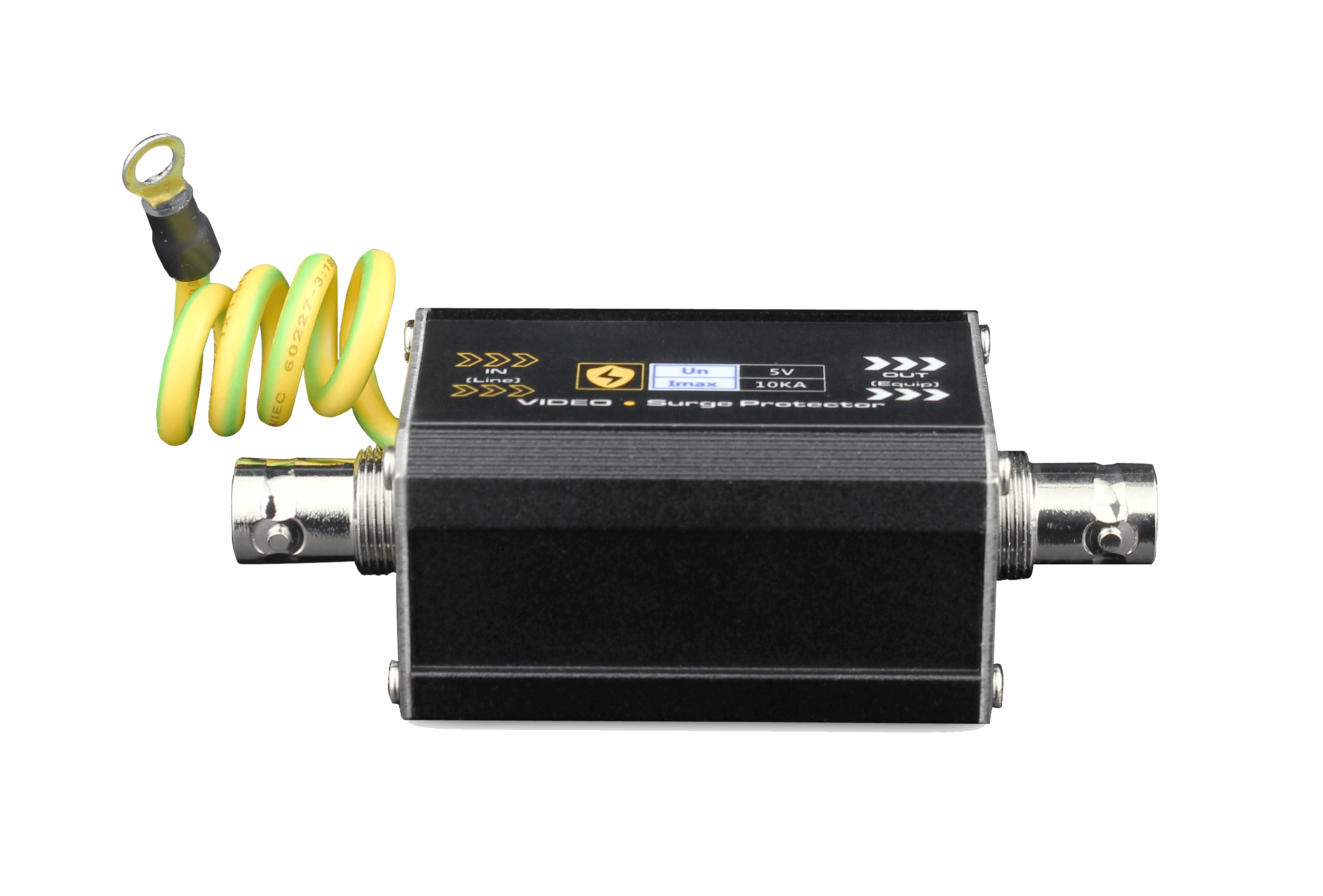

 Video Surge Protector

Video Surge Protector

USP201V
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

The video surge protector meets the provisions of national standard IEC61643-21:2000, protecting the equipment from damage due to monitor system signals induced overvoltage, operating overvoltage and electrostatic discharge. It features multilevel protection, large flow capacity, low voltage limited, quickly response and low insertion loss.


ADVANTAGES

• Multi-Level protection.

• Large flow capacity.

• Low voltage limited.

• Quickly response.

• Low Insertion loss.

Item

Description

Video

Working Voltage (Un)

8V

Nominal Discharge Current (In)

3KA

Maximum Discharge Current (Imax)

5KA

Protection Level (Up)

40V

Rate

Video: 30Mbps

Response Time

1ns

Insertion Loss

0.5dB

Connector

BNC and Green Terminal

Rated Load Current

DC500mA

Environmental

Operating Temperature

-40℃~85

Storage Temperature

-40℃~75

Humidity (Non-condensing)

0~95%

Mechanical

Weight

100g

Dimension (L×W×H)

70mm×37mm×28mm

Outer Shell

Aluminum

surge protector
