This series contains the following types:

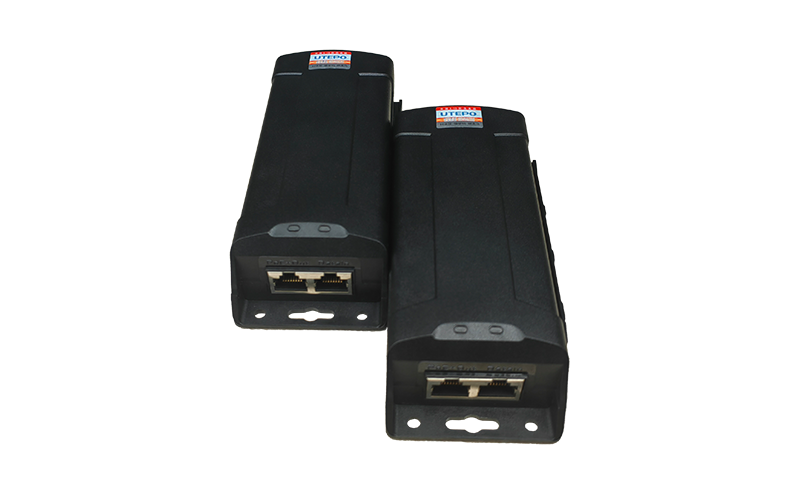

Single-Port Multi-Gigabit 802.3bt PoE++ Injector (60W) UPI3301-PSC

Single-Port Multi-Gigabit 802.3bt PoE++ Injector (90W) UPI3301-PSD

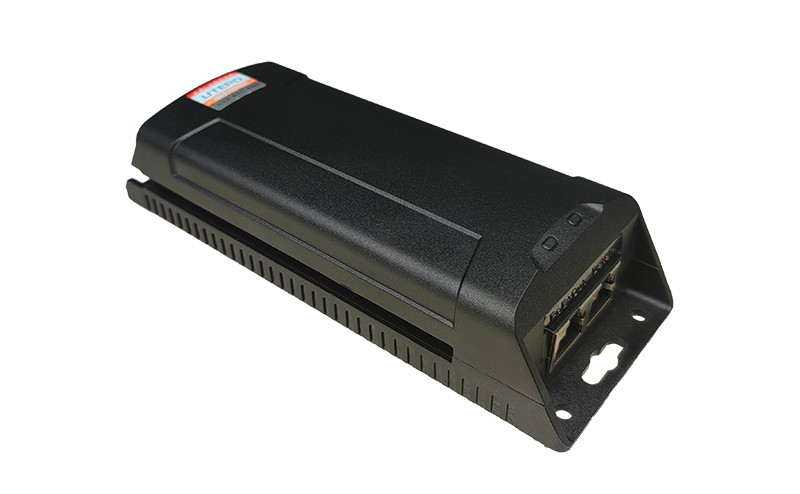

The product is a 60W Gigabit PoE Injector. It is a high-power PoE injector. They can easily achieve power over Ethernet without changing the original network equipment. The 60W Gigabit PoE Injector meets IEEE 802.3af/at/bt standard. The PoE output port can deliver up to 60W power. It supports a 10/100/1000/2500Mbps transmission rate, and the transmission distance is up to 100m. The injector is designed with a fanless, dust-proof shell, a wide operating temperature range from -5℃~45℃, 6kV surge protection.

The injector has high conversion efficiency (90%), lower heat radiation, and is plug-and-play. They are a good choice for Ethernet power supply in security engineering and integrated wiring engineering.


● IEEE 802.3bt/at/af

● The PoE output port can deliver up to 60W power

● Support 10/100/1000/2500Mbps transmission rate

● The transmission distance is up to 100m

● Fanless design

PoE injectors connect non-PoE switches to PoE-powered devices via a network cable to transmit power and data. By eliminating the need to install additional power supplies for powered devices, PoE injectors effectively enhance network flexibility and scalability at a lower cost and allow equipment installation regardless of positions and existing network architectures.

The UPI3301-PSC & UPI3301-PSD are single-port 802.3bt PoE++ injectors, combining electrical power with a 2.5GBASE-T network connection to offer a 2.5Gbps PoE++ network signal with a maximum of up to 60W or 90W of power output over Ethernet cables. The series offers more PoE applications, such as LED lighting, PTZ cameras, AP, thin client, digital signage, etc. In addition, it solves the problems of difficult power supply, high risk of power distribution, and complex networking for decentralized equipment deployment.

IEEE 802.3bt PoE++

The 802.3bt PoE++ injectors supply PD devices with max PoE power of 60W or 90W, which complies with IEEE 802.3af/at/bt standard.

Ultra Fast 2.5Gbps Networking

The products come with 2.5GBASE-T RJ-45 ports providing network speeds of up to 2.5Gbps over existing cables, which meets the needs of high-speed Internet access, such as all-in-one PC, WiFi 6 AP, etc.

Flexible Networking, Easy to Expand

●The products can provide power and data transmission for DD devices at the same time.

●Used with the PoE repeater, it can break through the 100m transmission distance limit and effectively extend the PoE network transmission distance.

●Used with the PoE splitter, it can provide data transmission and DC power for non-PoE terminal devices and cost savings by effectively using the original equipment and retaining the original network architecture.

Easy Installation & Compact Size

It is easy to install the PoE injector through the plug-and-play way without any software configuration. UTEPO PoE injectors also come in a compact housing, making them flexible in installation space.

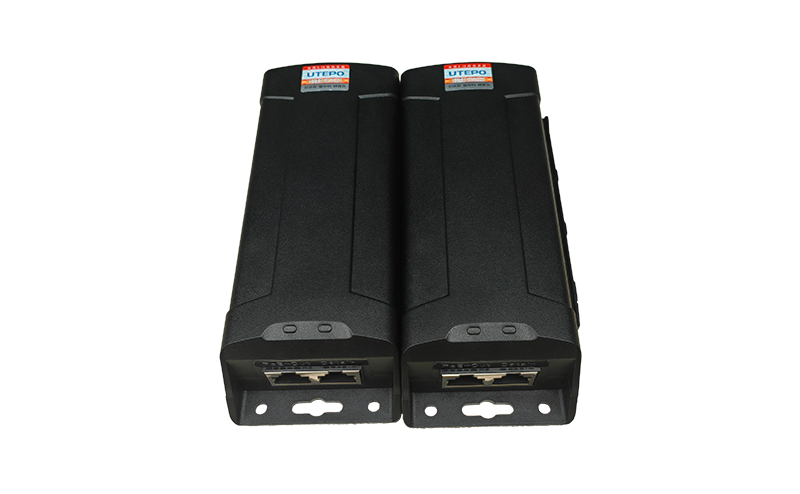

Splicing Design

There are slot and bulgy junctions set on opposite sides of the PoE injector, which enables you to combine them and make a neat line for the convenient management in case more injectors are installed.

Excellent Performance of Protection and Anti-interference

Support 6kV surge protection and 8kV ESD protection, ensuring the stable operation.




Hardware specifications


1*10/100/1000/2.5GBASE-T PoE++ RJ-45(Auto-MDI/MDI-X)

1*10/100/1000/2.5GBASE-T RJ-45(Auto-MDI/MDI-X)

Input Voltage

100~240V AC

Power Consumption


LED Indicator

1*power indicator

1*PoE indicator

Dimensions (L*W*H)


Net Weight




ABS plastic






PoE Standard

IEEE 802.3af/at/bt

PoE Power Supply Type


PoE Pin Assignment

3/6/4/5(+), 1/2/7/8(-)

PoE Budget

60W max

90W max



IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV

IEC61000-4-3, Level 2: 3V/m

IEC61000-4-4, Level 2: 1kV

IEC61000-4-5, Line to earth: 6kV

IEC61000-4-6, Level 2(0.15~80MHz)


-5°C~45°C, 5%~85%(Non-condensation)


-30°C~70°C, 5%~85%(Non-condensation)



PoE Injector


AC Power Cable


Mounting Accessory


Quick Installation Guide
