OVERVIEW

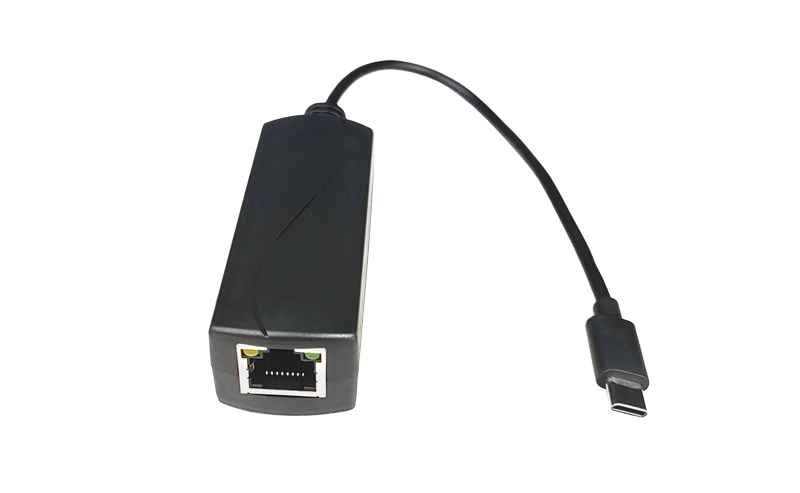

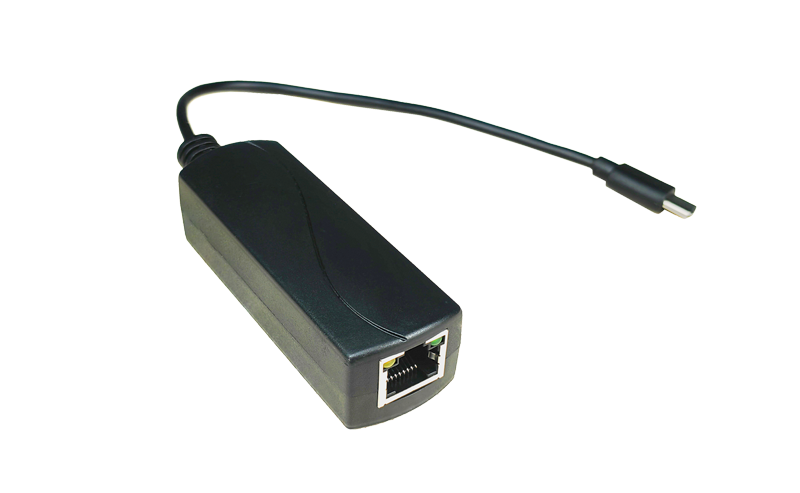

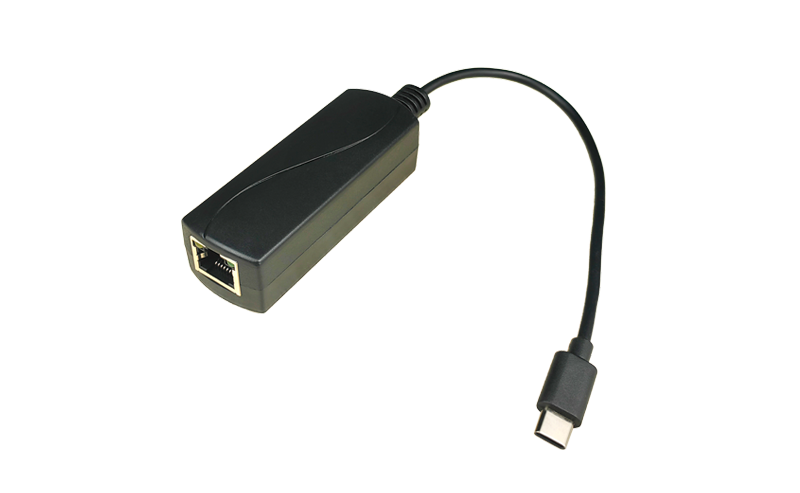

The product is PoE to USB-C Digital Power & Data Adapter.
It meets IEEE 802.3af standard, which adopts safe low-voltage input. USB-C can provide your mobile devices with a safe quick charge and network at the same time.
FEATURES AND HIGHLIGHTS
● IEEE 802.3af
● USB-C: up to 5V/2A quick charge, compatible with PD3.0, 100Mbps network
Compatible with IEEE 802.3af, the UPDS3101-PDA provides wired 10/100Mbps Ethernet through the same USB-C port that power is being outputted, allowing both charging power and data to be available via a single USB-C connection, which brings users such as games, live streaming, movie lovers, office, etc., smoother Internet and a better charging experience.
● Plug & Play
1*RJ45 Input Port (10/100Mbps, PoE) + 1*USB-C Output Port provide a reliable, steady charging power and data simultaneously for your smartphones and tablets.
● More Stable and Faster Connections
UPDS3101-PDA efficiently provides WIRED 10/100 Mbps Ethernet through the same USB-C port that power is being outputted, which allows you to charge your devices while enjoying a stable and high interference-resistant wired network connection.
● Pover Over Ethernet (PoE)
Integrate seamlessly with a variety of auto-sensing 802.3af PoE switches or injectors. A cost-effective way to add the safe PoE support to USB-C powered devices and make full use of PoE PSEs.
● PD3.0 Quick Charge
Compatible with PD3.0, UPDS3101-PDA supports quick charge up to 5V/2A and allows you to charge smartphones and tablets while using them.
● Enjoy a Better Online Entertainment
It speeds up the Internet connection and charging effects for different demands.
● Applications
● Specification
|
Items |
UPDS3101-PDA |
|
Hardware specifications |
|
|
Interface |
1*10/100Base-T PoE RJ-45(Auto-MDI/MDI-X) |
|
Output |
5V/2A DC |
|
Material |
Plastic |
|
PoE |
|
|
PoE Standard |
IEEE 802.3af |
|
PoE Pin Assignment |
1/2(+), 3/6(-) |
|
Reliability |
|
|
Operating |
0°C ~40°C, 5%~95%(Non-condensation) |
|
Storage |
-10°C ~50°C, 5%~95%(Non-condensation) |
|
Items |
Quantity |
|
Digital Power & Data Adapter |
1 |
|
Quick Installation Guide |
1 |
