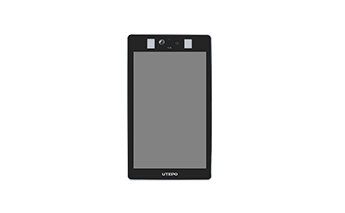

Combining with technology of Infrared temperature measurement and deep-learning facial recognition, TS3080-AI can support infrared temperature measurement, voice alarm, body temperature statistics, abnormal body temperature logging & reporting, etc. TS3080-AI can do facial recognition and measurement with fast-speed, long-distance, accurate, low error. It is mainly used to measure temperature each person each time in the scene of with fewer people.
ADVANTAGES
• Built-in non-contact thermal temperature measurement module and biometric measurement system
• The range of temperature measurement is from 35℃ to 42℃ with deviation of ±0.3℃
• Support voice alarm about abnormal body temperature
• Built in MEGVII's FACE++, the deep-learning facial recognition technology
• Support face database of 50,000 pictures, 100ms fast identification

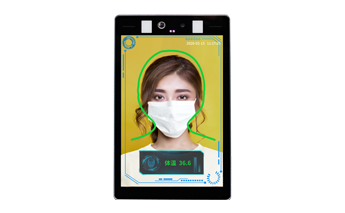

• Support face recognition, face mask recognition, body temperature measurement
• Excellent environmental adaptability to low light and strong backlight, support automatic exposure on face
• Support information recording of recognition result and body temperature to keep the traceability
• 1/2.8'' 2MP line-by-line scanning image sensor, excellent low illumination
• 8 inch LCD display screen, effective pixels: 1920*1080 @30fps
• Support 2D, 3D digital noise reduction technology, clean picture, small noise
• Support H.265+ /H.265 / H.264 / MJPEG video compression algorithm, multi-level video quality configuration, coding complexity settings
• Support Linux, with stable and extendable software architecture

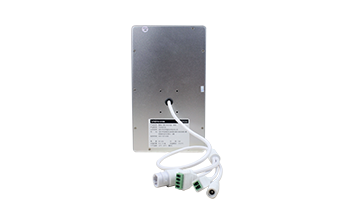

• Rich port design with Ethernet port, Wiegand port, relay port
• Power consumption: 12W

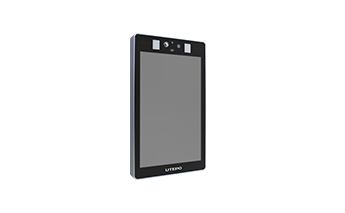

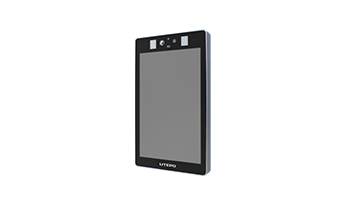

• Ultra-thin all-aluminum alloy metal casing with stylish design

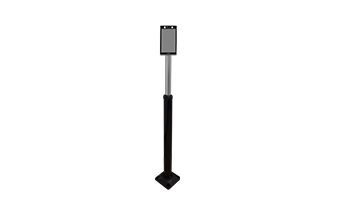

• Support installation on gate machine, pole and wall
|
|
Item |
Specification |
|
CPU |
ARM Cortex A9 |
|
Display Screen |
8 inch LCD |
|
Operation System |
Linux |
|
Thermal Parameters |
|
|
Sensor |
Thermal image infrared temperature sensor |
|
Temperature Measurement |
Range: 35℃~42℃，Deviation: ±0.3℃ |
|
Detect Distance |
30cm~ 50cm |
|
Visible Light Parameters |
|
|
Lens |
Focal length: 1.8mm. Filed angle: 118° |
|
Minimum Illumination |
0.005Lux@F1.2 color pattern |
|
Dynamic Range |
≥120dB |
|
SNR |
≥46dB（AGC OFF） |
|
Exposure Mode |
Program mode (customize shutter interval), shutter mode (1/5-1/20,000s), support slow shutter |
|
White Balance |
Automatic, indoor, outdoor, sodium lamp mode, manual |
|
DNR |
DNR,3DNR |
|
Day-night Mode |
Fixed color |
|
Image and Compression |
|
|
Video Compression |
H.265 Main Profile / H.264 High profile / M-JPEG |
|
Max Resolution |
1920x1080@30fps |
|
Resolution (Main) |
1920x1080, 1280x960, 1280x720, 720x576 |
|
Resolution (Secondary) |
640x480, 352x288, 320x240, 176x144 |
|
Resolution (MJPEG) |
1920x1080, 1280x720, Turn off |
|
ECOC Rate |
CBR / VBR. Value range: 32Kbps~10Mbps |
|
Audio Compression |
G711, PCM |
|
Algorithms |
|
|
Face Database |
Max 50,000 |
|
Recognition Speed |
≤300ms |
|
Biometric Recognition |
Support |
|
Face Mask Recognition |
Support |
|
Abnormal Temperature Alarm |
Support（Voice Alarm） |
|
Hardware Port |
|
|
Power Input Port |
DC12V |
|
Ethernet Port |
1*10/100Base-TX RJ45 |
|
Wiegand port |
1*Output |
|
Relay Port |
1*Output |
|
MIC |
Built-in |
|
General |
|
|
Operating Temperature |
10°C ~ 30°C |
|
Operating Humidity |
0%-90% RH (Non-condensing) |
|
Power Consumption |
12W |
|
Dimension |
215x125x20mm |
|
Weight |
＜1kg |
|
Name |
Model |
Qty |
Remark |
|
AI Terminal |
TS3080-AI |
1 |
8 inch LCD Screen, Non-contact Temperature Measurement, Facial Recognition |
|
Power Adapter |
/ |
1 |
100-220V / 12V1A |
|
User Manual |
/ |
1 |
|
