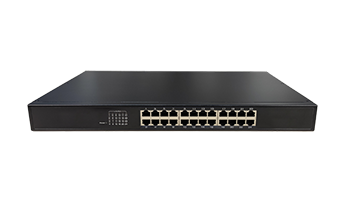

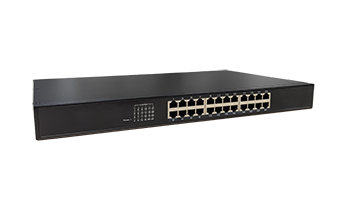

 24-Port Gigabit Ethernet Switch

24-Port Gigabit Ethernet Switch

UTP3324-M0
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product


OVERVIEW

The product of this series is 16-Port/24-Port 10/100/1000Mbps Gigabit Ethernet Switch.

This series switches provide 16/24*10/100/1000Mbps Ethernet RJ-45 ports. It can be widely used in video security monitoring systems, network projects, etc.

This series contains two types:

• UTP3316-M0: 16-Port Gigabit Ethernet Switch

• UTP3316-M0: 24-Port Gigabit Ethernet Switch


FEATURES AND HIGHLIGHTS

• UTP3316-M0: 16*10/100/1000Base-T RJ-45 ports

UTP3324-M0: 24*10/100/1000Base-T RJ-45 ports

• RJ-45 ports support Auto MDI/MDIX



The new-arrival UTEPO unmanaged PoE Switches provide 16/24 10/100/1000Base-T PoE+ ports with up to 30W PoE per port, and 2 1000Base-X SFP ports for a flexible extension. It eliminates the time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring. The switch also supports 4 working modes through the DIP switch (Default, QoS, VLAN, and CCTV), which provides more performance choices for different networking demands. It can be widely used in video security monitoring systems, network projects, etc.



● PoE Provides Centralized Power Management

Providing 16/24 10/100/1000Base-T PoE+ ports, the switches support a max 30W PoE power per port and supply power to IP camera, AP, etc., in a reliable, stable, and eco-friendly way. All the power would be sent from the back end (PoE switch). What you need to do is to add the UPS power next to your PoE switch. When the power is cut off, the UPS power will take over and continue to supply the power to the whole system.



● Flexible Extension with SFP Port

The series provides two Gigabit Uplink SFP ports, which can be uplinked to the backbone switch and monitoring center over long distances. The distance can be extended over 550 meters or more (according to the performance of the SFP module). They are well-suited for applications within enterprise data centers and distributions.



● 4 Working Modes

The switches support 4 working modes (Default, QoS, CCTV, VLAN)


Default

All ports could be able to communicate with each other. In this mode, the switch can function as the core switch in small-scale networking.



QoS

In this mode, ports 1-8 are high-priority ports. When congestion occurs in the data forwarded by the switch, the data on the high-priority ports will be forwarded out first, thus guaranteeing stable transmission of video and data from the key locations without interruption or lag. Meanwhile, the SFP ports serve as the Uplink ports in this mode.



CCTV

The transmission distance of the specific RJ-45 ports (Ports 9-14 of UTP3318S-PSB250-M0, ports 17-22 of UTP3324S-PSB250-M0 & UTP3324S-PSB410-M0) is extended up to 250 meters with the limited rate of 10Mbps.



VLAN

The RJ-45 ports are isolated from each other but can communicate with the SFP ports. To a certain extent, it suppresses broadcast storms and improves network security.



● Excellent Performance of Protection and Anti-interference

Support 6kV surge protection to ensure stable operation.









Items

UTP3316-M0

UTP3324-M0

Hardware Specifications

Downlink Ports

16*10/100/1000Base-T RJ-45(Auto-MDI/MDI-X)

24*10/100/1000Base-T RJ-45(Auto-MDI/MDI-X)

Led Indicators

1*Power, power supply indicator

16*Link/Act indicators

24*Link/Act indicators

Dimensions (W*D*H)

440mm*180mm*44mm

Input Voltage

100~240V AC, 50~60Hz

Material

Metal shell

Installation

Rack/Desktop/Wall mounted

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab

Forwarding Modes

Store and Forward

MAC Table

8k, support auto learning

Switching Capacity

32Gbps/non-blocking

48Gbps/non-blocking

Packet Forwarding Rate

23.8Mpps

35.7Mpps

Reliability

Lighting Protection

On power port: line to earth 6kV, line to line 4kV

On data port: line to earth 6kV

Operating

-10℃~45℃, 10%~90% (Non-condensation)

Storage

-40℃~70℃, 5%~90% (Non-condensation)


gigabit ethernet switch

Items

Quantity

Switch

1 pc

AC Power Cable

1 pc

Mounting Accessory

1 set

User Manual

1 pc
