OVERVIEW

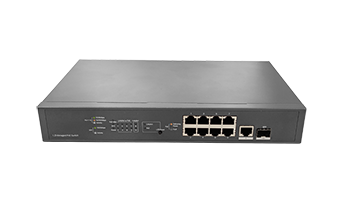

The product is 8-Port Gigabit PoE+ 1-Port Gigabit RJ45 1-Port Gigabit SFP L2 Managed Ethernet Switch.
This switches provide 8*10/100/1000Mbps Ethernet RJ-45 ports, 1*10/100/1000Mbps Ethernet RJ-45 uplink port, 1*1000Mbps SFP uplink port. It meets IEEE 802.3af/at standard. All downlink RJ-45 ports support Power-over-Ethernet (PoE+), which can deliver up to 30W power per port.
The switch has extensive L2 management functions, such as static routing, 802.1Q VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet. It can be easily managed via a WEB GUI, CLI (telnet/console), or SNMP. It can be widely used in video security monitoring system, network project, etc.
FEATURES AND HIGHLIGHTS
Abundant Interfaces
• 8*10/100/1000Base-T RJ-45 (Auto MDI/MDIX) PoE+ ports
• 1*10/100/1000Base-T RJ-45 (Auto MDI/MDIX) port
• 1*1000Base-X SFP port
Power-over-Ethernet
• IEEE 802.3af/at
• 30W max for each port, 130W max for whole switch
Layer 2 Management Function
• VLAN-based routing
• IPv4 static routing
• 802.1Q VLAN
• ACL
• LAG
• IGMP Snooping
• SNMP
UTEPO 8 ports L2 managed PoE switch (UTP3310TS-PSB-L2) provides 8*10/100/1000Mbps Ethernet RJ-45 ports, 1*10/100/1000Mbps Ethernet RJ-45 uplink port, 1*1000Mbps SFP uplink port. It meets IEEE 802.3af/at standard. All downlink RJ-45 ports support Power-over-Ethernet (PoE+), which can deliver up to 30W power per port. UTP3310TS-PSB-L2 supports extensive L2 management functions, such as static routing, 802.1Q VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP, and Telnet. And it can be easily managed via a WEB GUI, CLI (telnet/console), or SNMP, and provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
|
KEY FEATURES |
● Power over Ethernet Technology
Built-in Gigabit switching engine along with 8*10/100/1000Base-T RJ-45 ports (IEEE 802.3af/at) featuring 30W PoE+. With a total PoE power budget of up to 130 watts for different applications. And it also provides the additional 1*10/100/1000Base-X RJ45 port and 1*1000Base-X SFP port for critical extensions.
● Abundant L2 Management Functions
Support PoE management, VLAN-based routing, IPv4 static routing, 802.1Q VLAN, ACL, LAG, IGMP Snooping, SNMP, etc.
>> PoE Scheduling
With PoE for your office, you can save energy during off-duty hours.
>> Recycling
You can set your device to reboot at any specified time through the PoE schedule to reduce the chance of a crash from buffer overflow.
>> LAG
You can use LAG (Link Aggregation Group) to build up multiple links between two switches to expand bandwidth.
● Excellent Performance of Protection and Anti-interference
Support 6kV surge protection to ensure the stable operation.
|
APPLICATION |
|
SPECIFICATIONS |
● 8*GE PoE+ + 1*GE + 1GF
● IEEE 802.3af/at
● 130W PoE budget
● L2 management
● 6kV surge immunity
|
Items |
UTP3310TS-PSB-L2 |
|
Hardware Specifications |
|
|
Downlink Port |
8*10/100/1000Base-T PoE+ RJ-45 (Auto-MDI/MDI-X) |
|
Uplink Port |
1*10/100/1000Base-X RJ45 |
|
1*1000Base-X SFP |
|
|
Led Indicators |
1*Power, power supply indicator |
|
1*SYS, system working indicator |
|
|
1*PoE-Max, PoE power indicator |
|
|
8*Link or PoE, port state indicators |
|
|
2*Link, port state indicators |
|
|
1*Link /1*PoE, mode converting LED indicator |
|
|
Dimensions (W*D*H) |
294mm*179.6mm*44mm |
|
Input Voltage |
100~240V AC, 50~60Hz |
|
Material |
Metal shell |
|
Installation |
Rack/desktop/wall mounted |
|
Switch Property |
|
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1s |
|
Forwarding Modes |
Store and Forward |
|
MAC Table |
16k, support auto learning |
|
Switching Capacity |
20Gbps/non-blocking |
|
Packet Forwarding Rate |
14.4Mpps |
|
Power Supply |
|
|
PoE Standard |
IEEE 802.3af/at |
|
PoE Power Supply Type |
End-span |
|
PoE Pin Assignment |
1/2/4/5(+), 3/6/7/8(-) |
|
PoE Budget |
30W max for each port, 130W max for whole switch |
|
Reliability |
|
|
Port Lighting Protection |
6kV |
|
Operating |
0℃~45℃, 10%~90% (Non-condensation) |
|
Storage |
-40℃~70℃, 5%~90% (Non-condensation) |
|
Software Architecture |
|
|
PoE management |
Port PoE configuration and power supply with priority |
|
PoE over-temperature protection |
|
|
PoE scheduled management |
|
|
Support intelligent and graphical management and PoE-powered device detection (port status, power assignment and PoE-powered device status) |
|
|
Security |
ARP receiving limit |
|
Unknown MAC address discard |
|
|
DoS attack defense |
|
|
802.1X security authentication |
|
|
VLAN |
IEEE 802.1Q VLAN |
|
VLAN Layer-3 interfaces |
|
|
Support three port modes: Access, Trunk and Hybrid |
|
|
DHCP |
DHCP Relay, DHCP Snooping |
|
Support Option 82 policy configuration |
|
|
Routing |
VLAN-based routing |
|
IPv4 static routing |
|
|
Support static ARP adding/deleting |
|
|
Support ARP aging time configuration |
|
|
LAG |
Static aggregation, LACP dynamic aggregation |
|
Spanning Tree |
IEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), |
|
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) |
|
|
Support edge port |
|
|
Support BPDU statistics |
|
|
Multicast |
IGMP Snooping V1/V2/V3 |
|
Support port fast leave |
|
|
Port Mirroring |
Support N: 1 port mirroring |
|
QoS |
SP (Strict Priority) |
|
SWRR (Simple Weighted Round Robin) |
|
|
WRR (Weighted Round Robin) |
|
|
Support 802.1p port trust mode |
|
|
Support DSCP port trust mode |
|
|
Support a maximum of 8 queue service quality mapping) |
|
|
ACL |
Support MAC ACL and IP ACL |
|
Management and Maintenance |
Support FTP/TFTP/HTTP upgrade |
|
Support configuration import and export |
|
|
Telnet, Console, WEB management and maintenance |
|
|
SNMP V1/V2/V3 |
|
|
Ping/Tracert/Connection Detection |
|
|
Visualization Management |
TOPO discovery based on ONVIF |
