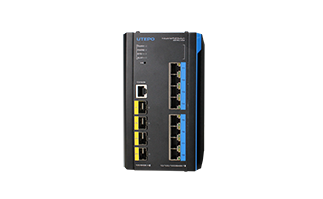

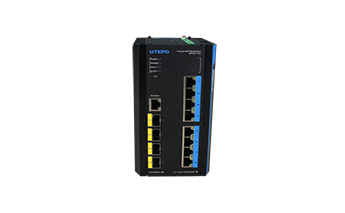

The L3 Industrial 8-Port PoE Gigabit + 4-Port 10G SFP+ Managed Ethernet Switch provides 8*PoE Gigabit downlink Ethernet ports, 4*10 Gigabit uplink SFP ports. The product supports IEEE 802.3 af/at, layer-3 network management, and PoE management. The product also supports multiple configuration modes, such as Web, CLI and SNMP, and multiple access methods, including HTTP, HTTPS, Telnet and SSH. It is widely used in security surveillance, network engineering projects and so on.
FEATURES AND HIGHLIGHTS
Abundant Interfaces
• 8*10/100/1000Base-T PoE RJ45 ports
• 4*1000M/10G Base-X SFP ports (Mini-GBIC)
• 1*RJ45-R232 serial port (115200,8,N,1)
Industrial Design
• Redundant power supply
• -40~75℃ working temperature
• 6kV surge immunity
• 8kV contact discharge,15kV air discharge ESD protection
• Relay Alarm for power failure, cable link down and PoE link down
• IP 40 Fan-less metal shell design
• DIN-rail or wall mounted installation
Layer 3 Network Management
• 802.1Q VLAN
• 802.1P QoS
• SNMP
• IPv6
• Fast-Ring, self-healing in 20ms
• One-key smart mode: CCTV, LOCK, RING, ONLINE
|
Items |
UTP7608GE-POE-IE |
|
Ethernet Ports |
|
|
Copper Ports |
8*10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X) |
|
SFP Ports |
4*1000M/10G Base-X SFP(Mini-GBIC) |
|
Console Port |
1*RJ45-R232 serial port (115200,8,N,1) |
|
PoE |
|
|
PoE Standard |
IEEE 802.3af/at (PSE) |
|
PoE Power Supply Type |
End-span |
|
PoE Pin Assignment |
1/2(+)，3/6(-) |
|
PoE Power Output |
46~55V DC |
|
PoE Power |
30W max for each port, 240W max |
|
Switch Property |
|
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1x |
|
Forwarding Modes |
Store and Forward |
|
Packet Buffer |
12Mbit |
|
MAC Table |
16k, supported auto learning |
|
Switching Capacity |
96Gbps / non-blocking |
|
Packet Forwarding Rate |
71.4Mpps |
|
Jumbo Frame |
9kB |
|
Power Supply |
|
|
Input Voltage |
Power 1 (Main): 48~57V DC, Power 2 (Backup): 48~57V DC |
|
Power Consumption |
260W (Including PoE) |
|
Reliability |
|
|
Surge Immunity |
6kV, Standard: IEC6000-4-5 |
|
ESD Protection |
8kV Contact Discharge,15kV Air Discharge, Standard: IEC61000-4-2 |
|
MTBF |
295040h |
|
MTBF Standards |
Telcordia SR-332，25℃ |
|
Protection Level |
IP40 |
|
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
0~95% (Non-condensation) |
|
Physical Parameter |
|
|
Led Indicators |
PWR1: Main Power Supply Indicator |
|
PWR2: Redundant Power Supply Indicator |
|
|
SYS: System Working Indicator |
|
|
ALM: Alarm Indicator |
|
|
Init Button |
Long press ＞5s to initialise the system |
|
Dimensions (W*D*H) |
163mm*110mm*95.6mm |
|
Gross Weight |
1900g±15g |
|
Net Weight |
1620g±15g |
|
Material |
Aluminum |
|
Installation |
DIN-rail or wall mounted |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
|
Software Specifications |
|
|
System State |
|
|
System Status |
Device Name |
|
MAC Address |
|
|
Firmware Version |
|
|
Hardware Version |
|
|
System Time |
|
|
Update Time |
|
|
Memory Information |
|
|
CPU Information |
|
|
Traffic Statistics |
Sent Frame Statistics |
|
Received Frame Statistics |
|
|
MAC Address Table |
MAC Address Table |
|
Sort Type |
|
|
Port Configuration |
|
|
Port Setting |
Port State |
|
Port Speed |
|
|
Duplex Mode |
|
|
Traffic Control |
|
|
Port Range |
|
|
Rate Limit |
Enable and Disable |
|
Port Range |
|
|
Input Speed Limit |
|
|
Output Speed Limit |
|
|
Storm Control |
Port Range |
|
Broadcast Storm |
|
|
Multicast Storm |
|
|
Unknown Unicast Storm |
|
|
Port Isolation |
Port Isolation Or Normal |
|
Port Range |
|
|
PoE Setting |
Power Setting |
|
Power Status |
|
|
Port Status and Control |
|
|
Ethernet Switch |
|
|
Link Aggregation |
Aggregated Load Pattern Setting |
|
Trunk Name |
|
|
Aggregation Pattern Setting |
|
|
Port Range |
|
|
802.1Q VLAN |
Port Range |
|
Link Type |
|
|
PVID |
|
|
VLAN-allowed |
|
|
VLAN-untagged |
|
|
802.1P QoS |
Enable and Disable |
|
QoS Priority |
|
|
802.1p QoS Setting |
|
|
802.1p Mark Range |
|
|
802.1p Priority |
|
|
IP Service |
|
|
Interface IP |
Network Interface(VID) |
|
Static IP |
|
|
IPv4 Address |
|
|
IPv6 Address |
|
|
DHCP Server |
Client Lease Time |
|
Preferred DNS Address |
|
|
Backup DNS Address |
|
|
WINS Server |
|
|
Network Interface(VID) |
|
|
Default Gateway |
|
|
Start IP Address |
|
|
Max Client Number |
|
|
IP Routing |
|
|
RIP |
Enable and Disable |
|
Protocol Type |
|
|
Network Interface |
|
|
OSPF |
Enable and Disable |
|
OSPF Host ID |
|
|
Region ID |
|
|
Region Type |
|
|
Network Interface |
|
|
Routing Table |
Target Network |
|
Next Hop Address |
|
|
Path Consumption |
|
|
IP Multicast |
|
|
IGMP Snooping |
Enable and Disable |
|
IGMP Query |
|
|
IGMP Query Interval |
|
|
Group Member Alive Time |
|
|
Security |
|
|
Static Address Lock |
Enable and Disable |
|
MAC Address, VLAN ID, Port |
|
|
Reliability |
|
|
Rapid Spanning Tree |
Enable and Disable |
|
STP Version |
|
|
Device Priority |
|
|
Message Sending Period |
|
|
Message Maximum Lifetime |
|
|
Port State Transition Delay |
|
|
This Bridge Update Message |
|
|
Modify Configuration |
|
|
Fast-Ring Protect |
Enable and Disable |
|
Fast-Ring Network Group 1 |
|
|
Fast-Ring Network Group 2 |
|
|
Loopback Protect |
Enable and Disable |
|
Protect Automatic Recovery |
|
|
Disable Loop Port Time |
|
|
Port Range |
|
|
Port Loop Detection |
|
|
VRRP Setting |
VRID |
|
VLAN Interface |
|
|
Priority |
|
|
Preemption Mode |
|
|
Preemption Delay |
|
|
Authentication Method |
|
|
Authentication Word |
|
|
Virtual IP |
|
|
Alarm Management |
|
|
Alarm Host |
Power Supply |
|
Port Network |
|
|
Port PoE |
|
|
System Management |
|
|
Port Mirroring |
Enable and Disable |
|
Monitor Port |
|
|
Mirror Port Range |
|
|
Collect Data |
|
|
SNMP |
Enable and Disable |
|
SNMP Gateway |
|
|
SNMP Version |
|
|
Read-only Group Name |
|
|
Read and Write Group Name |
|
|
SNMP V3: User Name, Read And Write Mode |
|
|
Identity Authentication, Verify Password, |
|
|
Encryption Protocol, Encryption Password |
|
|
Time |
Local Time |
|
World Time Zone |
|
|
Automatically Adjust Daylight Saving Time |
|
|
Using NTP |
|
|
NTP Sever |
|
|
System Time |
|
|
PC Time |
|
|
Syslog |
Enable and Disable |
|
Show Type |
|
|
Information Processing |
|
|
Management |
Restore Factory Value |
|
System Reboot |
|
|
Download Configuration File |
|
|
Upload Configuration File |
|
|
System Upgrade |
|
|
User Setting |
Access Privilege |
|
Username |
|
|
Change Password |
|
|
Items |
Quantity |
|
Switch |
1 set |
|
Mounting Accessory |
1 set |
|
Quick Installation Guide |
1 pc |
