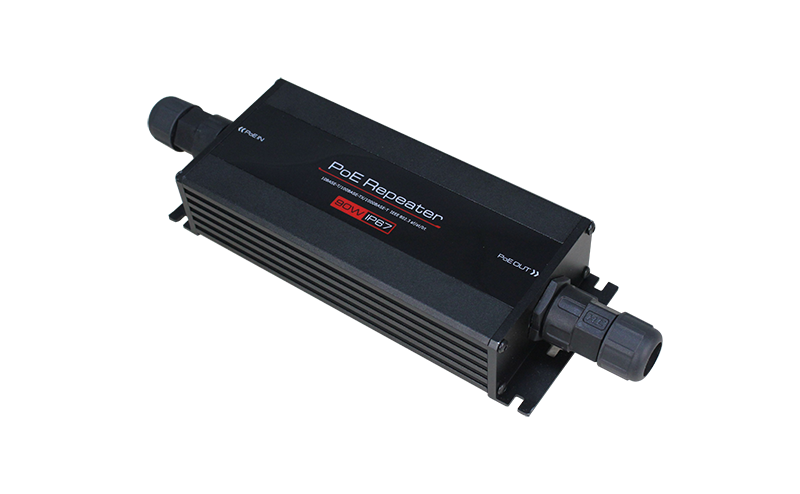

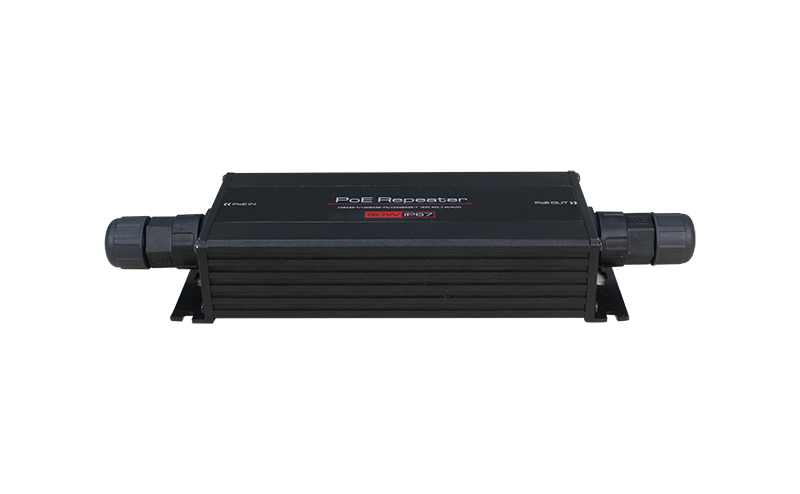

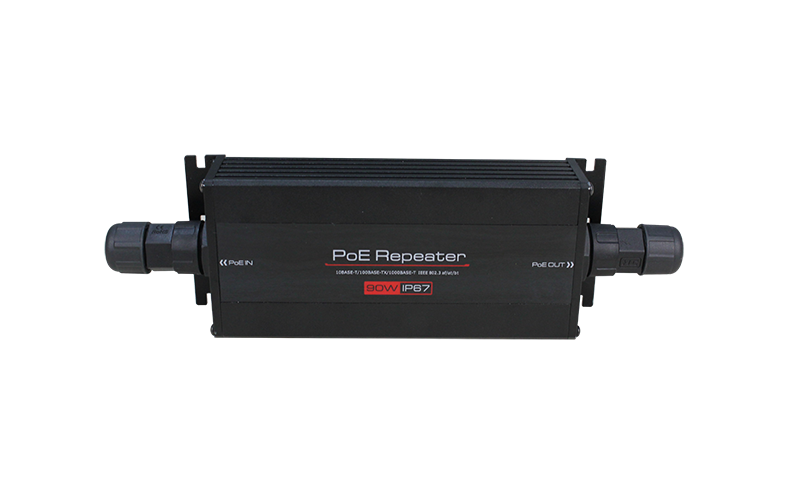

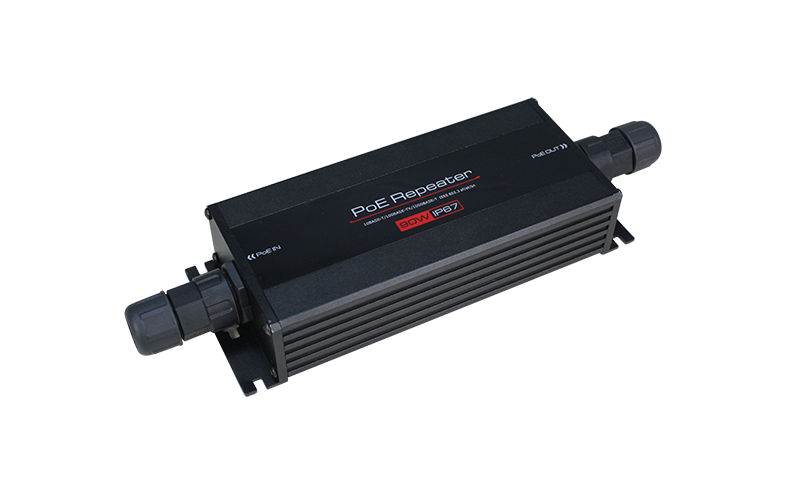

Industrial 1-Port 802.3bt PoE++ (90W) to 1-Port 802.3bt/at/af Gigabit PoE Repeater, which uses advanced network cable drive and power supply technology to extend 1000Mbps Ethernet signal to 100 meters, greatly extending the transmission distance and providing 50~57V PoE power at the same time, the PoE output power can be up to 58W. IP67-rated, industrial grade enclosure can meet requirement of harsh environment, working temperature can be up to -40~75℃. it is widely used in security surveillance and network project.
ADVANTAGES
Provide 10/100/1000Mbps Ethernet ports
• 1* 802.3bt PoE input port, 1*802.3bt/at/af PoE output port.
• Utilizes the advanced network cable drive technology
• The longest distance can be up to 100 meters.
Support PoE Power Supply
• Compatible with end-span and mid-span, PoE output port auto detect powered device and the output power.
Industrial Grade Repeater
• IP67-rated industrial grade enclosure.
• Working temperature can be up to -40~75℃.
Easy to Use
• Plug and play.
• Could be installed on the wall and desk-top.
• No need for RJ45 assembly, special designed waterproof joint allows RJ45 pass through directly.
|
Item |
UTP7201GR-BTPOE(90) |
|
Ethernet Ports |
|
|
PoE Input Port |
10/100/1000Base-T RJ45, IEEE 802.3bt PoE Input |
|
Input Power 50~57V DC, Max 90W |
|
|
PoE Output Port |
1*10/100/1000Base-T RJ45, IEEE 802.3bt/at/af PoE Output |
|
Output Power: Max 81W in total, 73.7W@ 101m, 59W@ 200m |
|
|
Cascade Connection |
Support 3 grade |
|
PoE |
|
|
PoE Standard |
IEEE 802.3 af/at/bt |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
|
Switch Property |
|
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab/z, 10/100/1000Base-T and 1000Base-X, IEEE 802.3 X. |
|
Forwarding Modes |
Store and Forward |
|
Transmission Distance |
100m |
|
MAC Table |
8k |
|
Switching Capacity |
4Gbps |
|
Packet Forwarding Rate |
2.98Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10kB |
|
Environment |
|
|
Surge Immunity |
6kV, Standard: IEC6000-4-5 |
|
ESD Protection |
6kV 1a Contact Discharge Level 3,8kV 1b Air Discharge Level 3, Standard: IEC61000-4-2 |
|
Protection Level |
IP 67 |
|
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
0~95% (Non-condensation) |
|
Physical Parameter |
|
|
Dimensions (W*D*H) |
193mm*75mm*38mm |
|
Gross Weight |
558g |
|
Net Weight |
423g |
|
Material |
Aluminum |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
.png "poe repeater")
.png "90W bt poe repeater")
|
Item |
Quantity |
|
PoE Ethernet Repeater |
1 |
|
Waterproof Joint |
2 |
|
User Manual |
1 |
