 24 Port Ethernet/Fiber Hybrid Full Gigabit Managed Switch (Off Production)

24 Port Ethernet/Fiber Hybrid Full Gigabit Managed Switch (Off Production)

UTP7524GE-16GF8GT
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

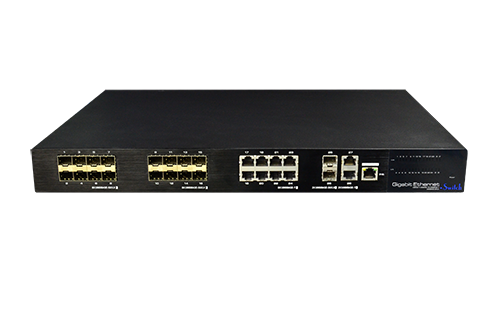

Providing 16*1000Base-X SFP ports + 8*10/100/1000Base-T RJ45 ports + 2*10/100/1000Base-T Uplink RJ45 ports + 2*1000Base-X Uplink SFP ports, UTP7524GE-16GF8GT is an Ethernet/ Fiber hybrid full gigabit managed switch, which is used in the aggregation layer in security surveillance system or engineering network system.


ADVANTAGES

• 16*1000Base-X SFP ports + 8*10/100/1000Base-T RJ45 ports

• 2*10/100/1000Base-T Uplink RJ45 ports + 2*1000Base-X Uplink SFP ports

• Support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function

• High speed data forwarding, ideal solution for security monitoring which is requesting the forwarding of large flow video data

• Support one-key recovery IP address and user password

• Provide dual power supply redundancy backup to improve system reliability

• Easy to install & operate, support installation of desktop and 19 inch standard rack

Model

UTP7524GE-16GF8GT

Downlink Ports

16*1000Base-X SFP ports + 8*10/100/1000Base-T RJ45 ports

Uplink Ports

2*10/100/1000Base-T Uplink RJ45 ports + 2*1000Base-X Uplink SFP ports

Standard

IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,  IEEE 802.1Q    IEEE 802.1p   IEEE 802.3ad ,  IEEE 802.1D, IEEE 802.1X

Switching Capacity

56Gbps

Packet Forwarding Rate

42Mpps

Forwarding Modes

Store and Forward

Packet Buffer

12M

MAC Address Table

16K

Surge Immunity

6KV  Per: IEC61000-4-5

ESD Immunity

6KV Contact discharge

8KV Air discharge

Per: IEC61000-4-2

Input Voltage

100~240V AC, 50/60Hz

Power Consumption

60W

Operating Temperature

-10℃~50℃

Storage Temperature

-40℃~85℃

Operation Humidity

5%-95%No- condensation

Dimension(LxWxH)

442mm×305mm×44.5mm

Weight

4.35kg

Certification

CE, FCC, ROHS

Software Parameter

Port Management

Support Port Enable/Disable

Support Port Rate Settings

Support Port Full-duplex Mode

Support IEEE802.3x Flow Control

Support Port Name Change

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN

Support Port-Based VLAN

QoS

Support QoS

Support 8-Level Priority management for switching

Support WRR

Support 802.1P and DSCP Priority

Multicast Management

Support SNMP V1/V2/V3 Protocol

Support IGMP Snooping

Safety Character

Support IP, MAC, Port, VLAN Combination and Binding

Support MAC address auto-learning, aging& filter

Support Port Isolation, Port Speed-Limited

Support RSTP

Support Fast-Ring

Support 5 groups of 8-Port trunk

Support RADIUS Authentication& 802.1X Authentication

System Management & Maintenance

Support WEB Management, CLR Settings and telnet Settings

Support CLR Settings

Support FTP/TFTP/HTTP Web Upgrading

Support Flow Calculate

Support MAC address Form Search

Support IP Address, DNS Server Change

Support Username& Password Change

Support History Record, Journal management

Support System settings Backup

UTP7524GE-16GF8GT
UTP7524GE-16GF8GT, Managed Switch

Designation

Quantity

Managed Switch

1

AC Power Cable

1

Accessory

1

User Manual

1
