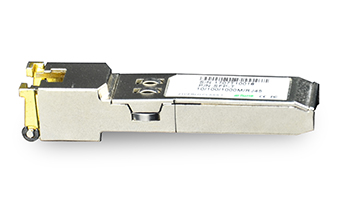

The Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE802. 3 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.
ADVANTAGES
• Up to 1.25Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Extended case temperature range (0℃ to +70℃)
• Fully metallic enclosure for low EMI
• Low power dissipation (1.05 W typical)
• Compact RJ45 connector assembly
• Access to physical layer IC via 2-wire serial bus
• 1000 BASE-T operation in host systems with SERDES interface
|
Item |
Description |
|
|
Power |
Power supply |
By the host power supply |
|
Voltage range |
DC3.15V - 3.45V |
|
|
Consumption |
1W |
|
|
SFP |
Connector |
SFP slot |
|
Port |
1000BASE-X |
|
|
Copper |
Connector |
RJ45 |
|
Port |
1000BASE-T |
|
|
Protection |
ESD |
1a contact discharge 3 level |
|
1b air discharge 3 level |
||
|
Per: IEC61000-4-2 |
||
|
Environmental |
Working temperature |
0℃ ~ 70℃ |
|
Storage temperature |
-40℃ ~ 70℃ |
|
|
Humidity (non-condensing) |
0-95% |
|
|
Mechanical |
Dimension(L x W x H) |
55.4mm x 13.7mm x 8.5mm |
|
Material |
Stainless steel |
|
|
Color |
White |
|
|
Weight |
17g |
|
|
Designation |
Quantity |
|
SFP-T |
1 |
|
User Manual |
1 |
