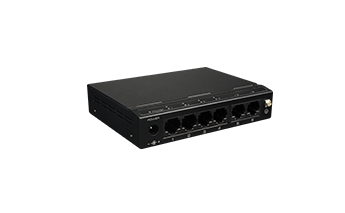

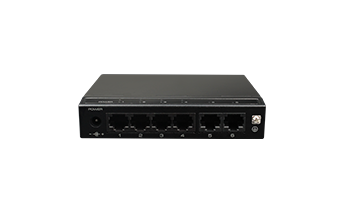

 6 Ports 10/100Mbps Unmanaged PoE Switch

6 Ports 10/100Mbps Unmanaged PoE Switch

SF6P-HM
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video

SF6P-HM, unmanaged PoE switch, provides 4*10/100Base-TX PoE ports + 2*10/100Base-TX RJ45 ports. Max PoE power output for single port is 30W, the total PoE power budget is 60W. Equipped with function of three operating modes(Default, VLAN, CCTV), the switch supports PoE watchdog under VLAN and CCTV, and it improves the online rate of cameras.

Advantage

√ Provide 4*10/100Base-TX PoE + 2*10/100Base-TX RJ45

√ IEEE802.3af/at, with PoE power budget of 60W

√ Three operating modes (Default, VLAN, CCTV)

√ Supports PoE watchdog under VLAN and CCTV mode. It improves the online rate of cameras.

√ Support 6KV surge immunity, 8KV ESD protection

√ Support desktop and wall mount installation

√ Plug and play, no need more configuration

UTEPO
The UTEPO Security-exclusive PoE switches are born for small and medium-sized HD IP surveillance projects. With PoE function, the switches could supply power along with data for AP, IP camera and IP phone. Except for the proven advantages of PoE, including safe power, simple installation, and flexible deployment, the UTEPO switches are equipped with three operating modes (Default, VLAN, CCTV), as well as PoE watchdog under VLAN and CCTV, which improves the alive rate of cameras while with less manual management and maintenance.
Key Feature
PoE Watchdog
Detect PoE Camera when it is frozen, and reboot it automatically.
6KV Surge Protection
With 6KV surge protection on both port and power supply, it prevents the switches from damage caused by indirect lightning.
Three Operating Modes
Default: All port can be communicated freely.
VLAN: The Downlink ports are isolated respectively, but can communicate with Uplink Ports. Support PoE Watchdog.
CCTV: The bandwidth of Downlink ports is limited to 10M, but with long transmission distance of 250 meters. Support PoE watchdog.
Outstanding Power Supply
The downstream ports support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output for single port and 60/60/93/110/135/225W for the total PoE budget.
Application
As shown in the picture, the 5/6/9 ports PoE switches can be used to connect to the powered devices (IP camera, AP and IP phone) via cables which is very convenient and cost-effective for places like boutique, small shop, coffee house and warehouse etc. And the 10/18/26 ports PoE switches can be used in small or medium sized office and restaurant to connect some extra desktops or laptops. In addition, they are suitable for SMB or entry-level enterprise solution which demands stable, surveillance, IP phone, IP camera or wireless applications.

Model

SF6P-HM

Downstream Ports

4*10/100Base-TX  PoE

Uplink Ports

2*10/100Base-TX RJ45

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3X

Switching Capacity

1.2Gbps

Packet Forwarding Rate

0.8688Mpps

Forwarding Modes

Store and Forward

Packet Buffer

768K

MAC Address Table

2K

DIP Switch

Default: All port can be communicated freely.

VLAN: Port 1-4 are isolated respectively, but can communicate with Port 5-6, support PoE Watchdog

CCTV: Port 1-4, 10M, with long transmission distance of 250 meters, support PoE watchdog

PoE Standard

802.3af/at(PSE)

PoE Power Method

End-span

PoE Line Pair

1/2(+)3/6(-)

PoE Power Output

Max PoE power output for single port is 30W (DC52V)

Total PoE power budget is 60W

Surge Immunity

6KV Execute: IEC61000-4-5

ESD Immunity

6KV Contact discharge

8KV Air discharge

Execute:  IEC61000-4-2

Power Supply

DC 52V 1.2A

Power Consumption

63W

Operating Temperature

-10℃~50℃

Storage Temperature

-40℃~85℃

Humidity (Non-condensing)

5%-95%

Dimension (L*W*H)

122*92*25mm

Weight

343g

Certification

CE, FCC, ROHS


UTEPO, poe switch
UTEPO, 6 ports poe switch

Designation

Quantity

PoE Switch

1

Power Adapter

1

User Manual

1
