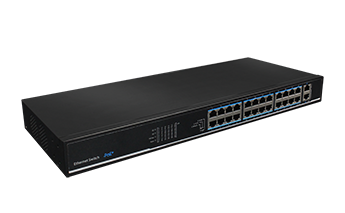

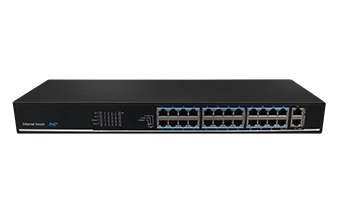

 24-Port 10/100Mbps+2 Gigabit Uplink PoE Switch

24-Port 10/100Mbps+2 Gigabit Uplink PoE Switch

SF26P-LM
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

The security exclusive 24 ports PoE Ethernet switch, providing 24*downlink PoE ports (IEEE802.3af/at) and 2*1000Mbps Uplink ports, fulfills the demand for HD IP surveillance. Equipped with the excellent performance of ESD, 6KV lighting protection and surge protection circuits, the PoE switch could operate stably in the harsh environment. With unique one-key smart function, users can enable the VLAN easily and keep the network storm, virus & cyber attack away from their system.


ADVANTAGES

• 24*10/100Base-TX Ethernet Ports (PoE) + 2*Gigabit Uplink Ethernet Port.

• IEEE802.3af/at. Max PoE power of single port is 30W. Total PoE power budget is up to 225W.

• Support 3 working modes. (Default, VLAN, CCTV).

• Support 6KV surge immunity, 8KV ESD immunity and anti-interference function.


UTEPO
The UTEPO Security-exclusive PoE switches are born for small and medium-sized HD IP surveillance projects. With PoE function, the switches could supply power along with data for AP, IP camera and IP phone. Except for the proven advantages of PoE, including safe power, simple installation, and flexible deployment, the UTEPO switches are equipped with three operating modes (Default, VLAN, CCTV), as well as PoE watchdog under VLAN and CCTV, which improves the alive rate of cameras while with less manual management and maintenance.
Key Feature
PoE Watchdog
Detect PoE Camera when it is frozen, and reboot it automatically.
6KV Surge Protection
With 6KV surge protection on both port and power supply, it prevents the switches from damage caused by indirect lightning.
Three Operating Modes
Default: All port can be communicated freely.
VLAN: The Downlink ports are isolated respectively, but can communicate with Uplink Ports. Support PoE Watchdog.
CCTV: The bandwidth of Downlink ports is limited to 10M, but with long transmission distance of 250 meters. Support PoE watchdog.
Outstanding Power Supply
The downstream ports support IEEE 802.3at and IEEE 802.3af PoE standard. It provides 30W maximum PoE output for single port and 60/60/93/110/135/225W for the total PoE budget.
Application
As shown in the picture, the 5/6/9 ports PoE switches can be used to connect to the powered devices (IP camera, AP and IP phone) via cables which is very convenient and cost-effective for places like boutique, small shop, coffee house and warehouse etc. And the 10/18/26 ports PoE switches can be used in small or medium sized office and restaurant to connect some extra desktops or laptops. In addition, they are suitable for SMB or entry-level enterprise solution which demands stable, surveillance, IP phone, IP camera or wireless applications.

Model

SF26P-LM

Downstream Ports

24*10/100Base-TX (PoE)

Uplink Ports

2*10/100/1000Base-T RJ45

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Switching Capacity

8.8Gbps

Packet Forwarding Rate

6.4Mpps

Forwarding Modes

Store and Forward

Packet Buffer

2.75Mbits

MAC Table

8k

PoE Standard

802.3af/at(PSE)

PoE Power Supply

End-span

Power Pin Assignment

1/2(+)3/6(-)

PoE Output Power

PoE(Single port)≤30W(54V DC)

PoE Budget

225 watts max

Three Working Modes

Default: Support Vlan pass through,All port can be communicated freely.

VLAN: Port 1-24 are isolated respectively, but can communicate with uplink ports, support PoE watchdog.

CCTV: The transmission distance can be extended to 250 meter, while link speed of downlink ports 1~24 will be limited to 10Mbps(Uplink ports keep 100Mbps). Support  PoE watchdog.

Surge Immunity

Common mode 6KV    Execute: IEC61000-4-5

ESD Protection

6KV Contact discharge

8KV Air discharge

Execute: IEC61000-4-2

Input Voltage

AC 100V~240V    50~60HZ

Power Consumption

250W (Include PoE)

Operating Temperature

-10℃~50℃

Storage temperature

-40℃~85℃

Operating Humidity

5%-95%(Non-condensing)

Dimension(W*D*H)

440mm*180mm*44mm

Weight

2.32Kg

Certification

CE, FCC, ROHS

UTEPO, 24 ports poe switch

Designation

Quantity

SF26P-LM

1

AC Power Cable

1

User Manual

1
