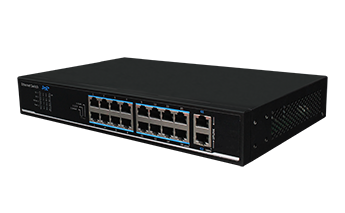

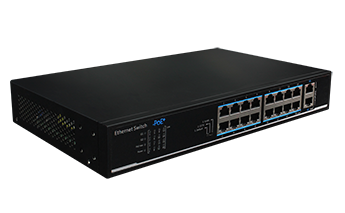

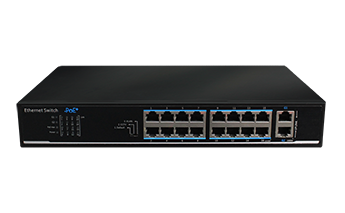

The security exclusive 16 ports PoE Ethernet switch, providing 16*downlink PoE ports (IEEE802.3af/at) and 2*1000Mbps Uplink ports, fulfills the demand for HD IP surveillance. Equipped with the excellent performance of ESD, 6KV lighting protection and surge protection circuits, the PoE switch could operate stably in the harsh environment. With unique one-key smart function, users can enable the VLAN easily and keep the network storm, virus & cyber attack away from their system.
Advantage
√ 16*10/100Base-TX Ethernet Ports (PoE) + 2*Gigabit Uplink Ethernet Port.
√ IEEE802.3af/at. Max PoE power of single port is 30W. Total PoE power budget is up to 135W.
√ Support 3 working modes. (Default, VLAN, CCTV).
√ Support 6KV surge immunity, 8KV ESD immunity and anti-interference function.
Model |
SF18P-LM |
Downstream Ports |
16*10/100Base-TX (PoE) |
Uplink Ports |
2*10/100/1000Base-T RJ45 |
Standard |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3x |
Switching Capacity |
7.2Gbps |
Packet Forwarding Rate |
5.2Mpps |
Forwarding Modes |
Store and Forward |
Packet Buffer |
2.75Mbits |
MAC Table |
8k |
PoE Standard |
802.3af/at(PSE) |
PoE Power Supply |
End-span |
Power Pin Assignment |
1/2(+), 3/6(-) |
PoE Power Output |
PoE(Single port)≤30W(54V DC) |
PoE Budget |
135 watts max |
Three Working Modes |
Default: All of the ports could communicate freely. |
VLAN: Port 1-16 are isolated respectively, but can communicate with uplink ports, support PoE watchdog. |
|
CCTV: The transmission distance can be extended to 250 meter, while link speed of downlink ports 1~16 will be limited to 10Mbps(Uplink ports keep 100Mbps). Support PoE watchdog. |
|
Surge Immunity |
Common mode 6KV Execute: IEC61000-4-5 |
ESD Protection |
6KV Contact discharge |
8KV Air discharge |
|
Execute: IEC61000-4-2 |
|
Input Voltage |
AC 100V~240V 50/60HZ |
Power Consumption |
<150W (Include PoE) |
Operating Temperature |
-10℃~50℃ |
Storage temperature |
-40℃~85℃ |
Operating Humidity |
5%-95% (Non-condensing)
