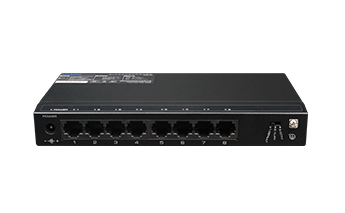

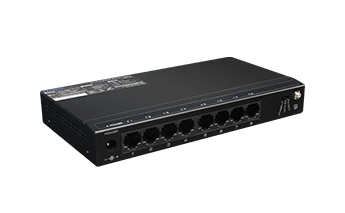

 8-Port Unmanaged Gigabit Switch

8-Port Unmanaged Gigabit Switch

SG8-M
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

he unmanaged gigabit switch is specially designed for HD video surveillance and network engineering, providing 8*10/100/1000Mbps RJ45 ports. The switch supports three operating modes (Default, VLAN, CCTV). The switch supports 8KV ESD protection, which can protect the device from damage by direct lightning and keep a stable transmission. The SG8-M is widely used in security video monitoring and network engineering etc.


ADVANTAGES

• 8*10/100/1000Mbps RJ45 ports.

• IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x.

• Three operating modes (Default, VLAN, CCTV).

• Excellent performance of anti-interference, 6KV surge immunity & 8KV ESD protection.

• Plug and play.

Model

SG8-M

Downlink Ports

8*10/100/1000Base-T ports

Network Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3X

Switching Capacity

16Gbps

Packet Forwarding Rate

11.584Mpps

Forwarding Modes

Store and Forward

Packet Buffer

2.5M

MAC Address Table

1K

Jumbo Frame

9KB

One-key Smart

Default: All port can be communicated freely.

VLAN: Port 1-6 are isolated respectively, but can communicate with Port 7-8.

CCTV: The rates of Port 1-8 are limited to 10M, but with transmission distance of 250 meters.

Surge Immunity

6KV Execute: IEC61000-4-5

ESD Immunity

6KV Contact discharge

16KV Air discharge

Execute:  IEC61000-4-2

Power Supply

Desktop power adapter, DC 2.1 Jack

Input Voltage

AC: 100~240V- 50~60Hz

Power Output

DC: 5V- 1.0A

Surge on Power Supply

Common mode - 6KV,  Difference mode - 4KV

Power Consumption

5W

Operating Temperature

-10℃~50℃

Storage Temperature

-40℃~85℃

Humidity (Non-condensing)

10%-90%

Dimension (L*W*H)

180mm*92mm*25mm

Weight

1kg

Certification

CE, FCC, ROHS

poe switch

Designation

QTY

SG8-M

1

Power Adapter

1

User Manual

1
