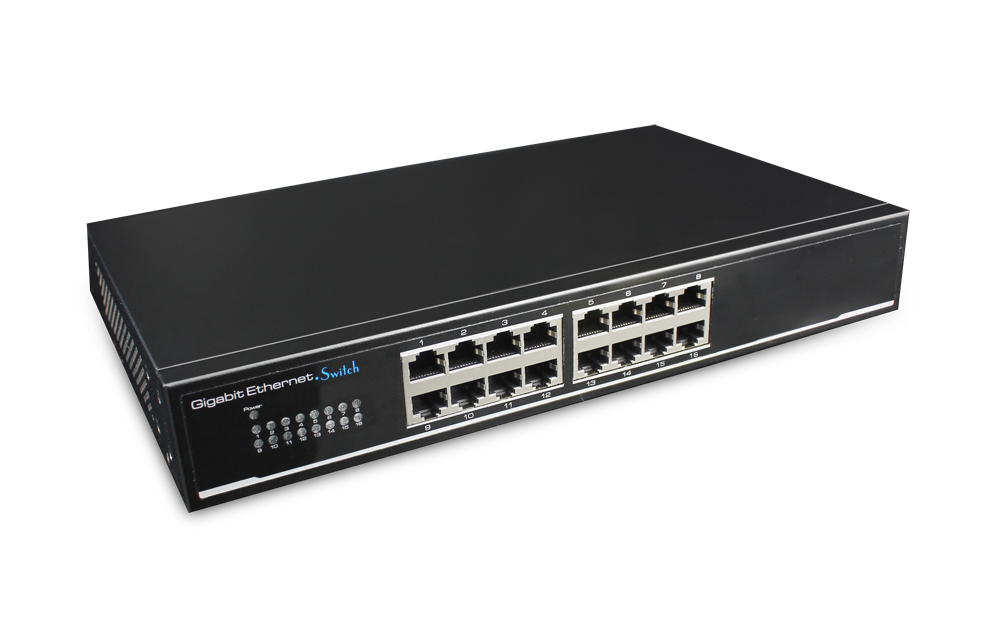

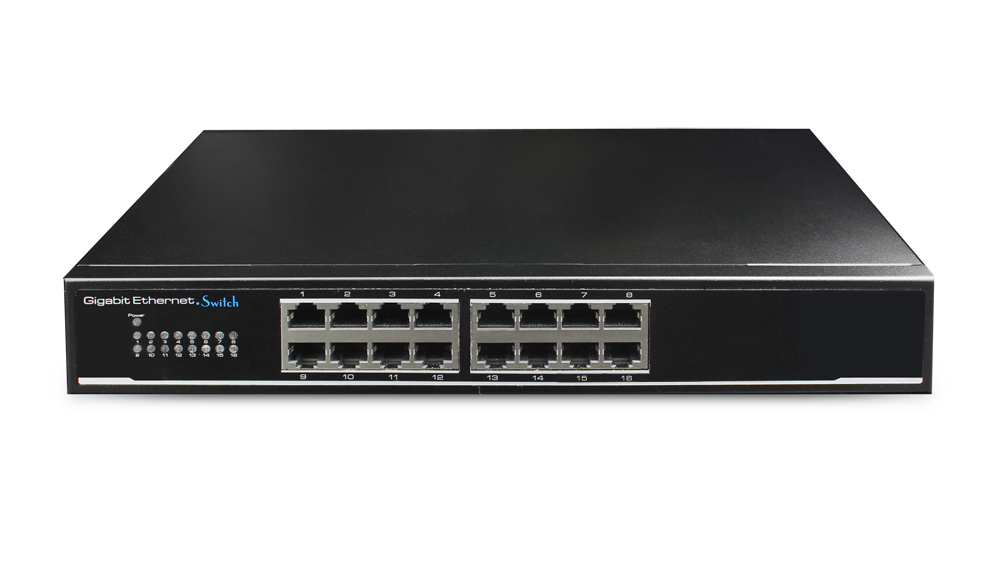

SG16-M, 16 ports full gigabit unmanaged mental Ethernet switch, is specially designed for security industry. It provides 16*10/100/1000Base-T RJ45 ports, which is equipped with 6KV surge immunity. The switch supports 8KV ESD protection, which can protect the device from the damage by direct lightning and keep the stable transmission. The SG16-M is widely used in security video monitoring and network engineering etc.
ADVANTAGES
• 16*10/100/1000Base-T RJ45 ports
• 6KV surge immunity, surge protection on power port
• Switching fabric is 32G, support 9K jumbo frame
• Support full duplex
• Support auto MDI/MDIX on all port
• Plug and play, 13'' housing, desktop, rack installation
|
Model |
SG16-M |
|
Ports |
16*10/100/1000Base-T RJ45 ports |
|
Network Standard |
IEEE 802.3, IEEE 802.3 i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
|
Switching Capacity |
32Gbps |
|
Packet Buffer |
2.5M |
|
MAC Address Table |
8K |
|
Indicator |
1-16: Link/Act，connecting (ON), transmitting (Blink), linkage fault (OFF) |
|
Power: normal (ON), fault (OFF) |
|
|
Surge Immunity |
6KV, IEC61000-4-5 |
|
ESD Immunity |
Contact discharge 6KV, |
|
air discharge 8KV. IEC61000-4-2 |
|
|
Input Voltage |
100-240V～ 50/60Hz |
|
Operating Temperature |
-10℃~50℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%-95% (Non-condensing) |
|
Dimension (L*W*H) |
274*180*44mm (L*W*H) |
|
Certification |
CE, FCC, RoHS |
|
Designation |
QTY |
|
Ethernet Switch |
1 pc |
|
Power Cable |
1 pc |
|
User Manual |
1 pc |
