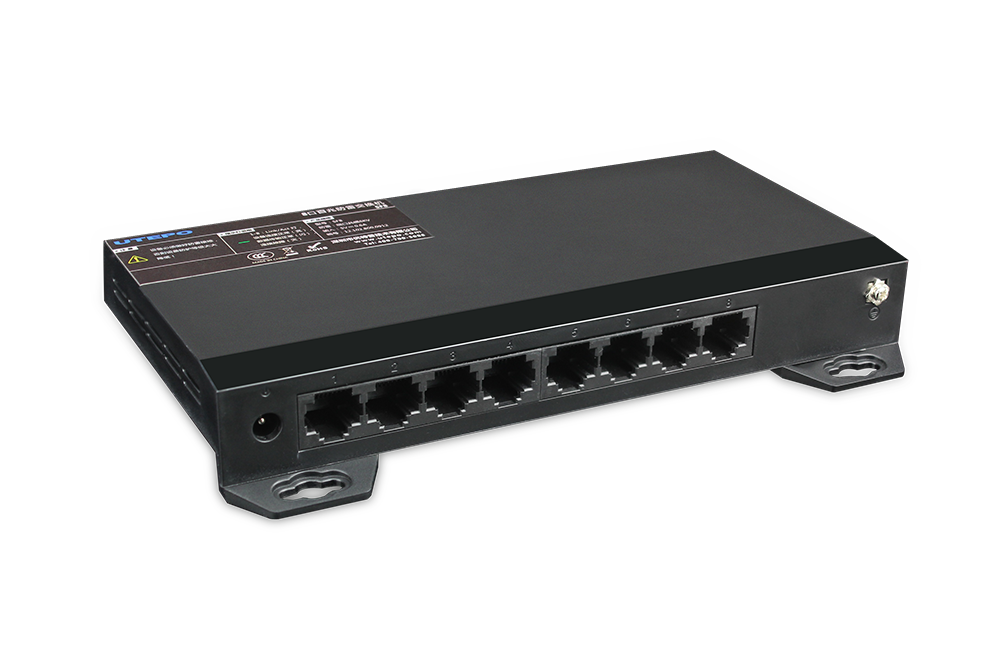

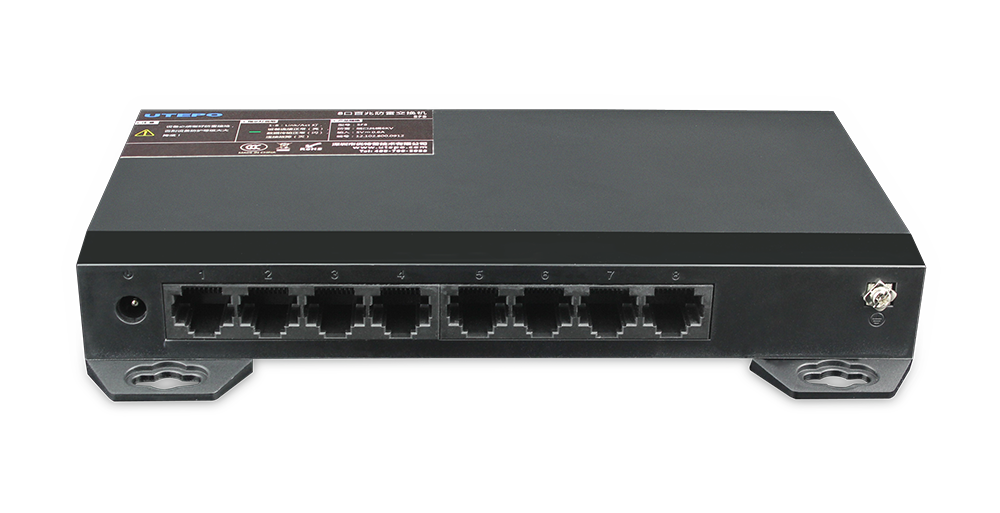

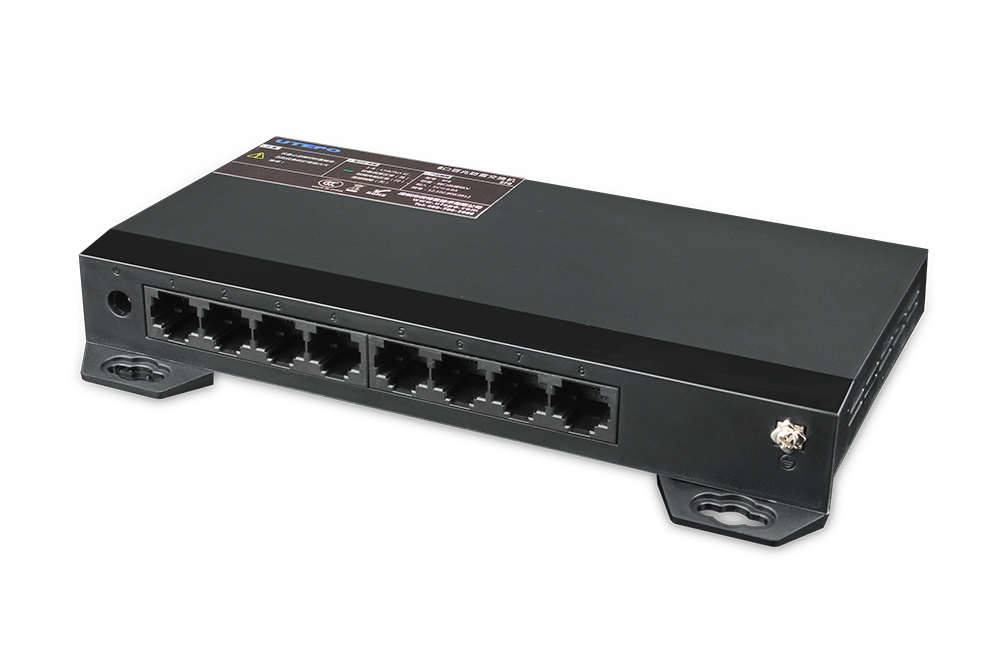

SF8 is an 8-Port 100M Anti-surge switch, which is specially designed for security digital monitor transmission. It supports 6KV surge immunity and 8KV ESD immunity , preventing the port from the damage caused by indirect lightning and ensuring the reliability of data transmission. The switch is widely used in security video monitoring and networking of small & medium size enterprises.
Advantages
√ 8*10/100Base-TX Ethernet Ports.
√ Support 6KV surge immunity, 8KV ESD immunity.
√ LED indicators in front panel, showing the connection and operation status of the device.
√ Support auto MDI/MDIX.
√ Support wall hanging and desktop installation.
√ Plug and play, no more configuration needed.
|
Model |
SF8 |
|
Ports |
8*10/100Base-TX Ethernet Ports |
|
Network Standard |
IEEE802.3, IEEE802.3u, IEEE802.3X |
|
Switching Capacity |
1.8Gbps |
|
Packet Forwarding Rate |
1.14Mpps |
|
Packet Buffer |
738 Kbits |
|
MAC Address Table |
2K |
|
Indicator |
1-8: Link/Act, Connecting (ON). Data transmitting(BLINK), Linkage fault(OFF) |
|
Power(PWR): Supply power (ON), Power supply failure (OFF) |
|
|
Surge Immunity |
Common Mode, 6KV, IEC61000-4-5 |
|
ESD Immunity |
Contact discharge 6KV, air discharge 8KV. IEC61000-4-2 |
|
Input Power |
DC 5V0.6ma |
|
Operating Temperature |
0℃~40℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
8%-98% (Non-condensing) |
|
Dimension (L*W*H) |
180*104*28mm (L*W *H) |
|
Certification |
CE, FCC, RoHS |
|
Designation |
QTY |
|
Ethernet Switch |
1 pc |
|
Power Adaptor |
1 pc |
|
User Manual |
1 pc |
