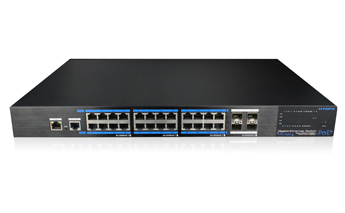

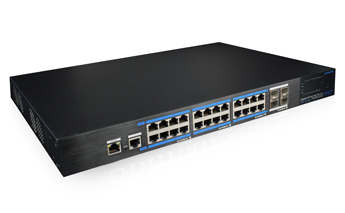

The UTP7524GE-POE-4GF is an L2-managed PoE switch, which provides 24* Gigabit PoE downlink ports, 4* Gigabit SFP uplink ports. The switch complies with IEEE 802.3 af/at (PoE+), the total PoE power budget can be up to 390W which is adequate to power supply for HD IP camera and Gigabit wireless access point, makes it an ideal choice for HD security surveillance network and high-speed wireless network construction projects.
It supports abundant L2 functions such as PoE management, 802.1Q VLAN, DHCP snooping, 802.1x Authentication, Dual IPv4/IPv6 stack, IGMP Snooping, STP/RSTP, Link Aggregation (Dynamic and Static), ACL, Port mirroring, SNMP v1/v2/v3, etc. It also supports multiple configuration modes, such as Web, CLI, and SNMP, and multiple access methods, including HTTP, HTTPS, Telnet, and SSH V2. Due to the advanced L2 functions such as ACL and MAC binding VLAN function, the switch and compliant devices can be protected against broadcast storms, which guarantee a safe operation. Quality of Service (QoS) ensures stable and smooth data transmission.
ADVANTAGES
• Provides 24 *Gigabit PoE RJ45 ports, 4* Gigabit uplink SFP ports.
• Provides web-based layer 2 network management and PoE management by simple operation.
• Supports high-speed data forwarding, very suitable for large flow of video data forwarding in security surveillance.
• Supports fast ring.
• Supports temperature-controlled fan.
• Quick Installation, simple operation, convenient for wall/desk/rack installation.
.jpg "24 ports poe switch")
|
Item |
UTP7524GE-POE-4GF |
||
|
Copper Ports |
24* 10/100/1000Base-T PoE RJ45(Auto-MDI/MDI-X) |
||
|
SFP Ports |
4*1000 Base-X SFP(Mini-GBIC) |
||
|
Console Port |
1*RJ45-R232 serial port(115200,8,N,1) |
||
|
OOB Port |
1*10/100Base-TX RJ45(only used to Web management) |
||
|
default IP:192.168.1.200 name:admin password:admin) |
|||
|
Init button |
Short press:restart; |
||
|
>5s Press: restore factory settings. |
|||
|
Network Standard |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
||
|
Exchange Capacity |
56Gbps / non-blocking |
||
|
Packet Forwarding Rate |
41.7Mpps |
||
|
Operation Method |
Store and Forward |
||
|
Buffer Memory |
12Mbit |
||
|
MAC Address Table |
16k MAC address table with auto learning function |
||
|
Jumbo Frame |
10k bytes |
||
|
PoE Standard |
IEEE802.3af 15.4W, IEEE802.3at 30W |
||
|
PSE Type |
End-span |
||
|
Power Pin Assignment |
1/2(+)，3/6(-) |
||
|
Power Supply |
Internal power adapter |
||
|
AC 100-240V 50/60Hz |
|||
|
Power Consumption |
<420W (PoE consumption) |
||
|
PoE budget: 390W |
|||
|
Lightning protection |
6KV |
||
|
Execute：IEC61000-4-5 |
|||
|
ESD |
6KV: Contact discharge |
||
|
8KV: Air discharge |
|||
|
Execute: IEC61000-4-2 |
|||
|
Work temperature |
-10-50℃ |
||
|
Storage temperature |
-40-85℃ |
||
|
Humidity |
5%-95%(Non-condensing) |
||
|
Dimension（L×W×H） |
442mm×320mm×44.5mm |
||
|
Weight |
4.35kg |
||
|
Certificates |
CE, FCC, ROHS |
||
|
Software Features |
|||
|
Interface Management |
|
Support port isolation |
|
|
Support port rate settings |
|||
|
Support port storm suppression |
|||
|
Support IEEE802.3x flow control |
|||
|
Support port traffic statistics |
|||
|
Support auto negotiation |
|||
|
Logic Interface |
Loopback detection |
||
|
VLAN |
VLAN Partition |
VLAN based on port, VLAN based on MAC |
|
|
Private VLAN, multicast VLAN |
|||
|
VLAN Communication |
VLAN intercommunication |
||
|
VLAN isolation |
|||
|
VLAN Port Type |
Access, Trunk, GVRP, QinQ |
||
|
MAC |
Static MAC |
||
|
MAC Black hole |
|||
|
Dynamic MAC |
MAC address aging configuration |
||
|
MAC address learning limit |
|||
|
Multicast MAC |
Static Multicast MAC address |
||
|
Link Aggregation |
Dynamic Aggregation |
||
|
Static Aggregation |
|||
|
Loopback Protection |
STP/RSTP, ERPS v1，v2（G.8032）, y.1731 CCM |
||
|
IP Features |
IP address : Classful IP address, classless IP address |
||
|
ARP |
|||
|
IPv6 address configuration |
|||
|
DHCP |
Host DHCP service |
DHCP pool |
|
|
DHCP relay |
DHCP snooping option 82 |
||
|
IGMP Features |
IGMP snooping |
||
|
GMRP |
|||
|
QoS |
Support 802.1p CoS/DSCP priority |
||
|
Support 8-Level priority management for switching |
|||
|
Support WRR, PQ, DRR, WFQ, ACL based on ports and queues |
|||
|
PoE Management |
Support total power consumption control |
||
|
Support PoE ON/OFF |
|||
|
Support single port 30W max. Power change and port output priority |
|||
|
Safety Character |
802.1x |
IEEE 802.1X Port/MAC based authentication, Radius |
|
|
Support MAC address auto-learning, aging& filter |
|||
|
Support port isolation, port speed-limited |
|||
|
ACL |
Basic ACL, advanced ACL |
||
|
System Log |
Local system log management |
||
|
Remote System Log Management |
|||
|
Mirroring |
Port mirroring |
||
|
System Management& Maintenance |
Support WEB-based management, including HTTP and HTTPS |
||
|
Support CLI-based management |
|||
|
Configuration through Telnet, SSH V2 |
|||
|
Tracert v4 |
|||
|
SNMPv1/v2/v3 management |
|||
|
SNMP Trap |
|||
|
Support TFTP-client |
|||
|
NTP/SNTP |
|||
|
Link layer discovery protocol (LLDP) |
|||
|
IPv6 |
Dual IPv4/IPv6 stack |
||
|
Ping IPv6, WEB IPv6 |
|||
|
ICMPv6 |
|||
|
DHCPv6 snooping, DHCPv6 client |
|||
|
IPv6 ACL, IPv6 SSH |
|||
|
Designation |
Quantity |
|
Device |
1 |
|
AC Power Line |
1 |
|
Accessory |
1 |
|
User manual |
1 |
