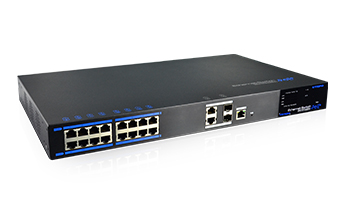

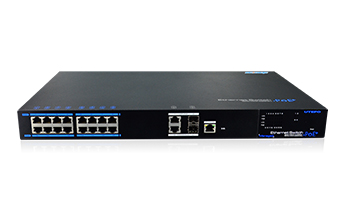

The 16-port managed PoE Ethernet switch, provides 16*100Mbps downlink PoE Ethernet ports with IEEE802.3af/at supporting and 2*1000Mpbs uplink optical ports and 2*1000Mpbs uplink Ethernet ports. The switch support Layer 2 network management and PoE management based on web and provides high-speed data forwarding. It is widely used in security surveillance, network engineering projects and so on.
|
Model Number |
UTP7216E-POE-L2 |
|
Downstream Ports |
16* 10/100Base-TX (PoE) |
|
Uplink Ports |
2*1000Base-X SFP Port and 2*10/100/1000Base-T |
|
Network Standard |
IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
|
Switching Capacity |
11.2Gbps |
|
Packet Forwarding Rate |
8.33Mpps |
|
Forwarding Modes |
Store and Forward |
|
MAC Address Table |
16K |
|
PoE Standard |
802.3af/at(PSE) |
|
PoE Power Method |
End-span |
|
PoE Line Pair |
1/2(+)，3/6(-) |
|
PoE Output Power |
54V DC , 30 watts max |
|
PoE Budget |
270 watts max |
|
Surge Immunity |
6KV Execute：IEC61000-4-5 |
|
ESD Immunity |
6KV Contact discharge |
|
8KV Air discharge |
|
|
Execute：IEC61000-4-2 |
|
|
Input Voltage |
100~240V AC；50/60Hz |
|
Power Consumption |
＜320W(Including PoE) |
|
Operating Temperature |
-10℃~50℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity(Non-condensing) |
5%-95% |
|
Dimension（L×W×H） |
442mm×255mm×44.5mm |
|
Weight |
3.73kg |
|
Certification |
CE, FCC, ROHS |
|
Software Features |
|
|
Port Management |
Support port enabling and disabling |
|
Support port speed settings |
|
|
Support port full-duplex mode |
|
|
Support IEEE802.3x flow control |
|
|
Support port name modification |
|
|
VLAN |
Support of 4K VLAN |
|
supports 802.1Q VLAN protocol |
|
|
Support VLAN based on port |
|
|
Quality of Service |
Support QoS Congestion Management |
|
Support 8 priority queues |
|
|
Queue scheduling: SP, WRR, SP+WRR |
|
|
Support 802.1p CoS/DSCP priority |
|
|
Multicast Management |
Support SNMPV1 / V2 / V3 protocols |
|
Support IGMP Snooping |
|
|
POE management |
Support Total Power Control |
|
Support PoE On Off |
|
|
Support single-port 30W output，Output port and priority |
|
|
Security Features |
Supports IP, MAC, port, VLAN binding combinations |
|
Support MAC address auto-learning, aging and filtration |
|
|
Support port isolation, port speed limit |
|
|
Support RSTP |
|
|
Support 5 groups of link aggregation |
|
|
Support 802.1X |
|
|
System Management |
Web-based GUI and CLI management |
|
Support FTP / TFTP / HTTP load upgrade |
|
|
Support traffic statistics |
|
|
Support MAC address table query |
|
|
Support IP address, DNS server modifications |
|
|
Support user name and password modification |
|
|
Support for history, log management |
|
|
Support System Configuration Backup |
|
|
Support to recover the default factory settings on reboot |
|
.jpg "16 ports managed switch")
|
Designation |
Quantity |
|
UTP7216E-POE-L2 |
1 |
|
AC Power Line |
1 |
|
Mounting brackets |
1 |
|
User Manual |
1 |
