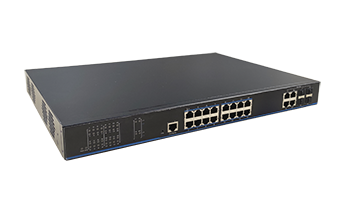

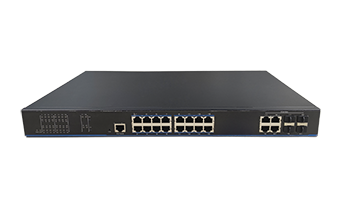

 16-Port Gigabit PoE+ 4-Port Gigabit Combo L2 Managed Ethernet Switch

16-Port Gigabit PoE+ 4-Port Gigabit Combo L2 Managed Ethernet Switch

UTP3320TS-PSB-L2
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product


OVERVIEW

The product of this series is 16-Port/24-Port Gigabit PoE+ 4-Port Gigabit Combo (RJ-45/SFP) L2 Managed Ethernet Switch.

This series switches provide 16/24*10/100/1000Mbps Ethernet RJ-45 ports, 4*100/1000Mbps combo (RJ-45/SFP) ports. It meets IEEE 802.3af/at standard. All downlink RJ-45 ports support Power-over-Ethernet (PoE+), which can deliver up to 30W power per port.

The switch has extensive L2 management functions, such as 802.1Q VLAN, ACL, LAG, loop detection and SNMP. It can be easily managed via a WEB GUI, or CLI (telnet/console).It is easy to use, Plug-and-Play, can be widely used in video security monitoring system, network project, etc.

This series contains three types:

• UTP3320TS-PSB-L2: 16-Port Gigabit PoE+ 4-Port Gigabit Combo L2 Managed Ethernet Switch

• UTP3328TS-PSB280-L2, UTP3328TS-PSB-L2: 24-Port Gigabit PoE+ 4-Port Gigabit Combo L2 Managed Ethernet Switch


FEATURES AND HIGHLIGHTS

Abundant Interfaces

• UTP3320TS-PSB-L2:

16*10/100/1000Base-T PoE+ RJ-45(Auto MDI/MDIX) ports

4*100/1000Mbps Combo (RJ-45/SFP)

1*RJ-45 Console

• UTP3328TS-PSB280-L2, UTP3328TS-PSB-L2:

24*10/100/1000Base-T PoE+ RJ-45(Auto MDI/MDIX) ports

4*100/1000Mbps Combo (RJ-45/SFP)

1*RJ-45 Console


Easy-to-use

• Plug-and-Play

• Manage via a WEB


Layer 2 Management Function

• 802.1Q VLAN

• ACL

• LAG

• IGMP Snooping

• SNMP



UTEPO full Gigabit L2 managed PoE switches provide 16/24 Gigabit RJ-45 ports, which offer a max 30W PoE per port complying with the standard of IEEE 802.3af/at. With abundant Layer 2 management functions, administrators can efficiently perform the necessary detection and control of the users of devices and applications connected to these network switches through WEB, CLI, & SNMP. In addition, the series switches could be widely used in video security surveillance systems and network projects.


KEY FEATURES



Smart PoE Technology

Complying with IEEE 802.3af/at standard, the switches provide 16/24 10/100/1000Base-T PoE+ RJ-45 ports, which offer a max 30W PoE per port to IP devices such as IP cameras, IP phones, APs, etc. The switches also provide 4*100/1000Mps Combo ports to extend the application, and users can flexibly set up the networking according to specific requirements.



>>PoE Watchdog

Detect PoE device when it is frozen, reboot it automatically.




Abundant L2 Management Function

The products support L2 management functions, such as PoE management, IPv4 static routing, 802.1Q VLAN, QoS, LAG, SNMP, etc.



>>PoE Scheduling

With PoE for your office, you can save energy during off-duty hours.



>>Recycling

You can set your device to reboot at any specified time through the PoE schedule to reduce the chance of a crash from buffer overflow.



>>LAG

You can use LAG (Link Aggregation Group) to build up multiple links between two switches to expand bandwidth. It can also provide link redundancy backup to minimize network failures when a link fails on one of the group's member ports.




Unparalleled Manageability

It can be managed securely and easily via the WEB management system, CLI (telnet /console), and SNMP.




Excellent Performance of Protection and Anti-interference

Support 4kV surge protection to ensure the stable operation.





APPLICATION



RELTAED MODELS


Items

UTP3320TS-PSB-L2

UTP3328TS-PSB280-L2

UTP3328TS-PSB-L2

Hardware Specifications

Downlink Port

16*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

24*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

Uplink Port

4*1000M Combo (RJ-45/SFP)

Console port

1*RJ-45

LED Indicators

1*PWR, power supply indicator
1*SYS, system working indicator
20*Link, port state indicators
16*PoE, port PoE state indicators

1*PWR, power supply indicator
1*SYS, system working indicator
28*Link, port state indicators
24*PoE, port PoE state indicators

Dimensions (W*D*H)

440mm*315mm*44mm

Input Voltage

100~240V AC, 50~60Hz

Power Consumption

≤280W (Full load including PoE)

≤450W (Full load including PoE)

Material

Metal shell

Installation

Rack/Desktop/Wall mounted

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at

Forwarding Modes

Store and Forward

MAC Table

8k, support auto learning

Switching Capacity

40Gbps/non-blocking

56Gbps/non-blocking

Packet Forwarding Rate

29.7Mpps

41.6Mpps

Jumbo Frame

9kB

Power Supply

PoE Standard

IEEE 802.3af/at

PoE Power Supply Type

End-span

PoE Pin Assignment

4/5(+), 7/8(-)

PoE Budget

30W max for each port, 250W max for whole switch

30W max for each port, 400W max for whole switch

Reliability

Surge

IEC61000-4-5, line to earth: 4kV

ESD

IEC61000-4-2, Level 3: Contact Discharge: +6kV, Air Discharge: +8kV

Operating

0℃~45℃, 10%~90% (Non-condensation)

Storage

-40℃~70℃, 5%~90% (Non-condensation)

Software Architecture

VLAN

Port-based VLAN, 802.1Q-based VLAN, Protocol-based VLAN, MAC-based VLAN, Multicast-based VLAN

Access mode, Trunk mode , Hybrid mode

Max. 4094 VLAN

QinQ

Basic QinQ, Flexible QinQ

Priority replication and mapping

MAC address copy

Layer 2 protocol transparent transmission

LACP

LACP mode, Manual mode

Each link aggregation group has no less than 8 ports, No less than 8 link aggregation groups per switch

LLDP

Support LLDP

Spanning Tree

STP, RSTP, MSTP

Loopback

Port based, VLAN-based

PoE

Port PoE configuration

PoE scheduled management

PoE Watchdog

Storm Control

Broadcast storm control, Multicast Storm Control, Unknown unicast storm control

QoS

Inbound speed limit, Outbound speed limit

Speed limit based on access contro

CoS-to-DSCP, DSCP-to-CoS, PQ, WRR, SP + WRR

ACL

MAC-based ACL, IPV4-based ACL, IPV6-based ACL, Protocol-based ACL

Security Feature

IP + port, MAC + port, IP + MAC, IP + MAC + port, IP + VLAN, MAC + VLAN, IP + MAC + VLAN, IP + MAC + VLAN + port

Port maximum MAC address learning control

DHCP snooping

IP source guard

Port Isolation

Support port isolation

Port Mirroring

One-to-one mirroring

Many-to-one mirroring

IGMP Snooping

IGMP snooping V1, V2, V3

Static Routing

Multiple interface VLANs

IPV4 static routing

IP Protocol

IPV4, IPV6

SNMP

Syslog

Telnet, ssh, http, https

DHCP server, DHCP client

AAA

Radius

TACACS+


Items

Quantity

Switch

1 pc

AC Power Cable

1 pc

Mounting Accessory

1 set

Quick Installation Guide

1 pc
