OVERVIEW

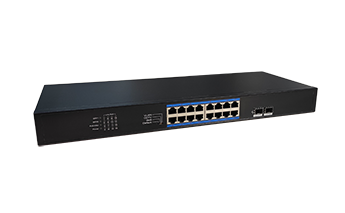

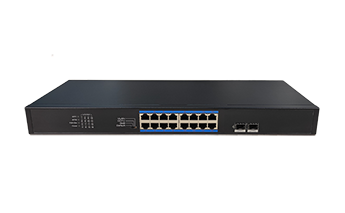

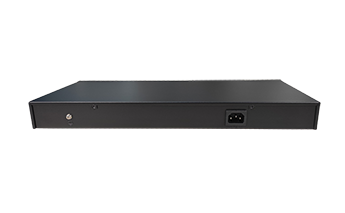

UTP3318S-PSB250-M0 provides 16*10/100/1000Mbps Ethernet RJ-45 ports, 2*Gigabit Ethernet SFP uplink ports. UTP3324S-PSB250-M0, UTP3324S-PSB410-M0 provide 24*10/100/1000Mbps Ethernet RJ-45 ports, 2*Gigabit Ethernet Combo (RJ-45/SFP) uplink ports.
This series switches support 4 working modes: default mode, QoS mode, CCTV mode and VLAN mode. It can be widely used in video security monitoring systems, network projects, etc.
This series contains three types:
• UTP3318S-PSB250-M0: 16-Port Gigabit PoE+ 2-Port Gigabit SFP Unmanaged Ethernet Switch
• UTP3324S-PSB250-M0, UTP3324S-PSB410-M0: 24-Port Gigabit PoE+ 2-Port Gigabit SFP Combo Unmanaged Ethernet Switch
FEATURES AND HIGHLIGHTS
Abundant Interface
• UTP3318S-PSB250-M0:
16*10/100/1000Base-T PoE+ RJ-45 ports (Auto MDI/MDIX)
2*1000Base-X SFP ports
• UTP3324S-PSB250-M0, UTP3324S-PSB410-M0:
24*10/100/1000Base-T PoE+ RJ-45 ports (Auto MDI/MDIX)
2*GE Combo Ports (SFP Port is prior to RJ-45 Port)
Default mode
• Switches in this mode can function as a core switch and all the ports can communicate with each other.
QoS mode
• UTP3318S-PSB250-M0 port 15, 16, SFP1 and SFP2 serve as uplink ports, ports 1-8 serve as high priority port. All ports can communicate with each other separately.
• UTP3324S-PSB250-M0, UTP3324S-PSB410-M0 port 23, 24, SFP1 and SFP2 serve as uplink ports, ports 1-8 serve as high priority port. All ports can communicate with each other separately.
CCTV mode
• UTP3318S-PSB250-M0 transmission distance of ports 9-14 is extended up to 250m, but the data rate is limited to 10Mbps.
• UTP3324S-PSB250-M0, UTP3324S-PSB410-M0 transmission distance of ports 17-22 is extended up to 250m, but the data rate is limited to 10Mbps.
VLAN mode
• UTP3318S-PSB250-M0 ports 1-14 are isolated from each other but able to communicate with ports 15, 16, SFP1 and SFP2.
• UTP3324S-PSB250-M0, UTP3324S-PSB410-M0 ports 1-22 are isolated from each other but able to communicate with ports 23, 24, SFP1 and SFP2.
The new-arrival UTEPO unmanaged PoE Switches provide 16/24 10/100/1000Base-T PoE+ ports with up to 30W PoE per port, and 2 1000Base-X SFP ports for a flexible extension. It eliminates the time and cost of deployment by integrating power and data switching into one unit and freeing network devices from restrictions of power outlet locations and the additional AC wiring. The switch also supports 4 working modes through the DIP switch (Default, QoS, VLAN, and CCTV), which provides more performance choices for different networking demands. It can be widely used in video security monitoring systems, network projects, etc.
● PoE Provides Centralized Power Management
Providing 16/24 10/100/1000Base-T PoE+ ports, the switches support a max 30W PoE power per port and supply power to IP camera, AP, etc., in a reliable, stable, and eco-friendly way. All the power would be sent from the back end (PoE switch). What you need to do is to add the UPS power next to your PoE switch. When the power is cut off, the UPS power will take over and continue to supply the power to the whole system.
● Flexible Extension with SFP Port
The series provides two Gigabit Uplink SFP ports, which can be uplinked to the backbone switch and monitoring center over long distances. The distance can be extended over 550 meters or more (according to the performance of the SFP module). They are well-suited for applications within enterprise data centers and distributions.
● 4 Working Modes
The switches support 4 working modes (Default, QoS, CCTV, VLAN)
Default
All ports could be able to communicate with each other. In this mode, the switch can function as the core switch in small-scale networking.
QoS
In this mode, ports 1-8 are high-priority ports. When congestion occurs in the data forwarded by the switch, the data on the high-priority ports will be forwarded out first, thus guaranteeing stable transmission of video and data from the key locations without interruption or lag. Meanwhile, the SFP ports serve as the Uplink ports in this mode.
CCTV
The transmission distance of the specific RJ-45 ports (Ports 9-14 of UTP3318S-PSB250-M0, ports 17-22 of UTP3324S-PSB250-M0 & UTP3324S-PSB410-M0) is extended up to 250 meters with the limited rate of 10Mbps.
VLAN
The RJ-45 ports are isolated from each other but can communicate with the SFP ports. To a certain extent, it suppresses broadcast storms and improves network security.
● Excellent Performance of Protection and Anti-interference
Support 6kV surge protection to ensure stable operation.
|
Items |
UTP3318S-PSB250-M0 |
UTP3324S-PSB250-M0 |
UTP3324S-PSB410-M0 |
|
Hardware Specifications |
|||
|
Downlink Port |
16*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X) |
24*10/100/1000Base-T PoE+ RJ-45(Auto-MDI/MDI-X) |
|
|
Uplink Port |
2*1000Base-X SFP |
2*GE Combo Ports(SFP Port is prior to RJ-45 Port) |
|
|
Led Indicators |
1*Power, power supply indicator |
||
|
1*PoE-Max, PoE power indicator |
|||
|
16*Link/Act, port state indicators |
24*Link/Act, port state indicators |
||
|
2*SFP port state indicators |
|||
|
Dimensions (W*D*H) |
440mm*178.8mm*44mm |
440mm*284mm*44mm |
|
|
Input Voltage |
100~240V AC, 50~60Hz |
||
|
Power Consumption |
≤250W (Full load including PoE) |
≤410W (Full load including PoE) |
|
|
Material |
Metal shell |
||
|
Installation |
Rack/Desktop/Wall mounted |
||
|
Switch Property |
|||
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
||
|
Forwarding Modes |
Store and Forward |
||
|
MAC Table |
8k, support auto learning |
||
|
Switching Capacity |
128Gbps / non-blocking |
156Gbps / non-blocking |
|
|
Power Supply |
|||
|
PoE Standard |
IEEE 802.3af/at |
||
|
PoE Power Supply Type |
End-span |
||
|
PoE Pin Assignment |
1/2/4/5(+), 3/6/7/8(-) |
||
|
PoE Budget |
30W max for each port, 230W max for whole switch |
30W max for each port, 370W max for whole switch |
|
|
Reliability |
|||
|
Port Lightning Protection |
6kV |
||
|
Operating |
-10℃~50℃, 10%~90% (Non-condensation) |
||
|
Storage |
-40℃~70℃, 5%~90% (Non-condensation) |
||
|
Features |
|||
|
Switch Mode |
Default mode: |
||
|
Items |
Quantity |
|
Switch |
1 pc |
|
AC Power Cable |
1 pc |
|
Mounting Accessory |
1 set |
|
User Manual |
1 pc |
