OVERVIEW

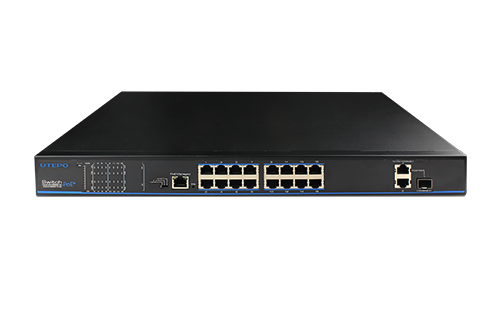

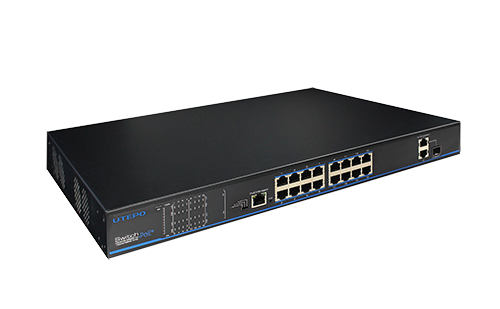

UTP3218TS-PSB provides 16 100M Ethernet RJ-45 downlink ports, 2 Gigabit Ethernet RJ-45 uplink ports and 1 Gigabit combo SFP uplink port. All RJ-45 downlink ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port. The PoE function can be easily managed via a WEB GUI (http/https).
The switch supports 3 working modes through DIP switch: Default, VLAN and CCTV. Under VLAN and CCTV mode, it supports PoE watchdog features, which can detect and restart the camera automatically if it's frozen. It can be widely used in video security monitoring systems, network projects, etc.
FEATURES AND HIGHLIGHTS
Abundant Interfaces
• 16*10/100Base-TX PoE RJ-45 ports
• 2*10/100/1000Base-T RJ-45 ports
• 1*1000 Base-X combo SFP port
• 1*PoE management port
Power over Ethernet (PoE+)
• Power up to 16 devices that comply with IEEE 802.3af/at standards
• Each PoE port supports a maximum power of 30W
• Circuit protection to prevent the power from interfering with the port
• Long-distance power supply, up to 250 meters
• Support PoE watchdog under VLAN and CCTV mode
PoE management
• Support Total Power Consumption Control
• Support PoE ON/OFF
• Support Single Port 30W max. Power Change and Port Output Priority
Support 3 Working Modes through DIP switch
• Default: all ports are free to communicate, transmission distance: 0~100m.
• VLAN: downlink ports are isolated from each other, but can communicate with uplink ports. Transmission distance: 0~100m. This mode supports PoE watchdog.
• CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.
High Performance Design
• 6kV surge immunity
• 6kV contact discharge, 8kV air discharge ESD protection
• Metal shell design
• Rack/Desktop/wall mounted installation
The new-arrival UTEPO PoE Switches (UTP3218TS-PSB, UTP3226TS-PSB) provide 16/24 100M Ethernet RJ-45 downlink ports with up to 30W PoE per port, and 2 Gigabit Ethernet RJ-45 uplink ports and 1 Gigabit combo SFP uplink port for a flexible extension. The switch supports 3 working modes through DIP switch (Default, VLAN and CCTV). Under VLAN and CCTV mode, it supports PoE watchdog, which can detect and restart the camera automatically if it's frozen. It can be widely used in video security monitoring systems, network projects, etc.
|
Features |
● PoE provides centralized power management
The switches provide 16/24 PoE ports and align with standard of IEEE 802.3af/at, of which the total PoE budgets are up to 270W/390W. All the power would be sent from the back-end (PoE switch). What you need to do is to add the UPS power next to your PoE switch. When the power is cut off, the UPS power will take over and continue to supply the power to the whole system.
● PoE management
This series comes with a PoE-managed port. You can access the PoE switches by connecting to this port. Then you can set total power consumption, PoE ON/OFF, PoE power value, and port output priority.
● Flexible extension with SFP slot
The series provides two gigabit Uplink ports with one 1000 Base-X combo SFP slot, which can be uplinked to the backbone switch and monitoring center over long distance. The distance can be extended over 550 meters or more (according to the performance of the SFP module). They are well suited for applications within enterprise data centers and distributions.
● Support three working modes
The switches provide three working modes (Default, VLAN, CCTV), switching through the built-in DIP switch. Plus excellent troubleshooting function (PoE watchdog) to monitor the network anytime you need.
<< << Default
All ports are free to communicate, transmission distance: 0~100m.
<< << VLAN
Downlink ports are isolated from each other but can communicate with Uplink ports. Transmission distance: 0~100m. This mode supports PoE watchdog.
<< << CCTV
The transmission distance is extended up to 250 meters but the rate is limited to 10Mbps. This mode supports PoE watchdog.
● Robust protection
The switches provide 6kV contact discharge and 8kV air discharge ESD protection. They also support 6kV surge immunity to improve product stability and protect users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
|
Application |
|
Specification |
.jpg "16 ports poe switch")
.jpg "24 ports poe switch")
|
Items |
UTP3218TS-PSB |
UTP3226TS-PSB |
|
Hardware Specifications |
||
|
Downlink Ports |
16*10/100 Base-TX PoE RJ-45 (Auto-MDI/MDI-X) |
24*10/100 Base-TX PoE RJ-45(Auto-MDI/MDI-X) |
|
Uplink Ports |
2*10/100/1000 Base-T RJ-45, 1*1000 Base-X SFP (combo) |
|
|
PoE management port |
1* RJ-45 |
|
|
Led Indicators |
1*PWR Indicator |
1*PWR Indicator |
|
Cable |
Cat5 or better |
|
|
Dimensions (W*D*H) |
442mm*285mm*44mm |
|
|
Net Weight |
3.8kg |
4.1kg |
|
Input Voltage |
100~240V AC |
|
|
Power Consumption |
≤300W (Full load including PoE) |
≤420W (Full load including PoE) |
|
Installation |
Rack/desktop/wall mounted |
|
|
Material |
Metal shell |
|
|
Switch Property |
||
|
Forwarding Modes |
Store and Forward |
|
|
Switching Capacity |
7.2Gbps / non-blocking |
8.8Gbps / non-blocking |
|
Packet Forwarding Rate |
5.4Mpps |
|
|
MAC Table |
4k |
|
|
Packet Buffer |
2.75Mbit |
|
|
PoE |
||
|
PoE Power Supply Type |
End-Span |
|
|
PoE Standard |
IEEE 802.3af/at (PSE) |
|
|
PoE Pin Assignment |
1/2(+), 3/6(-) |
|
|
PoE Power Output |
46~55V DC |
|
|
PoE Budget |
30W max for each port, 270W max |
30W max for each port, 390W max |
|
Standard Conformance |
||
|
Standards Compliance |
IEEE 802.3 Ethernet |
|
|
EMC |
||
|
EMC |
FCC 47 CFR Part 15 Class A |
|
|
LVD |
||
|
LVD |
EN 62368-1:2014 |
|
|
Environments |
||
|
Operating |
Temperature: -10℃~50℃ |
|
|
Storage |
Temperature: -40℃~75℃ |
|
|
Certifications |
||
|
Certifications |
CE, FCC |
|
|
Software Specifications |
||
|
PoE Management |
PoE Setting |
|
|
Items |
Quantity |
|
Switch |
1 pc |
|
AC Power Cable |
1 pc |
|
Mounting Accessory |
1 set |
|
Quick Installation Guide |
1 pc |
