 Ethernet Extender(Off Production)

Ethernet Extender(Off Production)

UTP3-VEOC01
  •  $row.goods_name
  •  $row.goods_name
  •  $row.goods_name
  • Description
  • Specifications
  • Dimensions
  • Applications
  • Package
  • Download
  • Related Video
  • Related Product

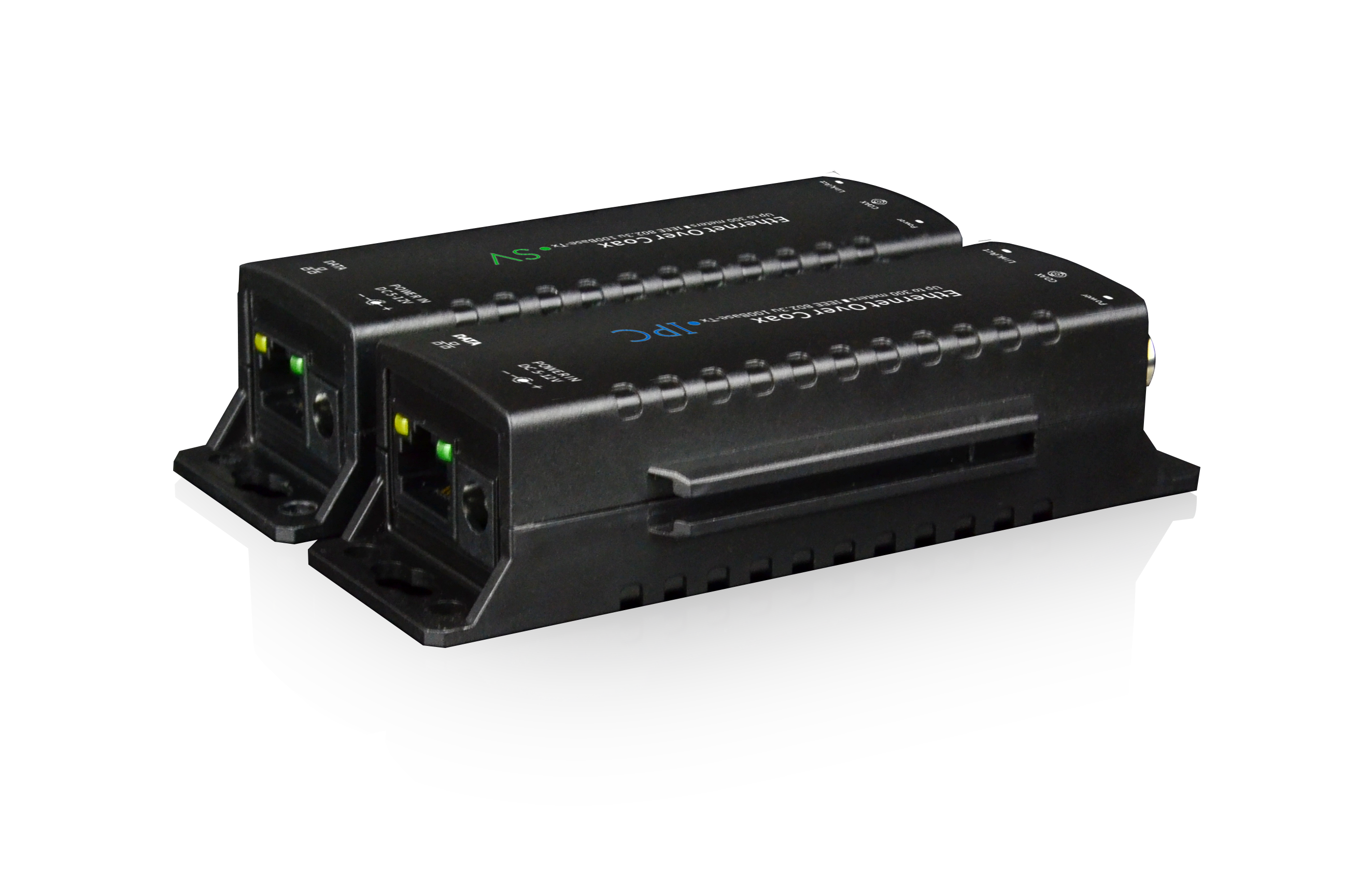

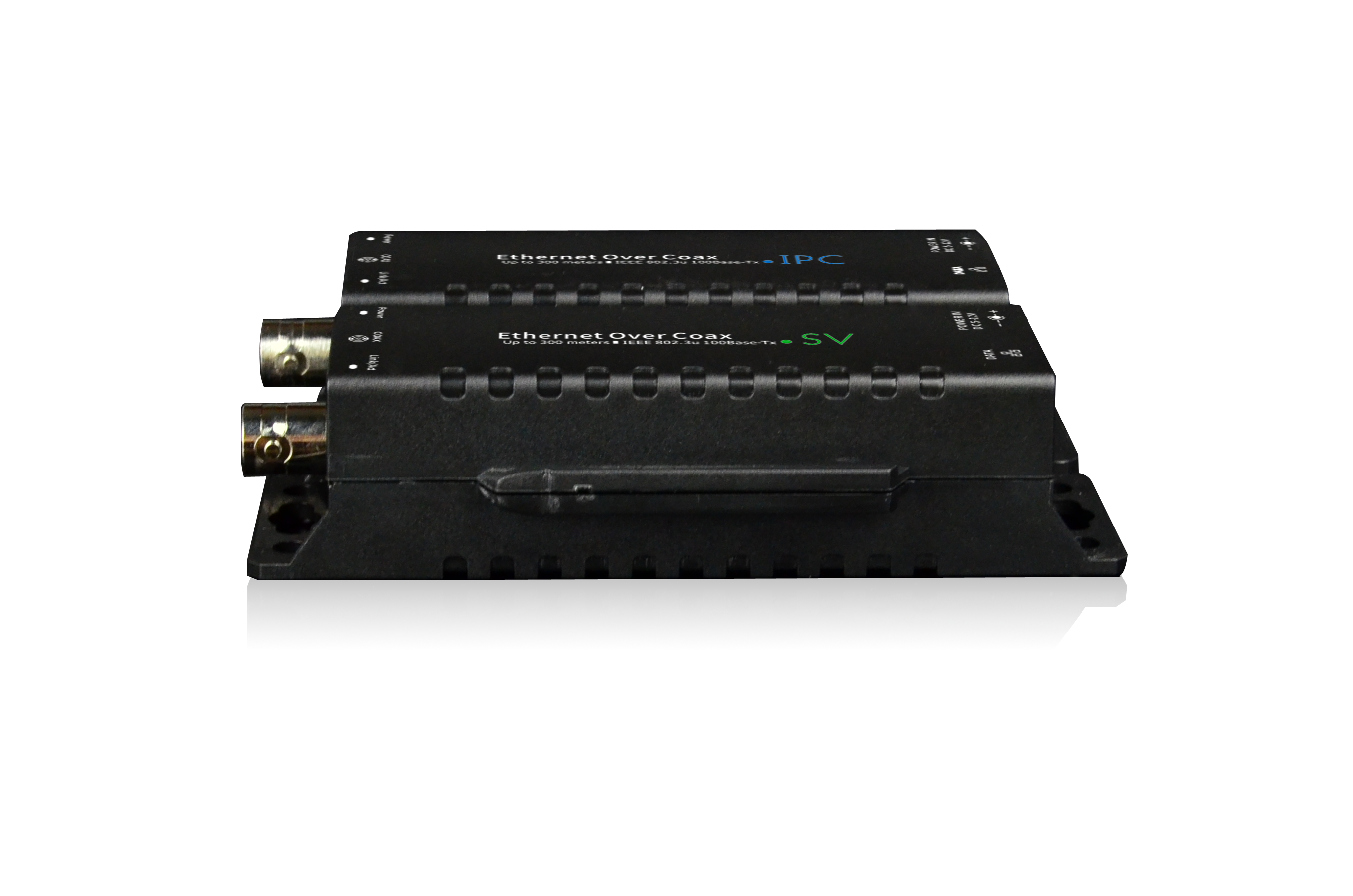

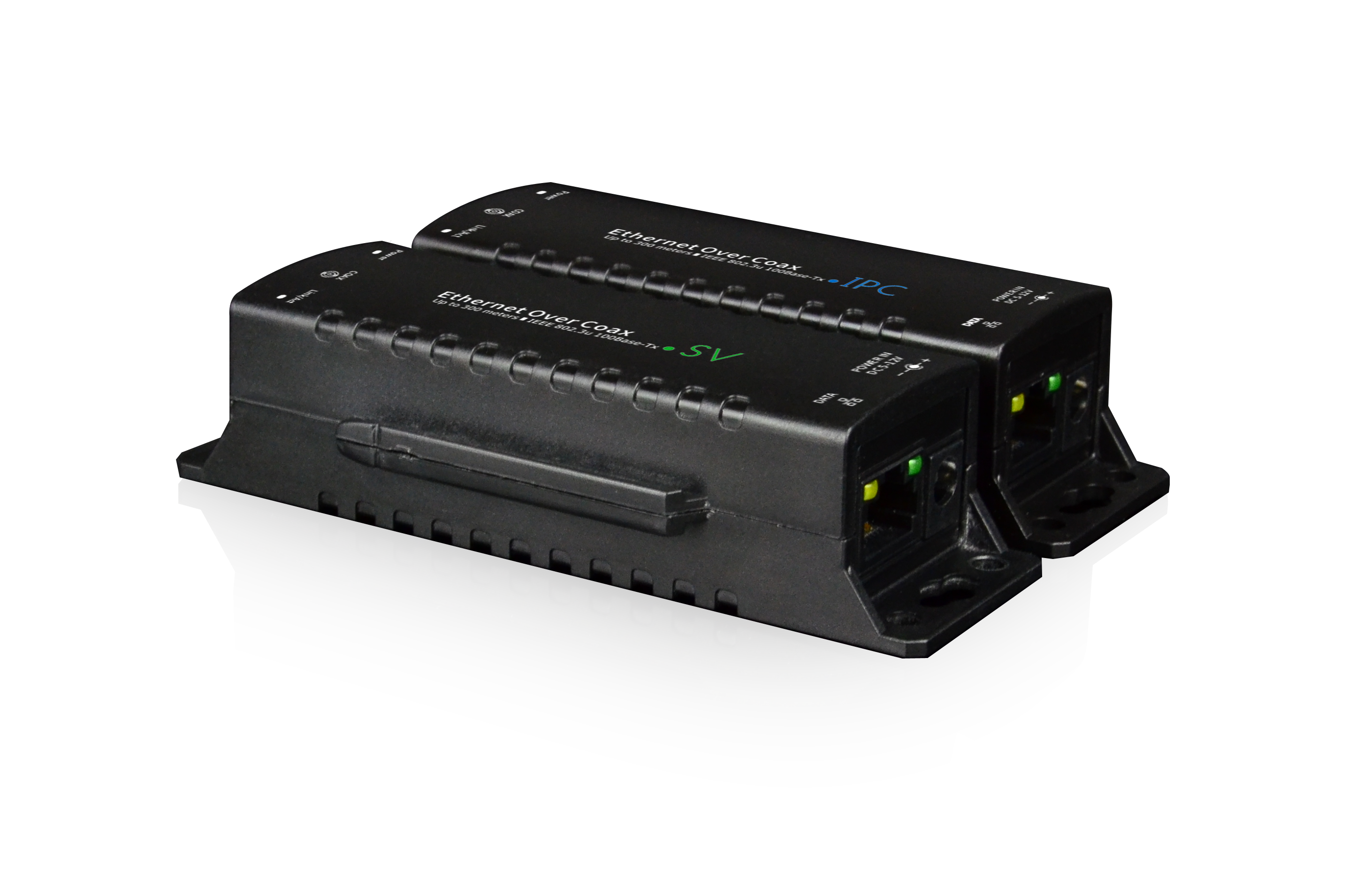

The product is an Ethernet extender which can transfer Ethernet signal by  Ethernet cable or  coaxial cable. It consists of SV and IPC units. This product is specially designed to meet  the long-distance HD IP transmission for security surveillance projects. This device can transfer the Ethernet signal up to 300m through the coaxial cable, But network latency is less than 20us.The structure designing of built-in splicing slot on both sides and  magnetic attraction as well as hanger on the bottom enables multiple installation methods of wall-mounting,splicing and absorption. So it is a cost-effective choice for the HD network surveillance system, transmission and application of the IOT, as well as upgrading and renovating  projects.


Model

UTP3-VEOC01

Network Port

1* 10/100Base-Tx

Coaxial Port

1*BNC

Transmission Media

RG 59 or above coaxial cable & Cat5e/6

Transmission Distance

Ethernet cable: 0~100m

Coaxial cable: 0-300m(Recommend)

Standard and Protocols

IEEE802.3, IEEE802.3u

Delay

20us

Surge Immunity

2KV  Execute: IEC61000-4-5

ESD Immunity

6KV Contact discharge

8KV  Air discharge

Execute: IEC61000-4-2

Input Voltage

DC 5V~12V

Power Consumption

2W

Operating Temperature

-10℃~55℃

Storage Temperature

-40℃~85℃

Humidity(Non-condensing)

5%-95%

DimensionL×W×H

113mm×45.5mm×29mm

Weight

50g

Certification

CE, FCC, ROHS


Ethernet extender

Designation

Quantity

UTP3-VEoC01 (IPC Unit Device)

1

UTP3-VEoC01 (IPC Unit Device)

1

Power Adapter

2

User Manual

1
