OVERVIEW

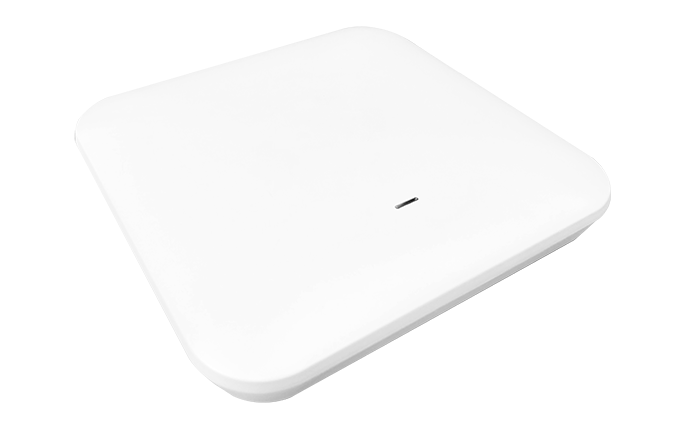

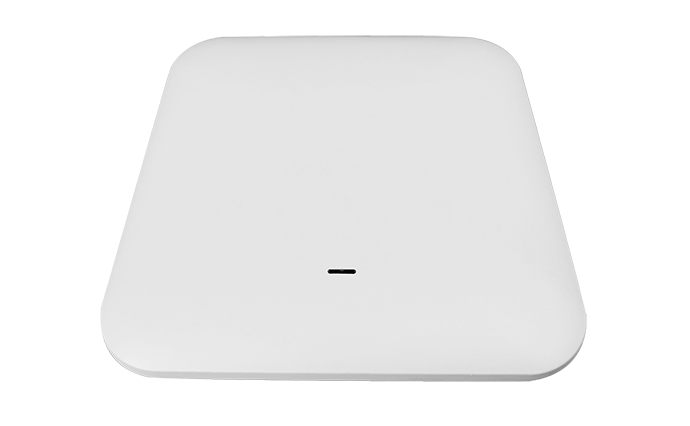

Indoor Ceiling Wireless Access Point is 2.4GHz + 5GHz dual band AP. It realizes a high bandwidth network capacity. The high-gain RF antenna design helps maintain the quality of Wi-Fi signal even over a long distance, so that wireless clients and AP can work under the high-performance. It is a perfect choice for such as office and hotel to deploy wireless networks.
FEATURES AND HIGHTLIGHTS
Dual-band & High Bandwidth
● UAP3302-1200: 2.4GHz up to 300Mbps, 5G up to 867Mbps
● UAP3302-1800: 2.4GHz up to 574Mbps, 5G up to 1201Mbps
High Gain Antenna
● 2.4GHz 4.6dBi Gain 2*2MIMO antenna
● 5GHz 4dBi Gain 2*2MIMO antenna
Professional Design
● Working temperature: -30~45°C
● IP65
● 6kV contact discharge, 8kV air discharge ESD protection.
Easy-to-use
● IEEE 802.3af/at Supported, easy installation and deployment
|
Item |
UAP3302-1200 |
UAP3302-1800 |
|
Hardware Specifications |
||
|

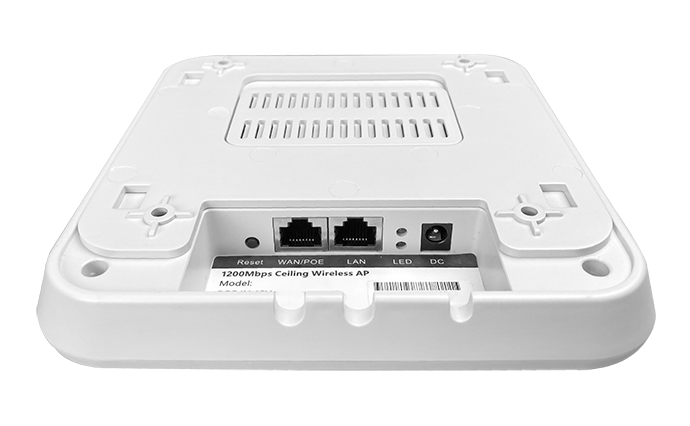

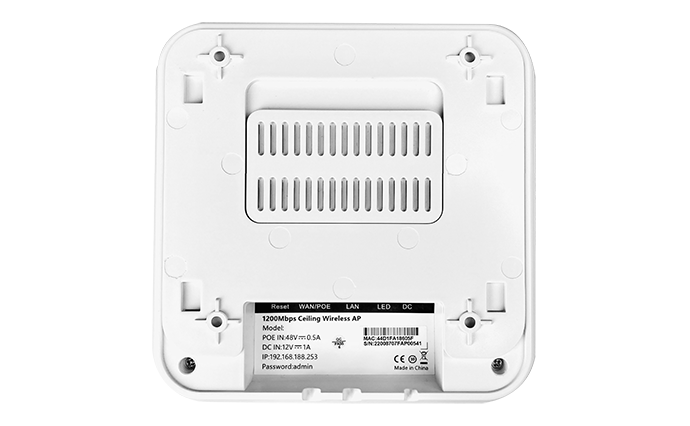

Ethernet Port |
1*10/100/1000BASE-T PoE RJ-45 WAN(Auto-MDI/MDI-X) |
|
|
1*10/100/1000BASE-T RJ-45 LAN(Auto-MDI/MDI-X) |
||
|
Power Method |
IEEE 802.3af PoE or 12V, 1A DC |
|
|
Frequency Range |
2.412 GHz~2.484GHz, 5.150GHz~5.850GHz |
|
|
Compliant Standards |
IEEE 802.11b/g/n, IEEE 802.11a/n/ac |
|
|
Antenna Gain |
2.4GHz:4.6dBi, 5GHz: 4dBi |
|
|
Maximum Wireless Rate |
2.4GHz up to 300Mbps, 5G up to 867Mbps |
|
|
Flash |
8MB |
|
|
RAM |
128MB |
|
|
LED Indicator |
1*LAN port status indicator |
|
|
1*WAN port status indicator |
||
|
1*SYS & 2.4G & 5G status three color indicator |
||
|
Reset Button |
Long press >6s to initialize the system |
|
|
Dimensions (L*W*H) |
168mm*168 mm*32 mm |
|
|
Power Consumption |
<11W |
|
|
Reliability |
||
|
ESD |
IEC61000-4-2, Level 3: Contact Discharge: ±6kV, Air Discharge: ±8kV |
|
|
Surge |
IEC61000-4-5, line to line:1kV |
|
|
Protection |
IP65 |
|
|
Operating |
-30°C to 45°C, 5%~95% (Non-condensation) |
|
|
Storage |
-40°C to 70°C, 5%~95% (Non-condensation) |
|
|
Software Architecture |
||
|
Operation Mode |
Wireless AP |
|
|
Gateway: Dynamic IP/Static IP/PPPoE |
||
|
Wireless Functions |
2.4GHz Multiple SSID: 4 |
|
|
5GHz Multiple SSID: 4 |
||
|
Support SSID hidden |
||
|
Support SSID broadcast |
||
|
Support 5G Prior for a faster Ethernet. |
||
|
Wireless Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK |
||
|
Support MAC filter |
||
|
Support Wi-Fi time on/off to save energy |
||
|
Support client isolation to improve the wireless stability |
||
|
Support RF power adjustable, adjust the RF power based on environment. |
||
|
Short GI Enable and Disable |
||
|
Support user quantity limited, Max 128 users to access each band. |
||
|
Networking Function |
VLAN settings |
|
|
Device Management |
Back-up the configuration |
|
|
Restore the configuration |
||
|
Reset to factory default |
||
|
Reboot the device: including time reboot or reboot immediately |
||
|
Admin management password modify |
||
|
Firmware upgrade |
||
|
System log |
||
|
Support firmware GUI web management, AC controller management |
||
|
Protocols |
IPv4 |
|
|
RF Parameters |
|||||
|
UAP3302-1200 |
|||||
|
2.4G Wireless Power |
802.11b |
11M |
18±2dBm |
1M |
20±2dBm |
|
802.11g |
54M |
17±2dBm |
6M |
19±2dBm |
|
|
802.11n HT20 |
MCS7 |
16±2dBm |
MCS0 |
18±2dBm |
|
|
802.11n HT40 |
MCS7 |
15±2dBm |
MCS0 |
17±2dBm |
|
|
5G Wireless Power |
802.11a |
54M |
20±2dBm |
6M |
22±2dBm |
|
802.11n HT20 |
MCS7 |
19±2dBm |
MCS0 |
21±2dBm |
|
|
802.11n HT40 |
MCS7 |
18±2dBm |
MCS0 |
20±2dBm |
|
|
802.11AC |
MCS9 |
17±2dBm |
MCS0 |
19±2dBm |
|
|
2.4G Receiver Sensitivity |
802.11b |
11M |
-85dBm |
1M |
-94dBm |
|
802.11g |
54M |
-72dBm |
6M |
-90dBm |
|
|
802.11n HT20 |
MCS7 |
-70dBm |
MCS0 |
-88dBm |
|
|
802.11n HT40 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
|
|
5G Receiver Sensitivity |
802.11a |
54M |
-72dBm |
6M |
-90dBm |
|
802.11n HT20 |
MCS7 |
-70dBm |
MCS0 |
-88dBm |
|
|
802.11n HT40 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
|
|
802.11ac VHT80 |
MCS9 |
-58dBm |
MCS0 |
-85dBm |
|
|
2.4G EVM |
802.11b: ≤-10 dB, 802.11g: ≤-25 dB, 802.11n: ≤-28 dB |
||||
|
5G EVM |
802.11a: ≤-25 dB, 802.11n: ≤-28 dB, 802.11ac: ≤-32 dB |
||||
|
UAP3302-1800 |
|||||
|
2.4G Wireless Power |
802.11b |
11M |
22±2dBm |
1M |
23±2dBm |
|
802.11g |
54M |
19±2dBm |
6M |
20±2dBm |
|
|
802.11n HT20 |
MCS7 |
18±2dBm |
MCS0 |
19±2dBm |
|
|
802.11n HT40 |
MCS7 |
18±2dBm |
MCS0 |
19±2dBm |
|
|
802.11ax HT20 |
MCS11 |
15±2dBm |
MCS0 |
16±2dBm |
|
|
802.11ax HT40 |
MCS11 |
15±2dBm |
MCS0 |
16±2dBm |
|
|
5G Wireless Power |
802.11a |
54M |
18±2dBm |
6M |
19±2dBm |
|
802.11n HT20 |
MCS7 |
17±2dBm |
MCS0 |
18±2dBm |
|
|
802.11n HT40 |
MCS7 |
17±2dBm |
MCS0 |
18±2dBm |
|
|
802.11ac HT20 |
MCS7 |
17±2dBm |
MCS0 |
18±2dBm |
|
|
802.11ac HT40 |
MCS7 |
16±2dBm |
MCS0 |
17±2dBm |
|
|
802.11ac HT80 |
MCS9 |
16±2dBm |
MCS0 |
17±2dBm |
|
|
802.11ax HT20 |
MCS11 |
15±2dBm |
MCS0 |
16±2dBm |
|
|
802.11ax HT40 |
MCS11 |
15±2dBm |
MCS0 |
16±2dBm |
|
|
802.11ax HT80 |
MCS11 |
15±2dBm |
MCS0 |
16±2dBm |
|
|
2.4G Receiver Sensitivity |
802.11b |
11M |
-85dBm |
1M |
-92dBm |
|
802.11g |
54M |
-72dBm |
6M |
-90dBm |
|
|
802.11n HT20 |
MCS7 |
-70dBm |
MCS0 |
-88dBm |
|
|
802.11n HT40 |
MCS7 |
-68dBm |
MCS0 |
-86dBm |
|
|
802.11ax HT20 |
MCS11 |
-60dBm |
MCS0 |
-85dBm |
|
|
802.11ax HT40 |
MCS11 |
-56dBm |
MCS0 |
-85dBm |
|
|
5G Receiver Sensitivity |
802.11a |
54M |
-72dBm |
6M |
-92dBm |
|
802.11n HT20 |
MCS7 |
-70dBm |
MCS0 |
-90dBm |
|
|
802.11n HT40 |
MCS7 |
-68dBm |
MCS0 |
-88dBm |
|
|
802.11ac HT20 |
MCS7 |
-70dBm |
MCS0 |
-90dBm |
|
|
802.11ac HT40 |
MCS7 |
-68dBm |
MCS0 |
-88dBm |
|
|
802.11ac HT80 |
MCS9 |
-58dBm |
MCS0 |
-85dBm |
|
|
802.11ax HT20 |
MCS11 |
-62dBm |
MCS0 |
-88dBm |
|
|
802.11ax HT40 |
MCS11 |
-58dBm |
MCS0 |
-86dBm |
|
|
802.11ax HT80 |
MCS11 |
-55dBm |
MCS0 |
-84dBm |
|
|
2.4G EVM |
802.11b:≤-10 dB, 802.11g:≤-25 dB, 802.11n:≤-28dB, 802.11ax: ≤-35 dB |
||||
|
5G EVM |
802.11a:≤-25 dB, 802.11n:≤-28 dB, 802.11ac:≤-32 dB, 802.11ax:≤-35 dB |
||||
|
Items |
Quantity |
|
Outdoor CPE |
1 pair |
|
Power Adapter |
2 pc |
|
Power Cable |
2 pc |
|
Mounting Accessory |
1 set |
|
Ethernet Cable |
2 pc |
|
Quick Installation Guide |
1 pc |
